TOKEN Shuriken TK1759XS Oversized Pulley System for SRAM Red & Force AXS 12-Speed
SKU code: FES-ERD1759XS-TBT-BKTK

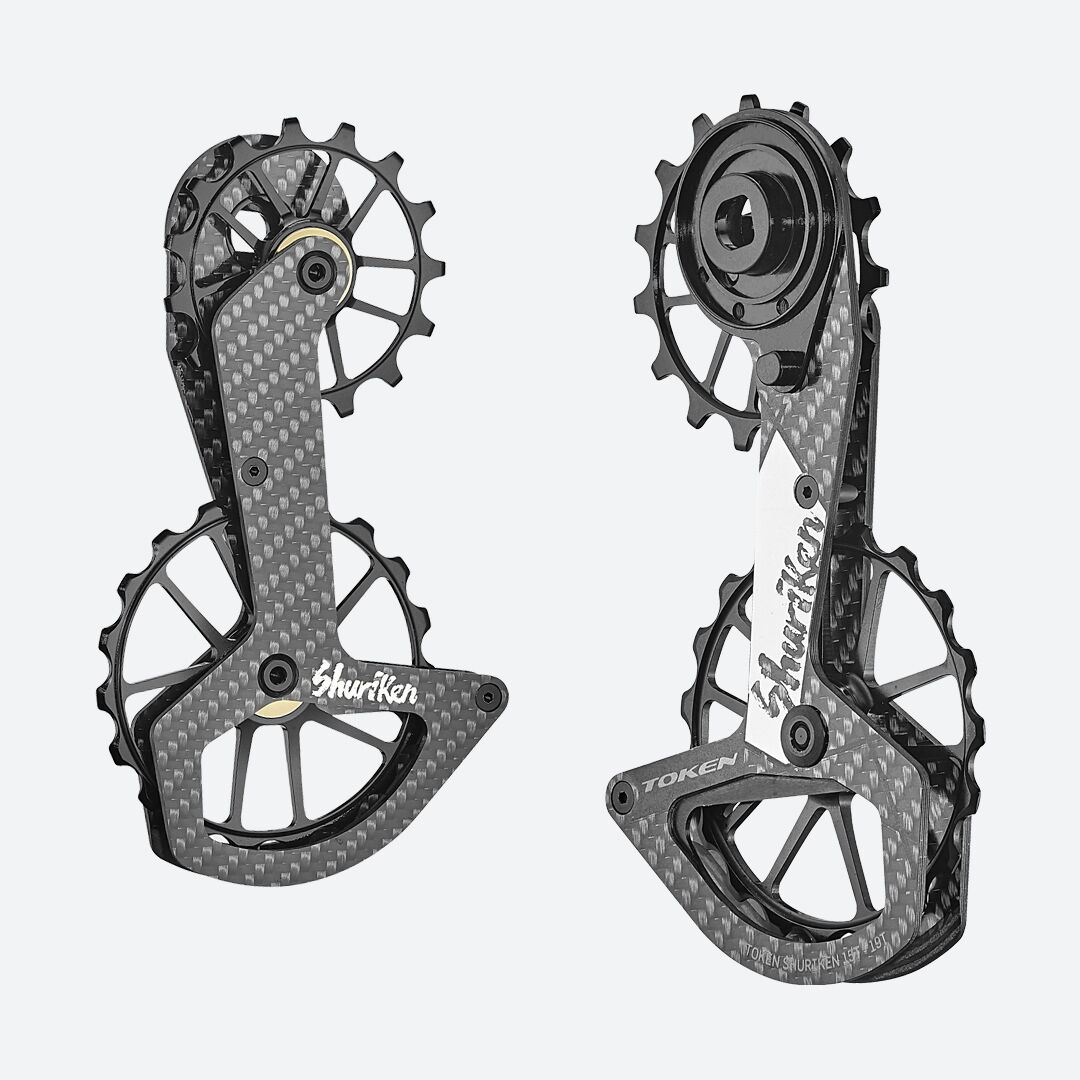

The Shuriken TK1759XS replaces the cage and pulleys on SRAM Red and Force AXS road derailleurs with a 15T/19T oversized set in a 3K carbon cage. The chain bends less and runs with less friction.
Highlights
- 15T upper / 19T lower aluminium pulleys with titanium coating
- TBT ceramic bearings
- Matte 3K carbon cage plates
- Conti-Wave tooth profile on the lower pulley
- 61 g per set
- Five-year TOKEN warranty on Shuriken oversized pulley systems
Conti-Wave tooth profile
Conti-Wave machining puts a continuous chamfer on the tooth edges, cutting the contact area between the teeth and the chain's inner plates by 82.5%. On the lower pulley, where the chain arrives at changing angles, that keeps engagement smooth and chain noise down in every gear.
Installation
Installation needs a 9 mm chainring nut wrench (Shimano TL-FC21 or Super B TB-6715).
Compatibility & fit
Compatible SRAM 12-speed rear derailleurs, as listed by TOKEN:
- Road Red 12s: RD-RED-E-E1 and RD-RED-E-D1
- Road Force 12s: RD-FRC-E-D1 / D2
- Gravel Red 12s: RD-RED1-E-D1
Drivetrain capacity 13T (chainring) + 26T (cassette); largest cog 36T. TOKEN notes it's made for the standard road AXS derailleurs; fitted to an XPLR derailleur, cassette compatibility will be limited.
Check chain length after fitting: correct chain length matters for drivetrain performance and stability, so follow the chain and drivetrain manufacturer's sizing guidance. A small derailleur adjustment may be needed, so check shifting before your first ride.
Pulley fitting and derailleur adjustment are a separate workshop service and aren't included in the price.
TOKEN warrants this product against defects in materials or workmanship for five years from the original date of purchase, for the original purchaser with dated proof of purchase. Normal wear and tear, bearings (unless unused), and damage from incorrect installation, modification, neglect or improper maintenance are not covered; TOKEN repairs or replaces a defective product at its discretion. This is in addition to your rights under the Australian Consumer Law.
For warranty support, return the product to Tune Cycles and we'll manage the claim with TOKEN's Australian distributor.
- Oversized 15T/19T pulleys for lower friction
- TBT ceramic bearings
- Matte 3K carbon cage
- Conti-Wave lower pulley for quiet running
- Fits SRAM Red and Force AXS 12s road, plus Gravel Red 12s RD-RED1-E-D1
- Five-year TOKEN warranty
| Product code | TK1759XS |
|---|---|
| Pulley teeth | Upper 15T, lower 19T |
| Bearings | TBT (ceramic) |
| Derailleur brand | SRAM 12-speed |
| Rear derailleur compatibility | Road Red 12s (RD-RED-E-E1, RD-RED-E-D1), Road Force 12s (RD-FRC-E-D1/D2), Gravel Red 12s (RD-RED1-E-D1) |
| Drivetrain capacity | 13T (chainring) + 26T (cassette) |
| Largest cog | 36T |
| Cage plate material | Matte 3K carbon |
| Pulley material | Aluminium with titanium coating |
| Weight | 61 g per set |
| Installation tool | 9 mm chainring nut wrench (Shimano TL-FC21 or Super B TB-6715) |
| SKU | FES-ERD1759XS-TBT-BKTK |
| Brand | TOKEN |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
