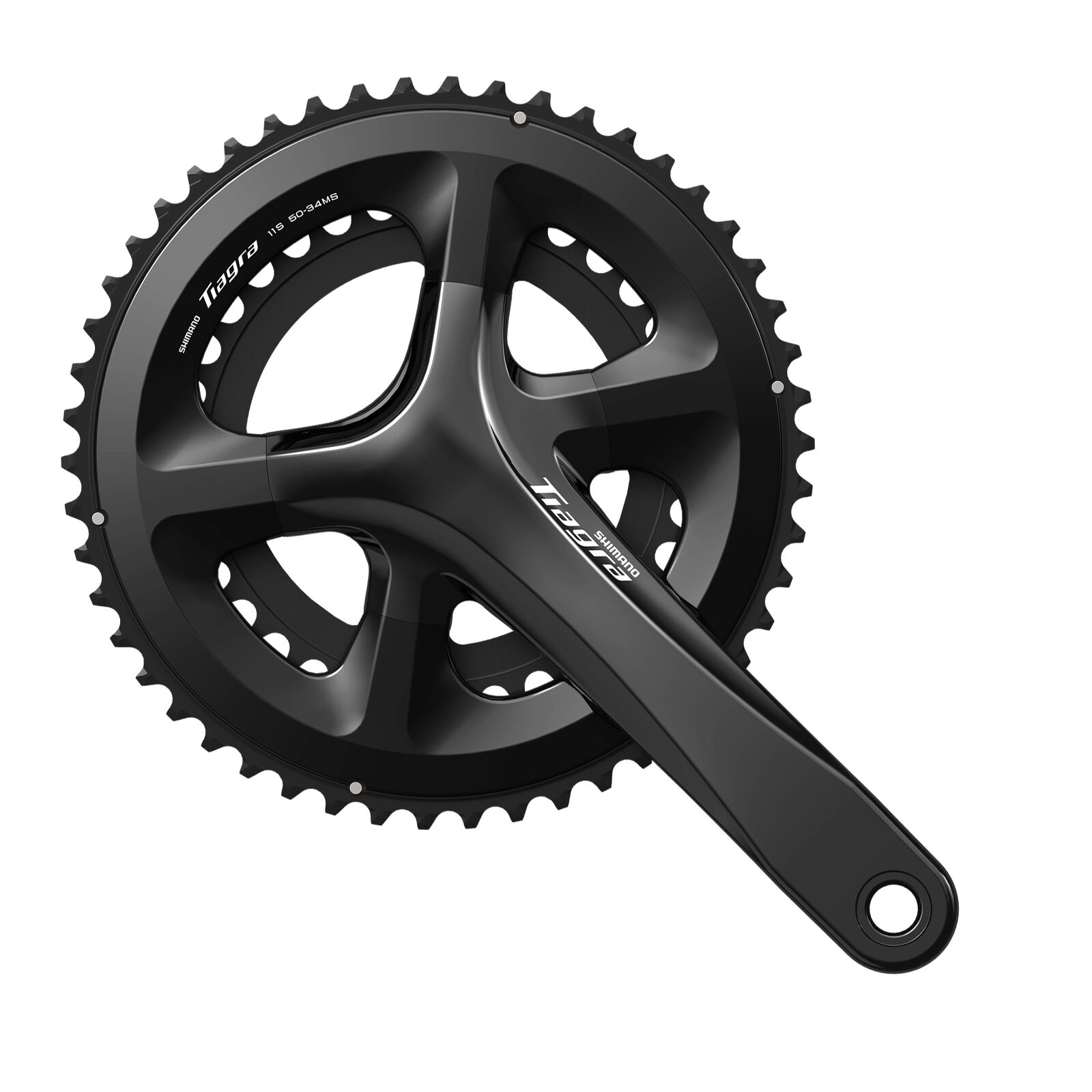

Trickle-down technology from Shimano's premium road range, the Tiagra FC-R4000 brings Hollowtech II construction and crisp 11-speed shifting to riders looking for a reliable, efficient road crankset at an accessible price. Whether you're building a first road bike or upgrading from an older groupset, it delivers the stiffness and front-shift feel you'd expect from a Shimano-designed system.

Highlights

• Hollowtech II 2-piece design: integrated right crank arm and axle eliminate flex and put more of your power to the road.
• Compact 50-34T gearing: versatile range suits climbing, flat roads and long endurance days equally well.
• Wide outboard bearing positioning: increases bottom bracket stiffness and reduces side-load on the bearings for long-term durability.
• 11-speed chainring profiling: ramp and pin shaping carries the chain quickly and quietly between rings for dependable front shifts.
• 170mm crank arm length: a common fit for a wide range of rider heights and leg lengths.
• Inherits Shimano high-end DNA: engineering principles shared with 105, Ultegra and Dura-Ace trickle down to the Tiagra level.

Hollowtech II construction

The right crank arm and spindle are forged and bonded into a single hollow unit, creating a structure that is both light and extremely rigid. The left arm clicks onto the spindle via Shimano's self-extracting fixing bolt system for straightforward installation. Outboard bearings — housed in the bottom bracket cups rather than the frame shell — are set as far apart as possible, maximising the lateral stiffness of the whole drivetrain.

Smooth, reliable front shifting

Shimano's chainring tooth shaping and ramp profiles are designed to work in close co-ordination with Tiagra front derailleurs and shift levers. The result is consistent chain pick-up and drop under load, ride after ride, with minimal adjustment required over the life of the chainrings.

Compatibility & fit

Designed for Shimano 11-speed road drivetrains. Uses the Hollowtech II 2-piece spindle interface with a 110mm PCD and a 43.5mm chainline. A compatible Hollowtech II bottom bracket is required and sold separately — suitable options include threaded BSA (68mm or 70mm shell) and press-fit equivalents. This listing is the crankset only, supplied without a bottom bracket and without a chain guard. Always confirm crank arm length, frame bottom bracket shell standard, and chainline before fitting.
