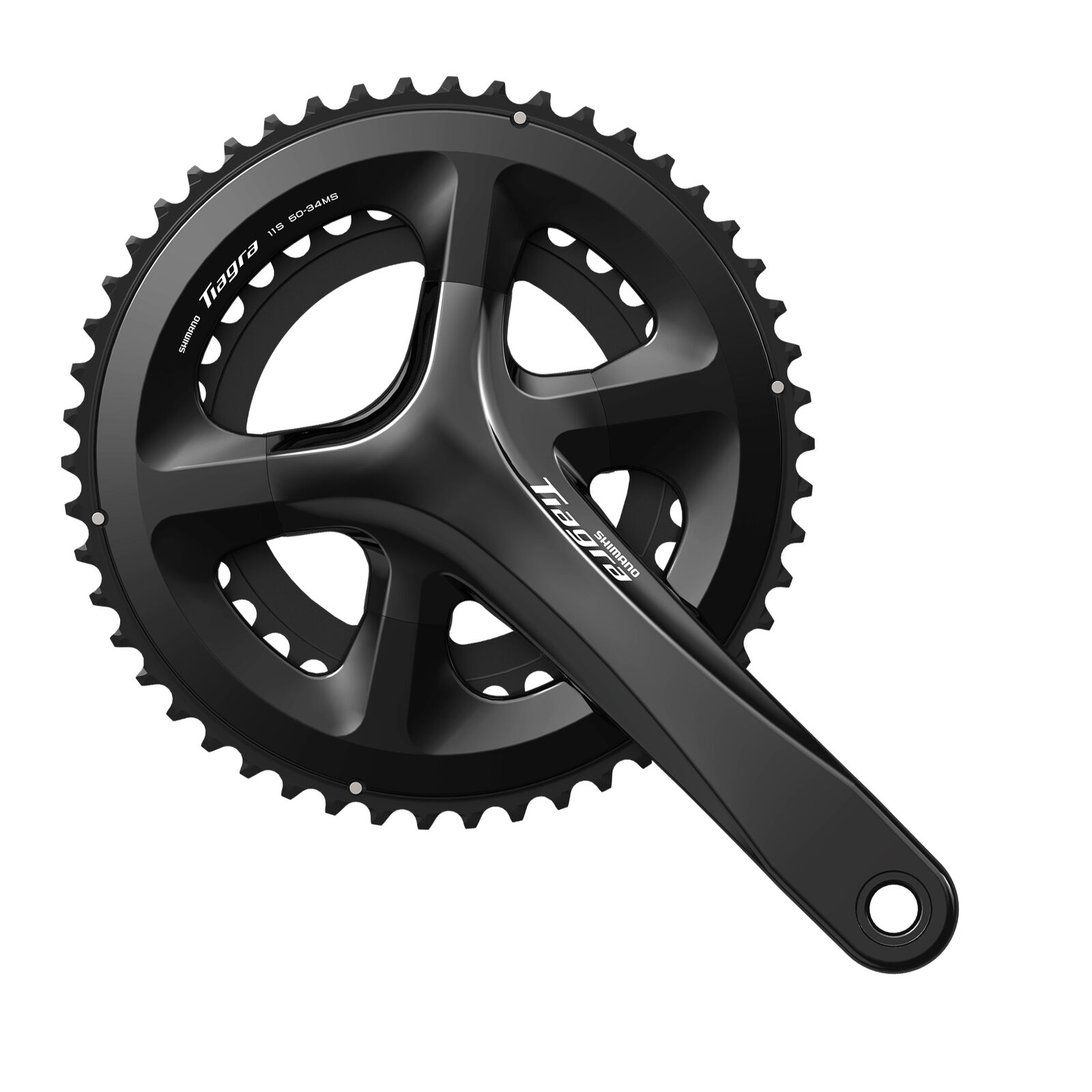

The Shimano Tiagra FC-R4000 brings genuine road-groupset refinement to an accessible price point. This 2x11-speed double crankset uses Shimano's Hollowtech II two-piece construction — the same platform found across the 105, Ultegra and Dura-Ace families — delivering a stiff, direct power transfer that suits everything from endurance road builds to everyday commuters seeking reliable, long-term drivetrain performance.

Highlights

• Hollowtech II two-piece design: integrated spindle and crank arm construction reduces flex and transfers power cleanly under load.
• 50-34T compact gearing: versatile chainring combination for confident climbing and genuine road speed on flat terrain.
• 175 mm crank arm length: suits taller riders or those who prefer a longer pedalling lever for more torque at lower cadence.
• 110 mm BCD four-bolt spider: compatible with a wide range of aftermarket Shimano-standard compact chainrings.
• 43.5 mm chainline: matches the standard Shimano road 2x chainline for precise front shifting.
• Styled after higher-tier Shimano groupsets: the spider flows cleanly into the outer chainring, giving a clean aesthetic on any road build.
• 2x11-speed system: full compatibility across the Shimano R4000 Tiagra groupset and all Shimano HG 11-speed road components.

Two-piece construction for real-world performance

Hollowtech II moves the outboard bearing position wider in the frame shell, stiffening the entire bottom bracket interface without adding weight. The result is a crank that responds directly when you accelerate, holds its line in a sprint, and stays quiet on long endurance days where a less rigid system would develop play over time.

Compact gearing for all-round riding

The 50-34T chainring combination is the go-to choice for riders who want genuine versatility. The 50T outer ring provides enough top-end for flat roads and descents, while the 34T inner ring opens up a usable range for sustained climbs — particularly valuable when paired with an 11-speed cassette offering up to an 11-34T range.

Compatibility & Fit

Designed for Shimano 2x11-speed road drivetrains. Compatible with all Shimano 11-speed road groupsets including Tiagra R4000, 105 R7000, and Ultegra R8000. Chainrings use a 110 mm BCD four-bolt pattern. Chainline is 43.5 mm. This listing is for the 175 mm crank arm length in a 50-34T configuration. Supplied without a bottom bracket — a Shimano Hollowtech II-compatible road bottom bracket (such as the SM-BBR60 for BSA threaded frames) is required. Supplied without chain guard. If you are unsure which bottom bracket suits your frame shell standard, contact us and we will help you confirm.
