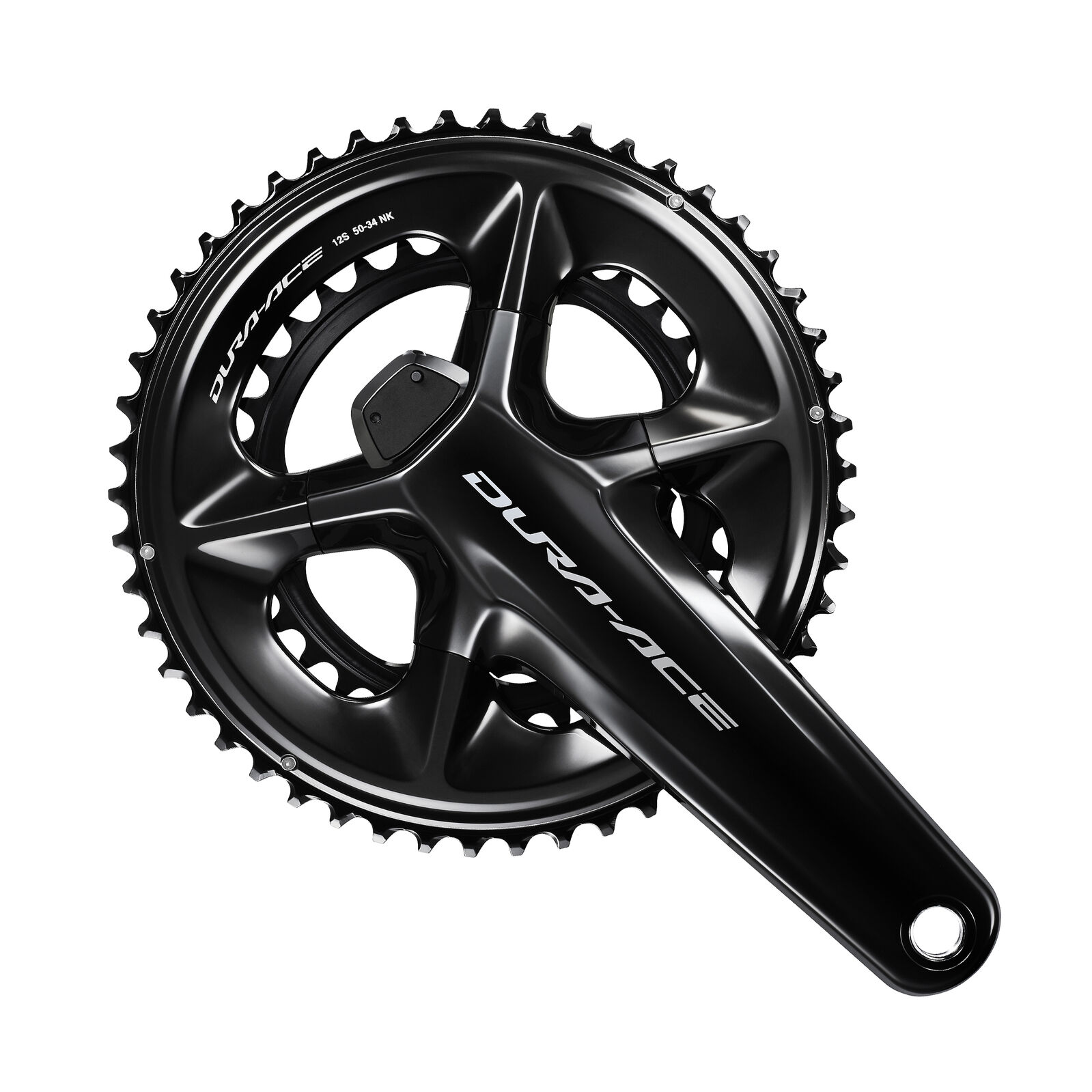

Shimano's flagship road power meter is built straight into the crank, so the Dura-Ace FC-R9200-P measures the effort from each leg independently and lets you train with the precision the professionals rely on. Dual-sided readings accurate to within 1.5 per cent and a rechargeable battery good for hundreds of hours turn every ride into reliable, actionable data, with no extra hardware to bolt on.

Highlights

  • True dual-sided power, measuring the left and right legs independently for genuine left/right balance
  • Class-leading accuracy of plus or minus 1.5 per cent across 24 strain gauges
  • Integrated, waterproof rechargeable battery delivering 300-plus hours per charge
  • Transmits over both ANT+ and Bluetooth LE to head units and training apps
  • Hollowtech II aluminium crank arms for stiff, efficient power transfer with minimal weight
  • 172.5 mm arms with 50-34T compact chainrings for versatile road gearing

Power you can trust

Strain gauges bonded into both crank arms capture the load from each leg separately, giving you genuine left/right balance rather than an estimate doubled from one side. Active temperature compensation keeps readings consistent as conditions change, and a simple zero-offset calibration before you roll out keeps the numbers honest day to day.

Ride longer between charges

The sealed, fully waterproof rechargeable Li-ion battery is built into the unit and rated for more than 300 hours of ride time per charge, depending on your ANT+ and Bluetooth LE settings. A full charge takes roughly two and a half hours, so it stays out of the way and out of mind for weeks of riding.

Dura-Ace performance

The lightweight Hollowtech II crank arms are the same race-proven hardware found on the standard Dura-Ace crankset, so adding power measurement costs you nothing in stiffness, shifting quality or weight at the pedals.

Compatibility & fit

  • Designed for 2x12-speed Dura-Ace and Ultegra road drivetrains
  • 110 mm BCD, 4-bolt asymmetric chainring pattern
  • 24 mm Hollowtech II spindle for use with Shimano 24 mm road bottom brackets (sold separately)
  • 44.5 mm chainline, 148 mm Q-factor
  • This unit ships in 172.5 mm crank length with 50-34T chainrings

Shimano electronic and power meter components, including the Dura-Ace FC-R9200-P, are covered by a two-year manufacturer's warranty against defects in materials and workmanship from the date of purchase. The warranty does not cover damage from crashes, improper installation, modification, normal wear of consumable parts (such as chainring teeth), or water ingress caused by tampering with the sealed unit.

For warranty support, return the item to Tune Cycles and we'll manage the claim for you. This warranty is in addition to your rights under the Australian Consumer Law: our goods come with guarantees that cannot be excluded, including the right to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

  • Dual-sided power meter measuring left and right legs independently
  • Accuracy of plus or minus 1.5 per cent across 24 strain gauges
  • Active temperature compensation for consistent readings
  • Fully waterproof, integrated rechargeable Li-ion battery
  • 300-plus hours of ride time per charge; around 2.5 hours to recharge
  • Dual ANT+ and Bluetooth LE connectivity
  • Hollowtech II aluminium crank arms
  • 172.5 mm crank length with 50-34T compact chainrings
  • For 2x12-speed Dura-Ace and Ultegra road drivetrains
Part numberFC-R9200-P
SeriesShimano Dura-Ace R9200
TypeDual-sided power meter crankset
Speeds2 x 12-speed
Crank length172.5 mm
Chainrings50-34T
BCD110 mm, 4-bolt asymmetric
Chainline44.5 mm
Q-factor148 mm
Spindle24 mm Hollowtech II
Crank arm materialAluminium
Power accuracy+/- 1.5%
Strain gauges24
ConnectivityANT+ and Bluetooth LE
BatteryIntegrated rechargeable Li-ion, fully waterproof
Battery life300+ hours per charge
Charge timeApprox. 2.5 hours
Weight745 g (50-34T)
SKU SHM-IFCR9200PDX04F
Barcode # 4550170820947
