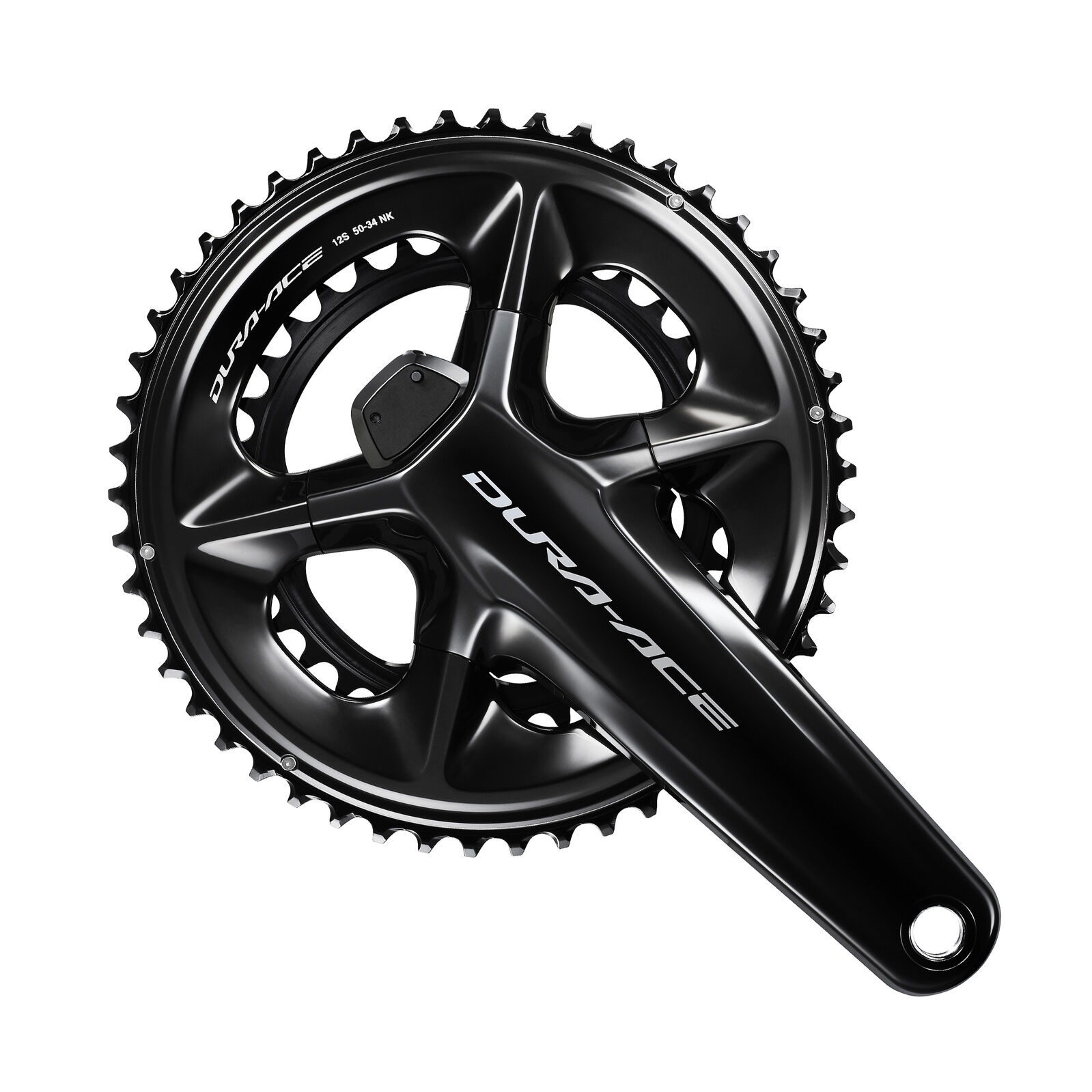

Train and race with race-winning power data straight from the cranks. The Shimano Dura-Ace FC-R9200-P puts a dual-sided power meter into the lightest, stiffest crankset in Shimano's road range, so you see true left and right output without bolting on extra hardware or sacrificing performance.

Highlights

  • Dual-sided power measurement with independent left and right readings to reveal pedalling balance
  • Claimed accuracy within plus or minus 1.5 percent across the full calibration range
  • Built into the flagship Dura-Ace Hollowtech II crankset for top-tier stiffness and low weight
  • Rechargeable internal Li-ion battery rated for 300-plus hours, recharging in around 2.5 hours
  • Broadcasts to head units, watches and trainers over ANT+ and Bluetooth LE
  • This variant is 170 mm arm length with 50-34T compact chainrings

Power you can trust

Strain gauges bonded inside each crank arm measure your actual output leg by leg, so you can chase pacing targets, track training load and spot left-right imbalances. Active temperature compensation keeps the numbers consistent whether you start cold or finish a long climb in the heat.

Flagship crankset, no compromise

Because the sensors live inside a genuine Dura-Ace crankset, you keep the stiffness, light weight and crisp front shifting of the R9200 group. Hollowtech II hollow-forged aluminium arms deliver efficient power transfer, and the asymmetric four-arm spider drives Shimano's latest chainring shaping.

Ride and recharge

The integrated, waterproof lithium-ion battery sits in the control unit on the spider and runs for 300-plus hours between charges, so there are no coin cells to replace. It recharges in roughly 2.5 hours, and a simple zero-offset calibration keeps your data dialled in.

Compatibility & fit

Designed for 2x12-speed Dura-Ace and Ultegra R9200/R8100 road drivetrains. Uses a 24 mm Shimano Hollowtech II steel spindle and a compatible Hollowtech II threaded bottom bracket (sold separately). Chainline 44.5 mm, Q-factor 148 mm, 110 mm asymmetric four-arm bolt circle. This variant is supplied in 170 mm with 50-34T chainrings.

Shimano components carry a manufacturer's warranty against defects in materials and workmanship. For the FC-R9200-P power meter crankset, the warranty period is generally three years for the power meter electronics, in line with Shimano's road component policy; the warranty covers manufacturing defects and does not cover normal wear (chainring teeth, bearing wear), crash damage, improper installation or unauthorised modification.

For warranty support, return the item to Tune Cycles and we'll manage the claim for you.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law, which cannot be excluded.

  • Dual-sided power meter with independent left/right measurement
  • Claimed accuracy within plus or minus 1.5 percent across the calibration range
  • Active temperature compensation for consistent data in changing conditions
  • Genuine Dura-Ace Hollowtech II hollow-forged aluminium crank arms
  • Rechargeable internal Li-ion battery, 300-plus hours per charge, around 2.5 hour recharge
  • Waterproof, integrated control unit on the crank spider
  • ANT+ and Bluetooth LE broadcasting to head units, watches and trainers
  • Asymmetric 110 mm four-arm spider with latest Dura-Ace chainring shaping
  • 170 mm crank arms with 50-34T compact chainrings
ModelShimano Dura-Ace FC-R9200-P
TypeDual-sided power meter crankset
Speeds2x12-speed (road)
Crank arm length170 mm
Chainrings50-34T (compact)
Crank constructionHollowtech II hollow-forged aluminium
Spindle24 mm Hollowtech II
Bolt circle (PCD)110 mm asymmetric, 4-arm
Chainline44.5 mm
Q-factor148 mm
Power accuracyWithin plus or minus 1.5 percent (claimed)
BatteryRechargeable Li-ion, integrated
Battery life300-plus hours per charge
Recharge timeApproximately 2.5 hours
ConnectivityANT+ and Bluetooth LE
Weight745 g (50-34T configuration)
SKU SHM-IFCR9200PCX04F
Barcode # 4550170820923
Brand Shimano
