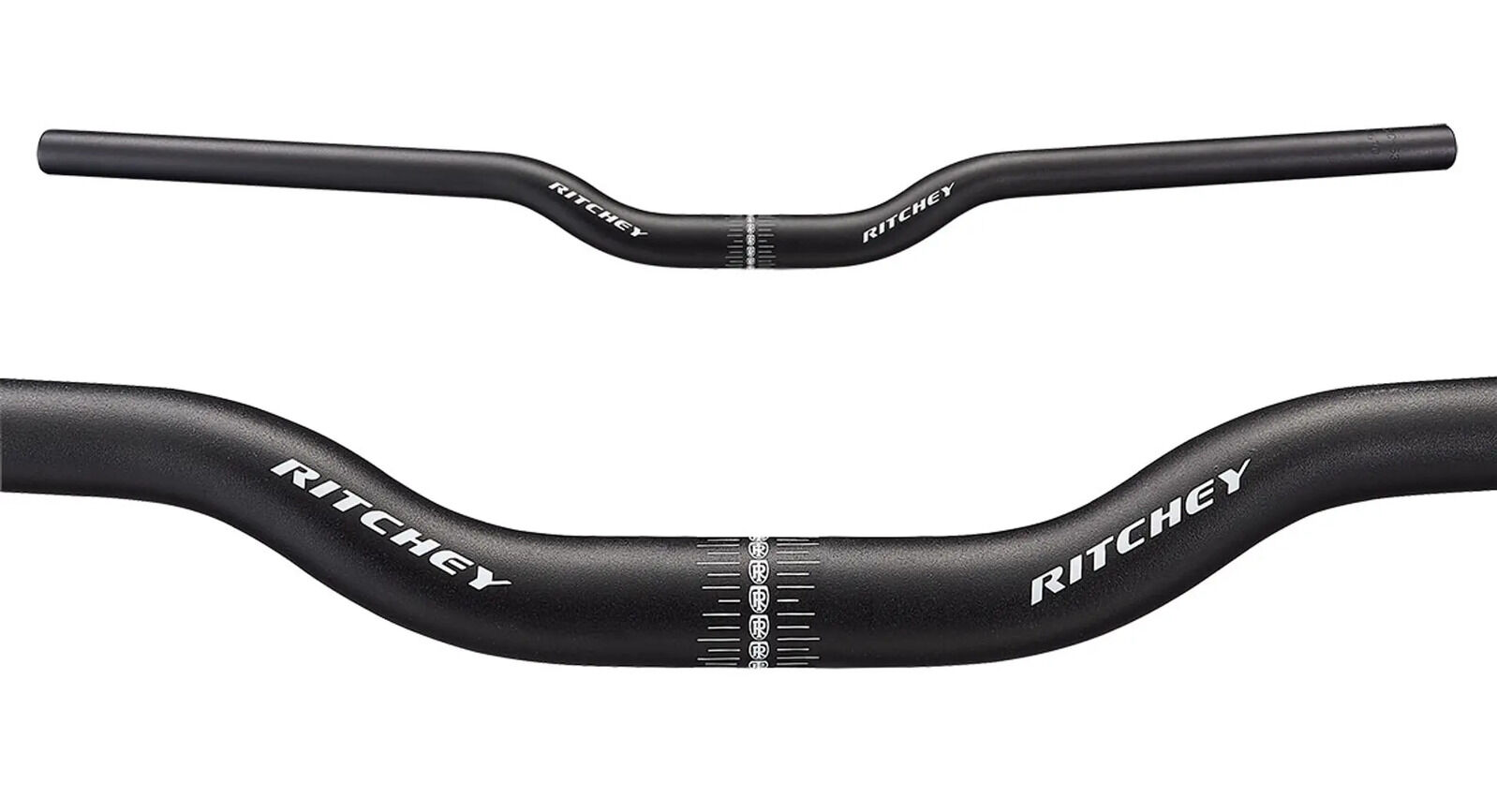

An entry-level riser bar on the older 25.4mm clamp standard, with a tall 30mm rise for comfort on classic-style mountain bike builds.

Highlights

  • 670mm width, 30mm rise
  • 9° backsweep, 2° upsweep
  • Double-butted 6061 alloy, 399g
  • 25.4mm clamp diameter
  • Bar-end compatible

Ride and build

The extra-tall rise suits classic and retro mountain bike builds running a 25.4mm stem, giving a more upright position than a modern low-rise bar.

Compatibility & fit

Clamps to a 25.4mm stem only — this is the older, narrower clamp standard, not the common 31.8mm. Check your stem's clamp diameter before ordering. Accepts bar ends.

Ritchey covers this product for two years from the date of purchase against defects in materials and workmanship (the Ritchey International warranty, which covers Australia). Normal wear and tear isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ritchey's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 670mm width, 30mm rise
  • 9° backsweep, 2° upsweep
  • Double-butted 6061 alloy
  • 25.4mm clamp diameter
  • 399g
Width670mm
Rise30mm
Backsweep9°
Upsweep2°
Clamp diameter25.4mm
MaterialDouble-butted 6061 alloy
Weight399g
Bar-end compatibleYes
ColourBB black
SKU DTW-RIG-HBRL67030K
Barcode # 796941300254
Brand Ritchey
Shipping Weight 0.7000kg
