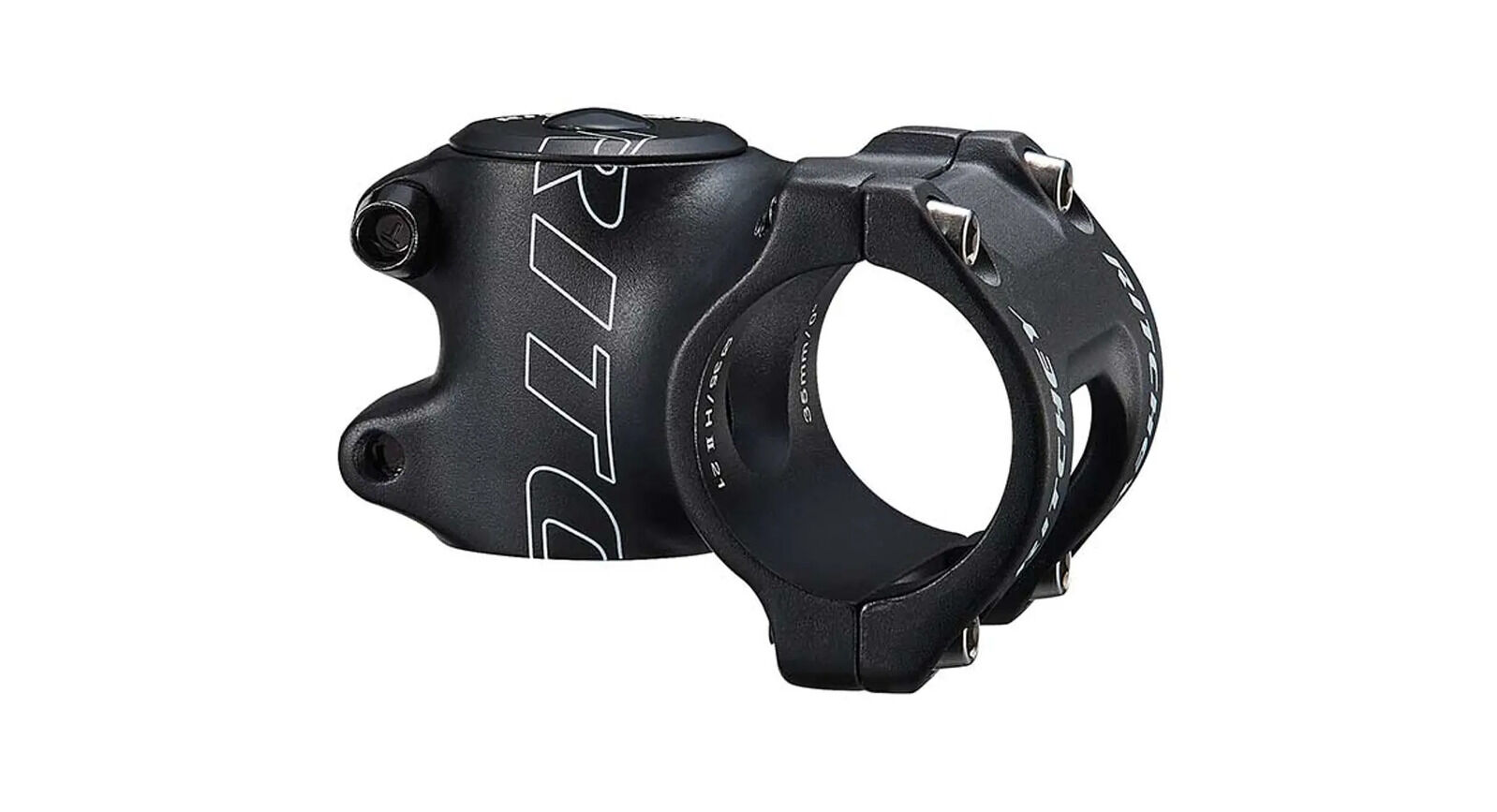

Built for today's wide, 35mm-diameter trail bars, with a vertically offset head that gives a 5mm rise or drop depending on which way up it's fitted.

Highlights

  • Purpose-built for 35mm-diameter MTB bars (such as Ritchey's own Comp Trail Rizer 35)
  • Vertically offset head gives a 5mm rise or drop depending on orientation
  • 3D Net Forged 6061-T6 alloy for stiffness and strength
  • Available in 35, 45, 55 and 65mm lengths
  • BB black finish

Flip for rise or drop

The head sits slightly off the centreline of the stem body, so flipping the stem gives a 5mm rise or drop without changing length.

Compatibility & fit

35mm bar clamp — this will not fit a standard 31.8mm bar. 1-1/8in (28.6mm) steerer. The Tune workshop can fit and torque this to spec.

Options

LengthNotes
35mm135g reference weight
45mm
55mm
65mm
Ritchey covers this product for two years from the date of purchase against defects in materials and workmanship (the Ritchey International warranty, which covers Australia). Normal wear and tear isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ritchey's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 35mm bar clamp
  • 0 degree angle, 5mm flip rise/drop
  • 3D Net Forged 6061-T6 alloy
  • 1-1/8in steerer
  • Available in 35, 45, 55 and 65mm
Material6061-T6 alloy
Angle0 degree, +/-5mm flip rise/drop
Bar clamp diameter35mm
Bar clamp width50mm
Steerer diameter1-1/8in (28.6mm)
Steerer height42mm
Weight135g (35mm)
ColourBB black
Length (option)35mm, 45mm, 55mm, 65mm
SKU DTW-RIG-STCT35-PAR
Brand Ritchey
Shipping Weight 0.3500kg
