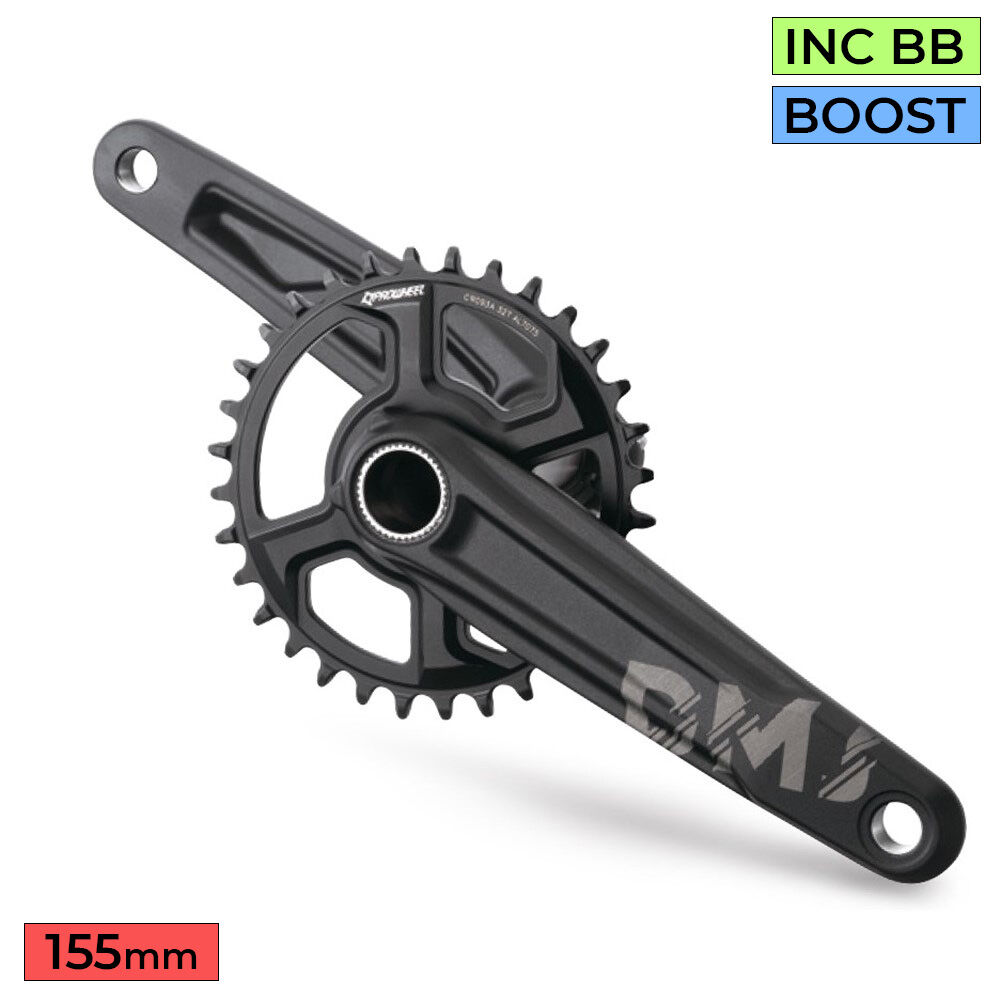

Prowheel DMJ-CR093A Junior Direct-mount 1× MTB Crankset 155mm 32T Boost (148 mm) with BB
SKU code: KWT-PRW-DMJ-CR093A-TT-B-3
The Prowheel DMJ-CR093A is a modern direct-mount 1× crankset: forged 6061-T6 arms, a 7075 narrow-wide direct-mount 32T ring, Boost chainline and a threaded BSA 73 mm bottom bracket in the box — a straight swap for worn Shimano and SRAM-style cranks. 170 mm, or 155 mm for junior and small riders.
Highlights
- Forged AL-6061-T6 arms, black sand anodised
- Direct-mount narrow-wide 32T ring, AL-7075-T6
- PW-BB73+ threaded BSA 73 mm bottom bracket included
- Boost chainline; Q-factor 174 mm
Options
- 155mm (junior, 10/11/12-speed)
- 170mm (11/12-speed)
Fit and compatibility
BSA 73 mm threaded shell (BB included). Direct-mount ring interface — check the chainline option matches your frame (49 mm standard, 52 mm Boost).
Pick your option from the dropdown; price and stock update to the exact variant.
Prowheel products supplied by Tune Cycles are covered against defects in materials and workmanship under the manufacturer's warranty, handled in Australia through the distributor. Normal wear and tear, crash or impact damage, incorrect installation, modification and misuse aren't covered.
For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim with the distributor for you. This cover is in addition to your rights under the Australian Consumer Law.
- Forged AL-6061-T6 arms, black sand anodised
- Direct-mount narrow-wide 32T ring, AL-7075-T6
- PW-BB73+ threaded BSA 73 mm bottom bracket included
- Boost chainline; Q-factor 174 mm
- Options: 155mm (junior, 10/11/12-speed), 170mm (11/12-speed)
| Brand | Prowheel |
|---|---|
| Model | DMJ-CR093A |
| Type | Direct-mount 1× MTB |
| Chainrings | 32T |
| Axle / interface | Direct mount, 24 mm axle |
| Bottom bracket | PW-BB73+ threaded BSA 73 mm bottom bracket included (TT) |
| Chainline | 49 / 52 / 55 mm (Boost) |
| Boost | Boost (148 mm) |
| Q-factor | 174 mm |
| Arm material | Forged AL-6061-T6, black sand anodised |
| Chainring material | Direct-mount narrow-wide, AL-7075-T6 |
Options
| Option | Crank length | Speeds |
|---|---|---|
| 155mm (junior, 10/11/12-speed) | 155 mm | 10/11/12-speed |
| 170mm (11/12-speed) | 170 mm | 11/12-speed |
| SKU | KWT-PRW-CR093A |
| Brand | Prowheel |
| Shipping Weight | 0.9000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.100m |
| Shipping Length | 0.400m |
