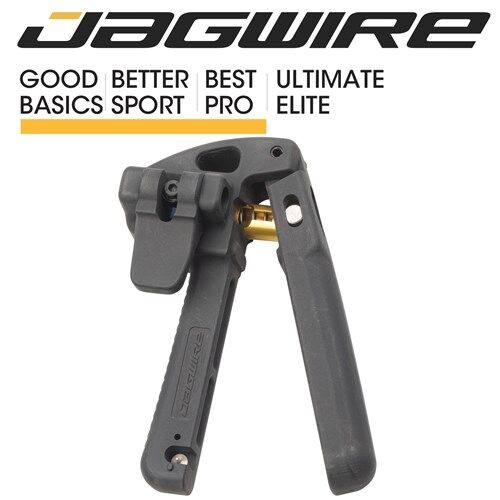

Hydraulic hose fittings shouldn't go in with a hammer. The Pro Needle Driver presses the needle insert in straight with a squeeze of the handle: a sliding piston keeps it aligned and the long lever arm cuts the effort.

Highlights

  • Presses needle inserts with a squeeze of the handle
  • Sliding piston for straight installation; long lever arm reduces effort
  • 2-way clamp fits 5.0 and 5.5 mm hydraulic hose, adjustable tension
  • Needle starter pin to set the insert into the hose
  • Textured handle grip

Workshop

Prefer to leave it to us? Our workshop shortens hydraulic hoses and bleeds brakes. That work is a workshop service and isn't included.

Compatibility & fit

For unthreaded needle inserts in 5.0 and 5.5 mm hydraulic hose. Jagwire notes that the newer version with a silver barrel also works with Jagwire Pro Connect needles; a replacement barrel is sold as WST011.

Jagwire warrants its products against defects in material and workmanship under normal use and service for two years from the date of original purchase. The warranty doesn't cover normal wear and tear, damage from misuse, abuse, neglect, improper installation or unauthorised modification, products used for commercial purposes, or accidental damage. This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Jagwire's Australian distributor.

  • Squeeze-handle needle press
  • Sliding piston, long lever
  • 2-way clamp for 5.0 / 5.5 mm hose
  • Needle starter pin
  • For unthreaded needles
BrandJagwire
RangePro
Jagwire part no.WST065
Hose sizes5.0 and 5.5 mm
Needle typeUnthreaded
ColourBlack
Weight230 g
SKU BCP-WST065
Model # WST065
Barcode # 4715910041925
Brand Jagwire
Shipping Weight 0.4100kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
