DT Swiss PR1600 Spline 23 DiscBrake 12x100 Front Wheel MY24
SKU code: APO-DTW017-FRONT-24
In Stock

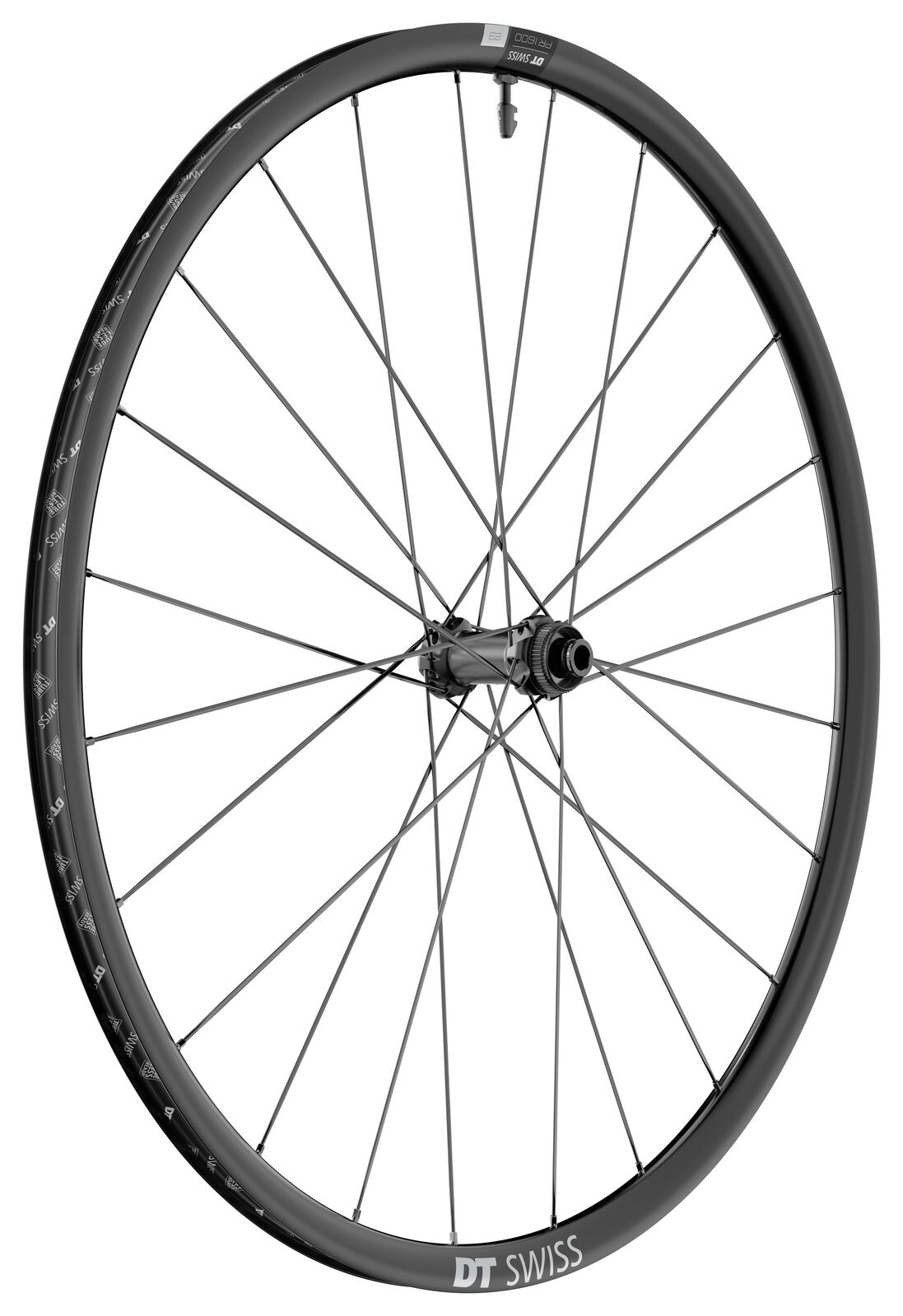

PR1600 Spline 23 DiscBrake 12x100 FRONT MY24
The PR1600 Spline 23 DiscBrake 12x100 FRONT MY24 by DT Swiss is engineered for cyclists who demand performance and reliability on every ride. This front wheel features a lightweight aluminum construction, designed to enhance your climbing efficiency while providing excellent traction and stability on descents. The 20mm wide rim supports a variety of tire sizes, making it versatile for different terrains. With the improved 350 ratchet hub, you can expect quick engagement, allowing for seamless acceleration after brief pauses to enjoy the scenery.
Specifications
- Net Weight: 739 g
- Recommended System Weight: Max. 120 kg
- ASTM Classification: 1 (suitable for road use)
- Material: Aluminum
- Rim Joint: Sleeve joint
- Tire Interface: Hooked / Crotchet tubeless TC
- Valve Hole: Presta
- Rim Diameter: 29" / 700C
- Rim Height: 23 mm
- Inner Width: 20 mm
- Outer Width: 24 mm
- Hub Type: 350
- Axle System: 12 mm Thru Axle
- Built-in Dimension: 100 mm
- Brake Interface: Disc Center Lock
- Spokes: DT aero comp® wide straightpull
- Spoke Pattern: Two-cross (1:1)
- Nipples: DT ProLock Squorx ProHead alu
- Inclusive: Tubeless tape (23 mm) and TL valve (alu black 18-25 mm)
Warranty Information
DT Swiss offers a warranty on their products, which typically covers defects in materials and workmanship. For specific warranty details, including duration and conditions, please refer to the DT Swiss Warranty & Fair-Share page for comprehensive information.
About DT Swiss
DT Swiss is a renowned brand in the cycling industry, celebrated for its commitment to quality and innovation. With a focus on precision engineering, DT Swiss produces high-performance wheels, hubs, and components that cater to both professional and amateur cyclists. Their products are designed to enhance the cycling experience, ensuring reliability and performance on every ride. Whether you're tackling steep climbs or cruising on flat roads, DT Swiss provides the technology and support you need to excel.
For more information, visit the DT Swiss website to explore their full range of products and technologies.
Warranty Information
The DT Swiss PR1600 Spline 23 DiscBrake 12x100 FRONT MY24 is covered by a warranty that addresses defects in materials and workmanship.
- Warranty Duration: 24 months from the date of purchase.
- Coverage: Defects in materials and workmanship. Excludes wear parts such as ball bearings and tubeless rim tape.
- Requirements: Original purchase receipt required for all warranty claims.
- Conditions: Proper use and adherence to assembly, handling, and maintenance instructions are necessary.
- Exclusions: Modifications or use with incompatible parts voids the warranty. Indirect or consequential damages are not covered.
For complete warranty details, visit the DT Swiss Warranty & Fair-Share page.
| Feature | Specification |
|---|---|
| Product Name | PR1600 Spline 23 DiscBrake 12x100 FRONT MY24 |
| Brand | DT Swiss |
| Net Weight | 739 g |
| Recommended System Weight | Max. 120 kg |
| ASTM Classification | 1 (suitable for road use) |
| Material | Aluminum |
| Rim Joint | Sleeve joint |
| Tire Interface | Hooked / Crotchet tubeless TC |
| Valve Hole | Presta |
| Rim Diameter | 29" / 700C |
| Rim Height | 23 mm |
| Inner Width | 20 mm |
| Outer Width | 24 mm |
| Hub Type | 350 |
| Axle System | 12 mm Thru Axle |
| Built-in Dimension | 100 mm |
| Brake Interface | Disc Center Lock |
| Spokes | DT aero comp® wide straightpull |
| Spoke Pattern | Two-cross (1:1) |
| Nipples | DT ProLock Squorx ProHead alu |
| Inclusive | Tubeless tape (23 mm) and TL valve (alu black 18-25 mm) |
| Specification | Details |
|---|---|
| Net Weight | 739 g |
| Recommended System Weight | Max. 120 kg |
| Rim Diameter | 29" / 700C |
| Rim Height | 23 mm |
| Inner Width | 20 mm |
| Outer Width | 24 mm |
| Built-in Dimension | 100 mm |
| SKU | APO-DTW017-FRONT-24 |
| Barcode # | 7.61E+12 |
| Brand | DT Swiss |
