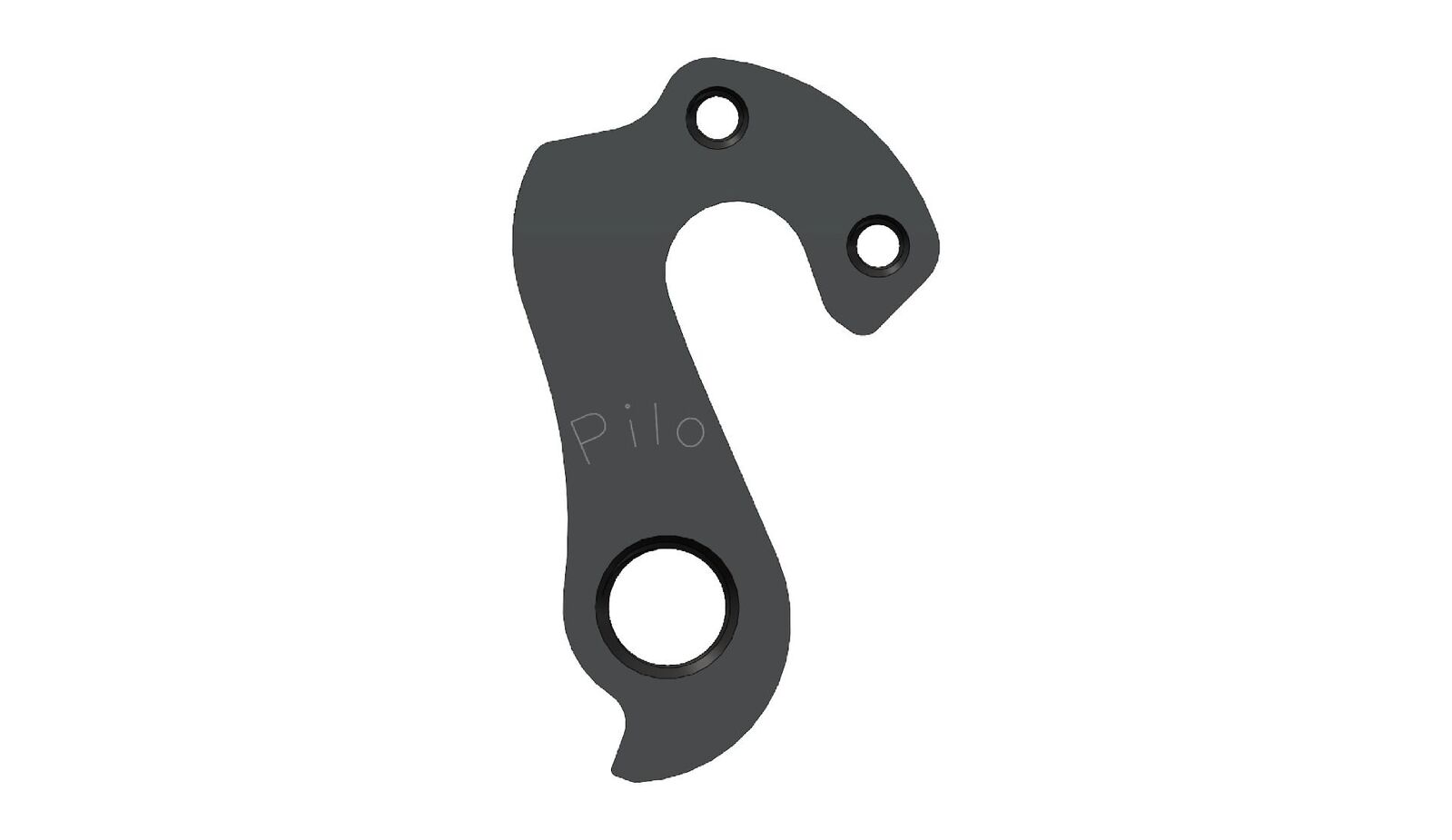

The PILO D1132 is a CNC-machined replacement derailleur hanger for Blue, Devron, Whyte, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 frames, cut from 6061-T6511 billet aluminium and hard black-anodised so it's straighter and stronger than the cast original — and it saves the frame when the derailleur takes a hit.

Highlights

• Fits Blue, Devron, Whyte, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 (see full model list below)
• CNC-machined from 6061-T6511 billet aluminium — no cast porosity
• Hard black anodised
• Mounting bolts not included — reuse your originals

Compatible frames

Blue: Prosecco AL

Devron: Various models

Whyte

2011: CALEDONIAN, CALEDONIAN W, CAMBRIDGE, CONISTON, MALVERN, MALVERN W, MONTPELLIER, PORTOBELLO, STIRLING

2012: CALEDONIAN, CALEDONIAN W, CAMBRIDGE, CONISTON, MALVERN, MALVERN W, MONTPELLIER, PORTOBELLO, STIRLING

2013: CALEDONIAN, CALEDONIAN W, CAMBRIDGE, CAMBRIDGE VARSITY, CHILTERN, CONISTON, MALVERN, MALVERN W, PORTOBELLO, STIRLING, VICTORIA

2014: CALEDONIAN, CALEDONIAN W, CAMBRIDGE, CHILTERN, DORSET, MALVERN, MALVERN W, PIMLICO, PORTOBELLO, STIRLING, SUFFOLK, SUSSEX, VICTORIA

2015: 529, 629, 729, 801, 805, 802 COMPACT, 806 COMPACT, CALEDONIAN, CALEDONIAN WOMENS, CAMBRIDGE, CARNABY COMPACT, DEVON COMPACT, DORSET, MALVERN, MALVERN WOMENS, PIMLICO, PORTOBELLO, RIDGEWAY, RIDGEWAY WOMENS, SAXON CROSS, SAXON CROSS TEAM, SHOREDITCH, SOMERSET COMPACT, STIRLING, SUFFOLK, SUSSEX, VICTORIA, WHITECHAPEL

2016: 529, 629, 801, 805, 802 COMPACT, 806 COMPACT, CALEDONIAN, CALEDONIAN WOMENS, CAMBRIDGE, CARNABY COMPACT, DEVON COMPACT, DORSET, MALVERN, MALVERN WOMENS, PIMLICO, PORTOBELLO, RIDGEWAY, RIDGEWAY WOMENS, SAXON CROSS, SAXON CROSS TEAM, SHOREDITCH, SOMERSET COMPACT, STIRLING, SUFFOLK, SUSSEX, VICTORIA, WHITECHAPEL

2017: 403, 405, 529, 603, 605, 629, 801, 805, 604 COMPACT, 802 COMPACT, 806 COMPACT, CALEDONIAN, CALEDONIAN WOMENS, CAMBRIDGE, CARNABY COMPACT, CLIFTON e-BIKE, CONISTON e-BIKE, CONISTON WOMENS e-BIKE, DEVON COMPACT, DORSET, HIGHGATE e-BIKE, MALVERN, MALVERN WOMENS, PIMLICO, PORTOBELLO, RIDGEWAY, RIDGEWAY WOMENS, SHOREDITCH, SOMERSET COMPACT, STIRLING, VICTORIA, WHITECHAPEL

2018: 403, 405, 529, 603, 605, 629, 801, 805, 604 COMPACT, 802 COMPACT, 806 COMPACT, CALEDONIAN, CALEDONIAN WOMENS, CAMBRIDGE, CARNABY COMPACT, CLIFTON e-BIKE, CONISTON e-BIKE, CONISTON WOMENS e-BIKE, DEVON COMPACT, DORSET, HIGHGATE e-BIKE, PIMLICO, PORTOBELLO, RIDGEWAY, RIDGEWAY WOMENS, SHOREDITCH, STIRLING, VICTORIA, WHITECHAPEL

2019: 403, 405, 603, 605, 801, 805, 604 COMPACT, 802 COMPACT, 806 COMPACT, CALEDONIAN, CALEDONIAN WOMENS, CARNABY COMPACT, CLIFTON e-BIKE, CONISTON e-BIKE, CONISTON WOMENS e-BIKE, DEVON COMPACT, DORSET, HIGHGATE e-BIKE, PIMLICO, PORTOBELLO, RIDGEWAY, RIDGEWAY WOMENS, SHOREDITCH, STIRLING, VICTORIA, WHITECHAPEL

2020: 403, 405, 603, 605, 801, 805, 604 COMPACT, 802 COMPACT, 806 COMPACT, CALEDONIAN, CALEDONIAN WOMENS, CARNABY COMPACT, CLIFTON e-BIKE, CONISTON e-BIKE, CONISTON WOMENS e-BIKE, DEVON COMPACT, DORSET, HIGHGATE e-BIKE, HOXTON, MALVERN, MALVERN WOMENS, PIMLICO, PORTOBELLO, RIDGEWAY, RIDGEWAY WOMENS, SHOREDITCH, STIRLING, VICTORIA, WHITECHAPEL

2021: 403, 405, 429, 603, 605, 801, 805, 604 COMPACT, 802 COMPACT, 806 COMPACT, CALEDONIAN, CALEDONIAN WOMENS, CARNABY COMPACT, CLIFTON e-BIKE, CONISTON e-BIKE, CONISTON WOMENS e-BIKE, HIGHGATE e-BIKE, HOXTON, MALVERN, MALVERN WOMENS, PIMLICO, PORTOBELLO, RIDGEWAY, RIDGEWAY WOMENS, SHOREDITCH, STIRLING, VICTORIA, WHITECHAPEL

2022: 403, 405, 429, 603, 605, 801, 805, 604 COMPACT, 802 COMPACT, 806 COMPACT, CALEDONIAN, CALEDONIAN WOMENS, CARNABY COMPACT, CLIFTON e-BIKE, CONISTON e-BIKE, CONISTON WOMENS e-BIKE, HIGHGATE e-BIKE, MALVERN, MALVERN WOMENS, PIMLICO, PORTOBELLO, RIDGEWAY, RIDGEWAY WOMENS, SHOREDITCH, STIRLING, VICTORIA, WHITECHAPEL

Before you order

Check your frame's hanger against the PILO D1132 shape and the model list. PILO hangers are frame-specific; if your model isn't listed, send us a photo of your hanger and we'll match it.
