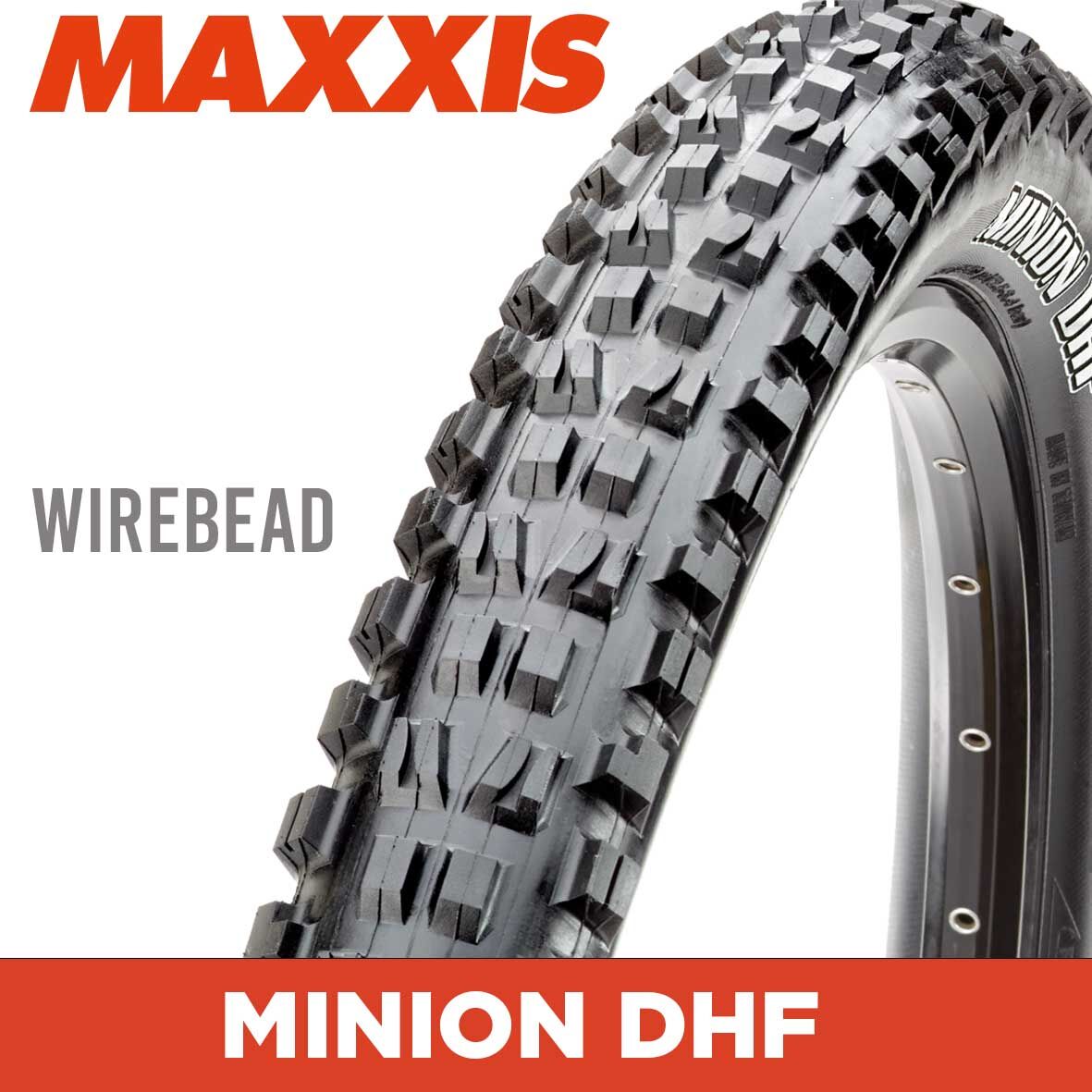

The Minion DHF is the front tyre so many others copy, balancing rolling speed with dependable braking and cornering traction. This 20 x 2.40 version uses dual compound rubber on a steel wire bead.

Highlights

  • Benchmark front tread that balances speed with braking and cornering grip
  • Dual compound balances speed and grip
  • Tube-type: run it with an inner tube, E25 e-bike rated
  • 708 g claimed weight

About the Minion DHF

The DHF's tread balances rolling speed with braking and cornering grip so well that it's one of the most imitated designs in mountain biking. Maxxis designs it for the front wheel and offers a DHF spec for everything from local trails and backcountry epics to enduro racing and World Cup downhill.

Dual compound rubber

A dual compound tread uses two rubbers to balance rolling resistance and grip. Its 60 TPI casing favours puncture and cut resistance over suppleness. A steel wire bead adds strength, though it won't fold for carrying.

Compatibility & fit

Fits 20-inch rims (ETRTO 61-406); Maxxis lists a 21–35 mm internal rim width. Maximum pressure is 65 psi. Check frame and fork clearance for a 2.40-inch tyre. It isn't tubeless ready, so run a tube (Maxxis says sealant in a non-TR tyre voids the warranty). Fitting isn't included; our workshop can fit it for you.

Covered against manufacturing defects in materials and workmanship. Normal tread wear, punctures, cuts and damage from incorrect fitting or inflation, or from using sealant in a tyre that isn't tubeless ready, are not manufacturing defects. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, Maxxis's Australian distributor.
  • Dual compound tread
  • 60 TPI casing
  • Tube-type: use with an inner tube
  • Steel wire bead
  • E25 e-bike rating
  • Recommended position: front
BrandMaxxis
ModelMinion DHF
Size20 x 2.40
ETRTO61-406
Wheel size20-inch (406 mm)
BeadWire
TPI60
Rubber compoundDual
Tubeless ReadyNo, use with an inner tube
Sidewall colourBlack
Claimed weight708 g
Maximum pressure65 psi
Recommended inner rim width21–35 mm
E-bike ratingE25 (Maxxis rating for light-duty e-bike use)
Intended useTrail, enduro and downhill
Recommended positionFront
SKU KWT-MDF2024SP
Brand Maxxis
Shipping Weight 0.3000kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
