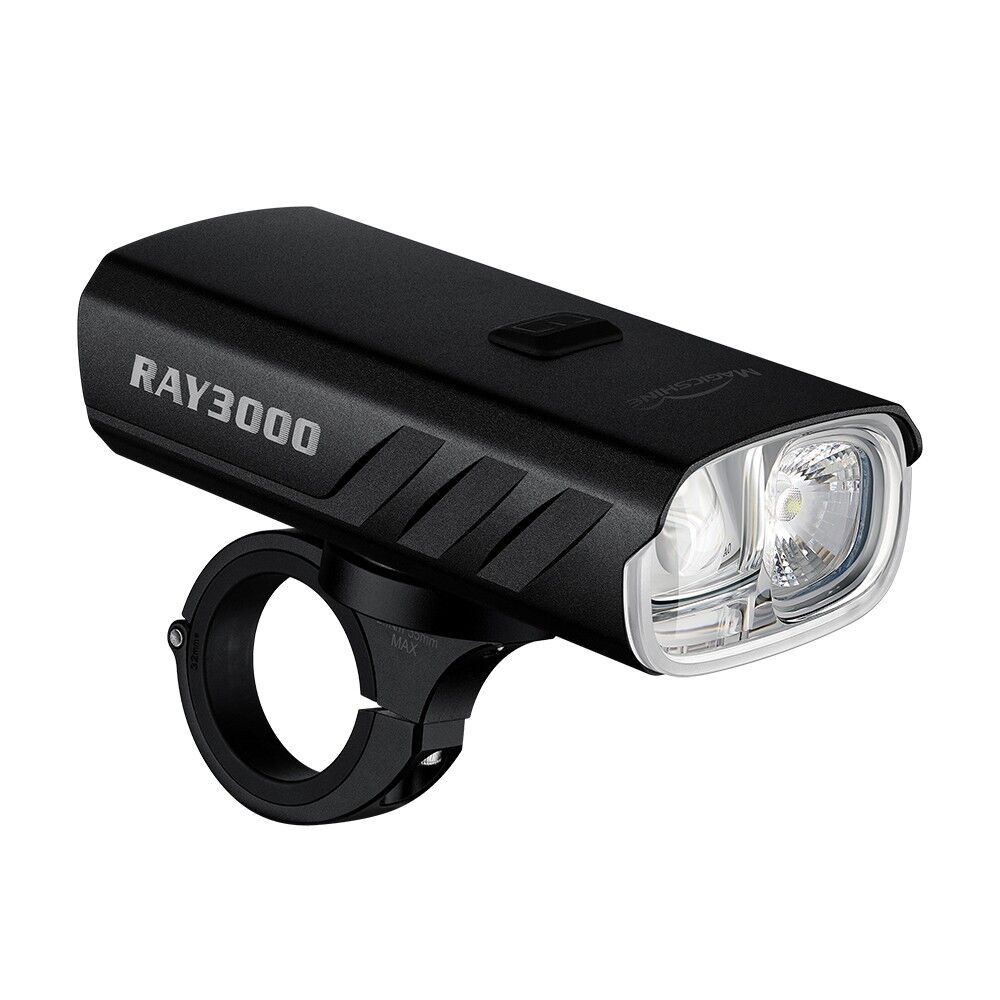

Magicshine RAY 3000 ANT+ Endurance Front Light 3000 Lumen
SKU code: KWT-MS-RAY3000
$289.95
RAY 3000 is Magicshine's upgrade to the RN 3000, built for long nights on singletrack, audax rides and bikepacking: 3000 lumens, a 288 m throw and up to 33 hours from one charge.
Highlights
- 3000 lm maximum output, up to 288 m throw
- Dual-beam optics: cut-off low beam plus long-range high beam
- 10,000 mAh battery (2 x 5000 mAh cells, 7.3V), up to 33 h
- ANT+ light control and battery display on your bike computer
- FTR LightSync front-rear sync; MJ-6558 remote included
- 30 W USB-C fast charge in about 2 h, plus reverse charging for your phone or computer
- One-piece aluminium body, IPX6, instant max output and smart lockout
Modes and run times
| Beam | Mode | Output | Run time |
|---|---|---|---|
| Low beam | Low | 375 lm | 22 h 30 min |
| Low beam | Medium | 750 lm | 10 h 30 min |
| Low beam | High | 1500 lm | 4 h 30 min |
| High beam | Low | 750 lm | 13 h 30 min |
| High beam | Medium | 1500 lm | 6 h 30 min |
| High beam | High | 3000 lm | 3 h |
| Flash | Day flash | 0–1500 lm | 33 h |
| Flash | Night flash | 165–900 lm | 24 h 30 min |
In the box
RAY 3000, MJ-6512 aluminium Garmin handlebar mount, MJ-6558 remote with strap, USB-C cable, 3 mm hex key, three nylon shims (28 / 32 / 35 mm) and user manual.
Compatibility & fit
The included MJ-6512 aluminium mount uses a Garmin-style quarter-turn release, with shims for different bar diameters. ANT+ control needs a bike computer that supports ANT+ lights.
Magicshine lists a 2-year warranty for the RAY 3000. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, Magicshine's Australian distributor.
- 3000 lm, up to 288 m throw
- Cut-off low beam plus high beam
- Up to 33 h from 10,000 mAh
- ANT+ and FTR LightSync, remote included
- 30 W USB-C fast charge, reverse charging
- IPX6 one-piece aluminium body
| Max output | 3000 lumens |
|---|---|
| Run time | 3–33 h |
| Max throw | 288 m |
| Beam intensity | 20,860 cd |
| Beam pattern | High beam + low beam |
| Connectivity | ANT+, FTR LightSync |
| Battery | 10,000 mAh (2 x 5000 mAh cells, 7.3V) |
| Charging | USB-C, about 2 h (30 W fast charging) |
| Power output | 18 W reverse charging |
| Body | Aluminium alloy + PC lens |
| Waterproof rating | IPX6 |
| Dimensions | 115 x 48 x 40 mm |
| Weight | 284 g |
| Mount | MJ-6512 aluminium Garmin-style quarter-turn |
| SKU | KWT-MS-RAY3000 |
| Brand | MAGICSHINE |
| Shipping Weight | 0.4640kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.060m |
| Shipping Length | 0.150m |
