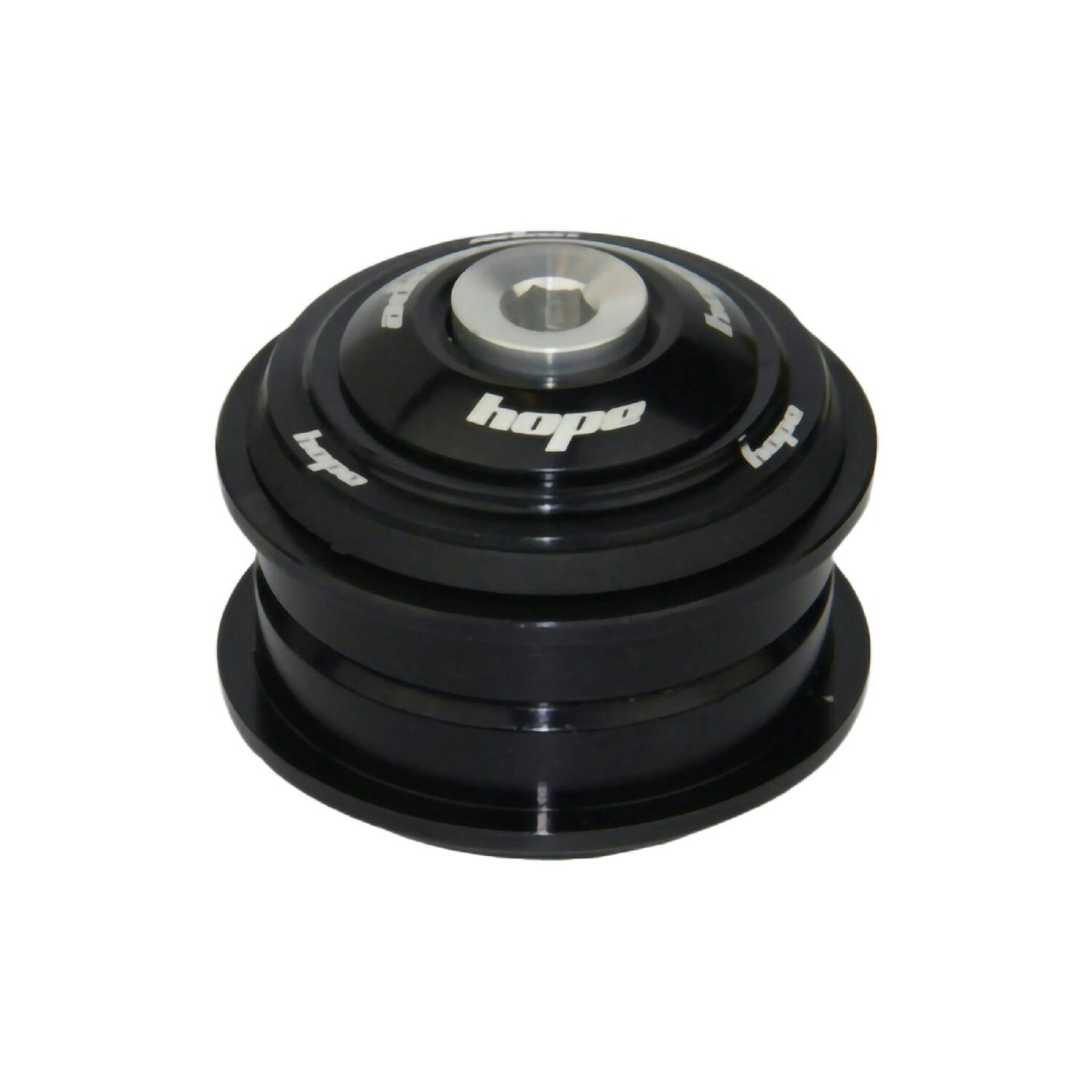

Hope's Integral headset is made to fit low stack 1 1/8 inch frames, tucking the cups inside the head tube for a clean, low front end.

Highlights

  • For low stack (zero stack) 1 1/8" frames
  • 44.1mm cups sit inside the head tube
  • Replaceable stainless steel bearings
  • Split crown race
  • Head Doctor top cap included

Hope quality throughout

The cups, taper ring and crown race are machined from 2014 T6 aluminium and every headset is hand-assembled in Barnoldswick, UK. Sealing comes from an adjustable taper ring cover and integrated rubber seal, and the stainless bearings carry their own seals too. Every part is available as a spare, so the headset can be serviced rather than replaced.

Compatibility & fit

For frames with 44mm zero stack (ZS44) head tubes and straight 1 1/8" steerers. Not for tapered forks – see the Hope Tapered headset.

Want it fitted? Installation is a separate Tune Cycles workshop service – book a workshop slot and we will set it up properly.

Covered by the manufacturer's warranty against defects in materials and workmanship. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • 44.1mm top and bottom cups
  • Cups, taper ring and crown race in 2014 T6 aluminium
  • Custom replaceable stainless steel bearings
  • Split crown race
  • Head Doctor top cap
BrandHope
ModelIntegral headset
Part numberHSNN
TypeIntegral / zero stack (S.H.I.S. ZS44/28.6 | ZS44/30)
Steerer1 1/8"
ColourBlack
SKU BSP-HOPHPINTGBK
Brand Hope
