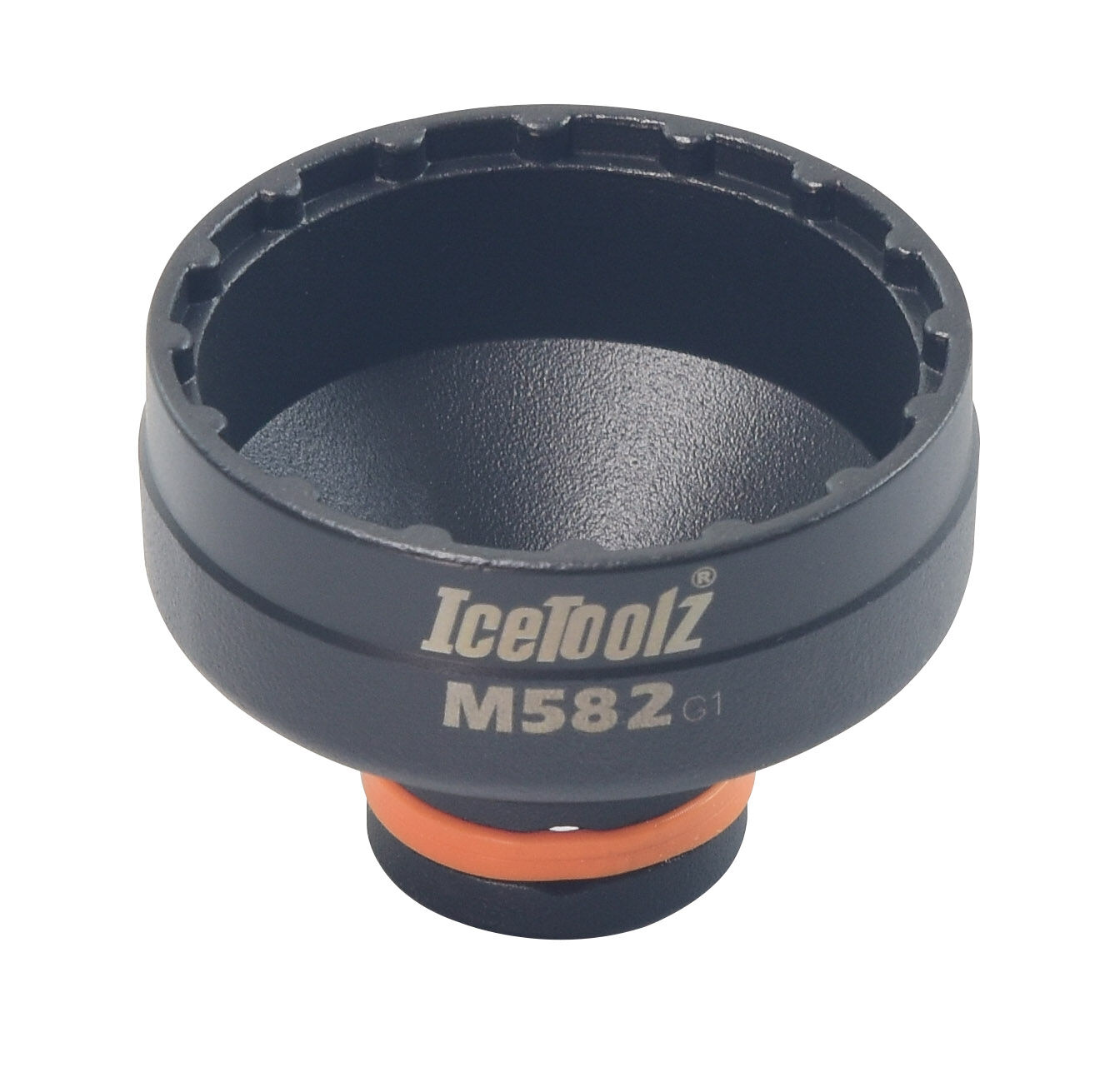

The IceToolz M582 fits the chainring lockring on Shimano's STEPS e-bike motors, so you can swap a worn chainring or change ratios without guesswork or a damaged lockring.

Highlights

  • For Shimano STEPS E5000, E6100, E7000, E8000 and EP800 drive units
  • Suits the Shimano SM-CRE80 chainring and FSA spiders
  • Installs and removes the chainring
  • 1/2-inch square drive
  • Cr-Mo steel, 238g

Rigid where it counts

The lockring on an e-bike chainring is done up tight to cope with motor torque. The M582 is made from Cr-Mo steel, which keeps it rigid and impact-resistant so your effort goes into the lockring rather than flexing the tool. With the crank arm removed, fit the M582, drive it with a 1/2-inch two-way ratchet such as IceToolz's 53R4, and the chainring can come off.

Compatibility & fit

IceToolz lists the M582 for Shimano STEPS E5000, E6100, E7000, E8000 and EP800 drive units, the SM-CRE80 chainring and FSA spiders. Newer EP5, EP6 and EP801 units are listed by IceToolz for the M585. Check your drive unit model before ordering.

Our workshop services Shimano e-bike drivetrains if you'd rather we did the swap.

IceToolz covers its products with a two-year limited warranty from the date of purchase against material or manufacturing defects under normal use. Damage from improper use, accidents, abuse or modification isn't covered, and proof of purchase is required. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, IceToolz's Australian distributor.
  • Shimano STEPS E5000, E6100, E7000, E8000, EP800
  • Shimano SM-CRE80 chainring and FSA spider
  • 1/2-inch square drive
  • Cr-Mo steel
Brand codeM582
FitsShimano STEPS E5000, E6100, E7000, E8000, EP800; Shimano SM-CRE80; FSA spider
Drive1/2-inch two-way ratchet (IceToolz 53R4)
Dimensions6.0 x 6.0 x 4.5cm
Weight238g
ColourBlack
MaterialCr-Mo steel
SKU KWT-ZTL-CR-M582
Brand IceToolz
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
