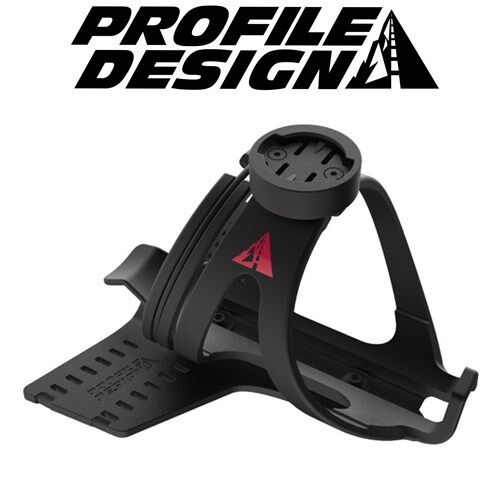

Profile Design HSF BTA Bottle Mount with Garmin Mount
SKU code: BCP-ACBTAKAG1
The HSF BTA is a minimal between-the-arms bottle mount with high retention, a setback mount point and a Garmin computer mount above the bottle.
Highlights
- 30 mm offset sets the bottle further back on the aerobar
- 10 mm dropped V shape centres it between the extensions
- Fits extension widths from 80 to 120 mm, centre to centre
- Removable Garmin mount above the bottle
- 100 g
Setback and drop
The mount is offset so the bottle bolts sit well behind the attachment point. On aerobars that would otherwise push the bottle too far forward to reach, that brings it back into reach. The slightly dropped V shape centres it between the extensions and reduces the risk of the bottle touching narrow armrest positions.
Computer mount
Takes a Garmin computer; the mount can be removed. Wahoo Element computers need a third-party adaptor. Computer and bottle not included.
Compatibility & fit
Fits aerobar extensions 80–120 mm apart (centre to centre) and takes an HSF bottle or a standard cycling bottle. Mounting bolts 4 Nm.
Aerobar fitting and position set-up is a separate workshop service and isn't included in the price. Our workshop can fit it and set up your position.
Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.
- Between-the-arms bottle mount
- 30 mm offset, 10 mm drop
- Extension width 80–120 mm (centre to centre)
- Removable Garmin mount
- HSF or standard bottle
- 100 g
| Construction | Engineering plastic |
|---|---|
| Bottle | HSF bottle or standard cycling bottle |
| Computer mount | Garmin (removable); Wahoo with third-party adaptor |
| Installation | Front BTA system |
| Mount offset | 30 mm |
| Mount drop | 10 mm |
| Extension width | 80–120 mm (centre to centre) |
| Mounting bolt torque | 4 Nm |
| Colour | Matte black |
| Weight | 100 g |
| SKU | BCP-ACBTAKAG1 |
| Model # | ACBTAKAG1 |
| Barcode # | 0723660009274 |
| Brand | Profile Design |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
