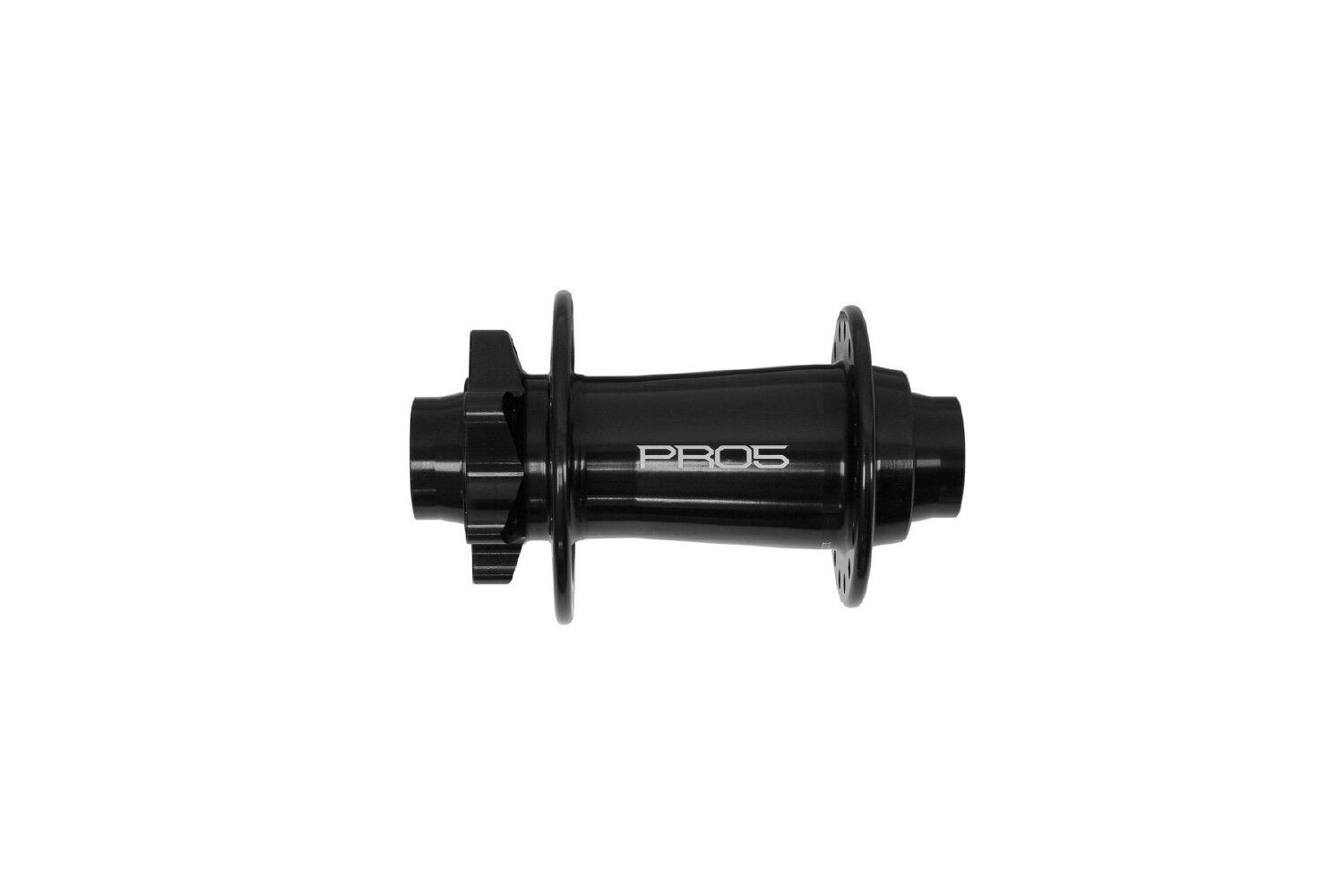

The Pro 5 front distils more than 30 years of Hope hub-making into a stiff, reliable hub for modern Boost forks. This version is set up for 110 x 20mm thru-axles — the heavy-duty choice for long-travel, enduro and downhill builds.

Highlights

  • Boost flanges sit 5mm further outboard than Hope's 100mm hub for a stiffer wheel
  • Larger spoke flange for stiffer wheel builds
  • Sealed stainless steel cartridge bearings
  • Machined from forged 2014 T6 aluminium billet
  • Fully serviceable and rebuildable with simple tools
  • Swappable end caps for other axle standards

Stiffness where it counts

Hope's Boost front uses a wider hub body than its standard 100mm hub, moving the flanges outboard to improve wheel stiffness. The new body profile adds stiffness without adding weight.

Easy to live with

End spacers swap easily to suit different frames and axles, and the whole hub can be serviced with simple tools. Wheel building and hub servicing are separate Tune Cycles workshop services, not included in the price — book a workshop service.

Options

ColourDrillingAxle
Black, Blue, Orange, Purple, Red, Silver32 hole110 x 20mm Boost

Compatibility & fit

For forks with 110 x 20mm Boost spacing. Hope offers 15mm Boost and Torq end caps for this hub (sold separately). The Boost 110 body is different from the 100mm front hub, so it cannot be converted to non-Boost spacing.

Hope Technology covers its components for two years from the original date of purchase against manufacturer defects in material and workmanship. Proof of purchase is required, and damage caused by misuse or by not following Hope's instructions is not covered. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • Boost 110mm hub body with outboard flanges
  • Set up for 20mm thru-axle
  • 32 hole drilling
  • Sealed stainless steel cartridge bearings
  • Forged 2014 T6 aluminium billet shell
  • 6-bolt disc mount
HubHope Pro 5 Boost front
Axle110 x 20mm Boost
Drilling32 hole
Disc mount6-bolt
BearingsSealed stainless steel cartridge
Shell materialForged 2014 T6 aluminium
OptionsColour: Black, Blue, Orange, Purple, Red, Silver
