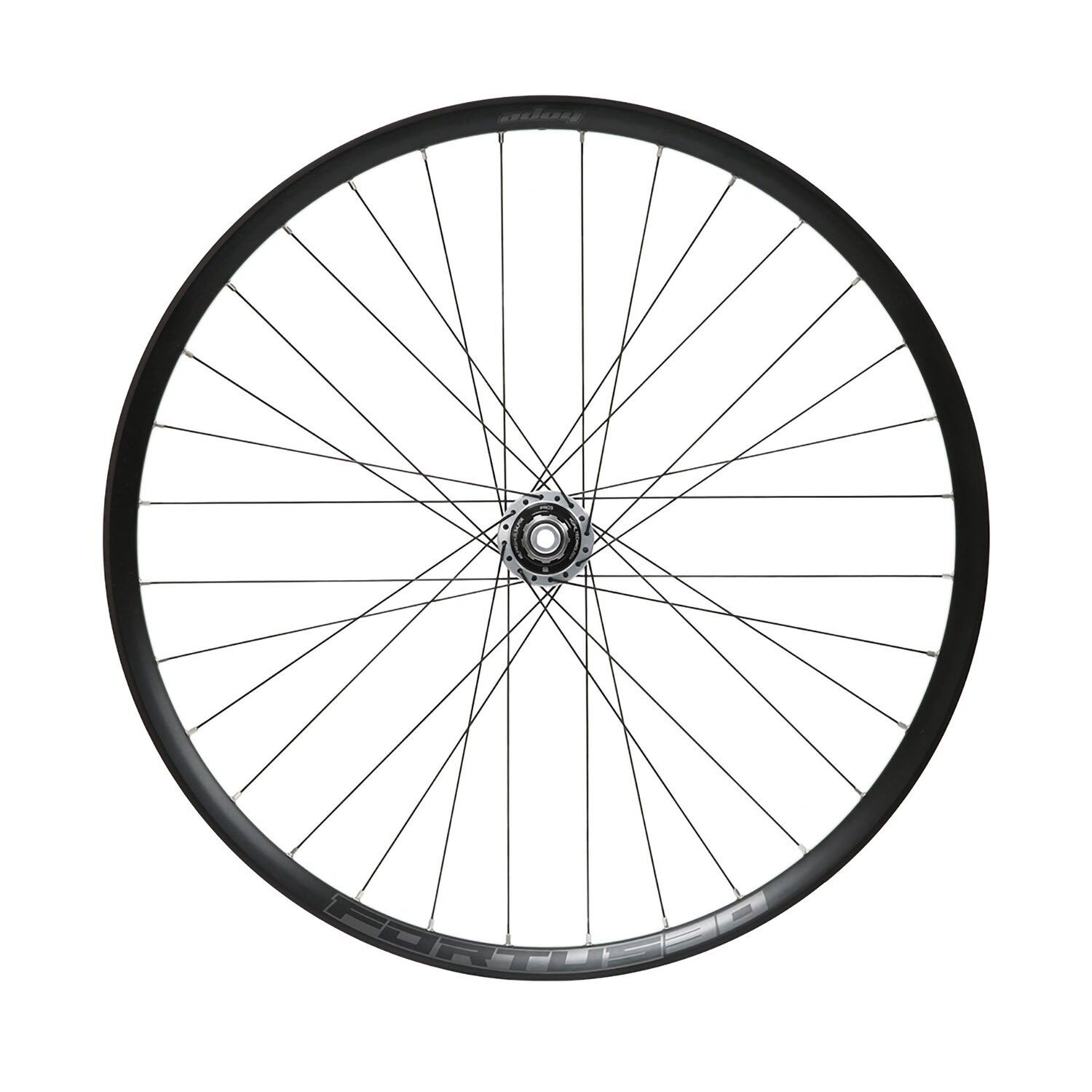

Built for the extra torque and weight of an e-MTB, the Hope Fortus 30 E-Bike rear wheel pairs a wide 30mm alloy rim with Hope's e-bike-specific Pro 5 hub and a steel freehub body – machine built and hand finished in Barnoldswick, England.

Highlights

  • Pro 5 E-Bike hub with a steel freehub body for durability under motor torque
  • 54 points of engagement from an updated 4-pawl design with wire-cut high-strength steel pawls
  • 30mm internal rim width, optimised for 2.4"–2.8" tyres
  • 148 x 12mm Boost, 6-bolt disc mount
  • Tubeless ready – 32mm tape, valve and wipe included

E-bike-specific Pro 5 hub

The Pro 5 E-Bike hub trades outright engagement for strength: an updated 4-pawl ratchet gives 54 points of engagement, the pawls are wire cut from high-strength steel, and a step-down axle design makes for a stiffer, more durable freehub. Hope's zero-drag labyrinth seal keeps dirt out, and the hub is fully serviceable and rebuildable.

Fortus 30 rim

The welded, triple-cavity 6061-T6 aluminium rim has eyelets for spoke-bed strength, a 30mm internal width (35mm external) and a 23mm profile, laced 32-hole J-bend with black Sapim Race double-butted stainless spokes and silver brass nipples.

Options

ColourWheel SizeFreehub BodyERD
Silver29"SRAM XD593mm
Silver29"Shimano HG593mm
Silver29"Shimano Microspline593mm
Silver27.5"SRAM XD555mm
Silver27.5"Shimano Microspline555mm
Silver27.5"Shimano HG555mm
Black29"SRAM XD593mm
Black29"Shimano HG593mm
Black29"Shimano Microspline593mm
Black27.5"SRAM XD555mm
Black27.5"Shimano HG555mm
Black27.5"Shimano Microspline555mm

Compatibility & fit

Suits e-MTB frames with 148 x 12mm Boost rear spacing and a 6-bolt disc rotor. Every freehub option is steel – choose Shimano HG, Shimano Microspline or SRAM XD to match your cassette. Fitting, tubeless set-up and cassette/rotor transfer are separate workshop services – book a workshop service.

Hope covers its components for two years from the original date of purchase against manufacturer defects in materials and workmanship. Damage caused by misuse, or by not following the recommendations in the manual, is not covered. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • Hope Pro 5 E-Bike rear hub, 148 x 12mm Boost, black or silver
  • 54 points of engagement, 4-pawl design
  • Steel Shimano HG, Shimano Microspline or SRAM XD freehub body
  • Step-down axle for a stiffer, more durable freehub
  • Zero-drag labyrinth seal; fully serviceable
  • Welded 6061-T6 aluminium rim with eyelets, 30mm internal
  • Black Sapim Race double-butted stainless spokes, silver brass nipples, 32h J-bend
  • 6-bolt disc mount
  • Tubeless ready: 32mm tape, valve and wipe included
RimHope Fortus 30, welded 6061-T6 aluminium with eyelets
Internal / external width30mm / 35mm
Profile depth23mm
ERD593mm (29") / 555mm (27.5")
Recommended tyre width2.4"–2.8"
HubHope Pro 5 E-Bike, 32h
Axle148 x 12mm Boost
FreehubSteel
Engagement54 points (4-pawl)
Disc mount6-bolt
SpokesBlack Sapim Race double-butted stainless, 32h J-bend
NipplesSilver brass
TubelessReady – tape, valve and wipe included
OptionsColour: Silver, Black; Wheel Size: 29", 27.5"; Freehub Body: SRAM XD, Shimano HG, Shimano Microspline
SKU BSP-HOP-P-FORTUS30PRO5EBI
Brand Hope
