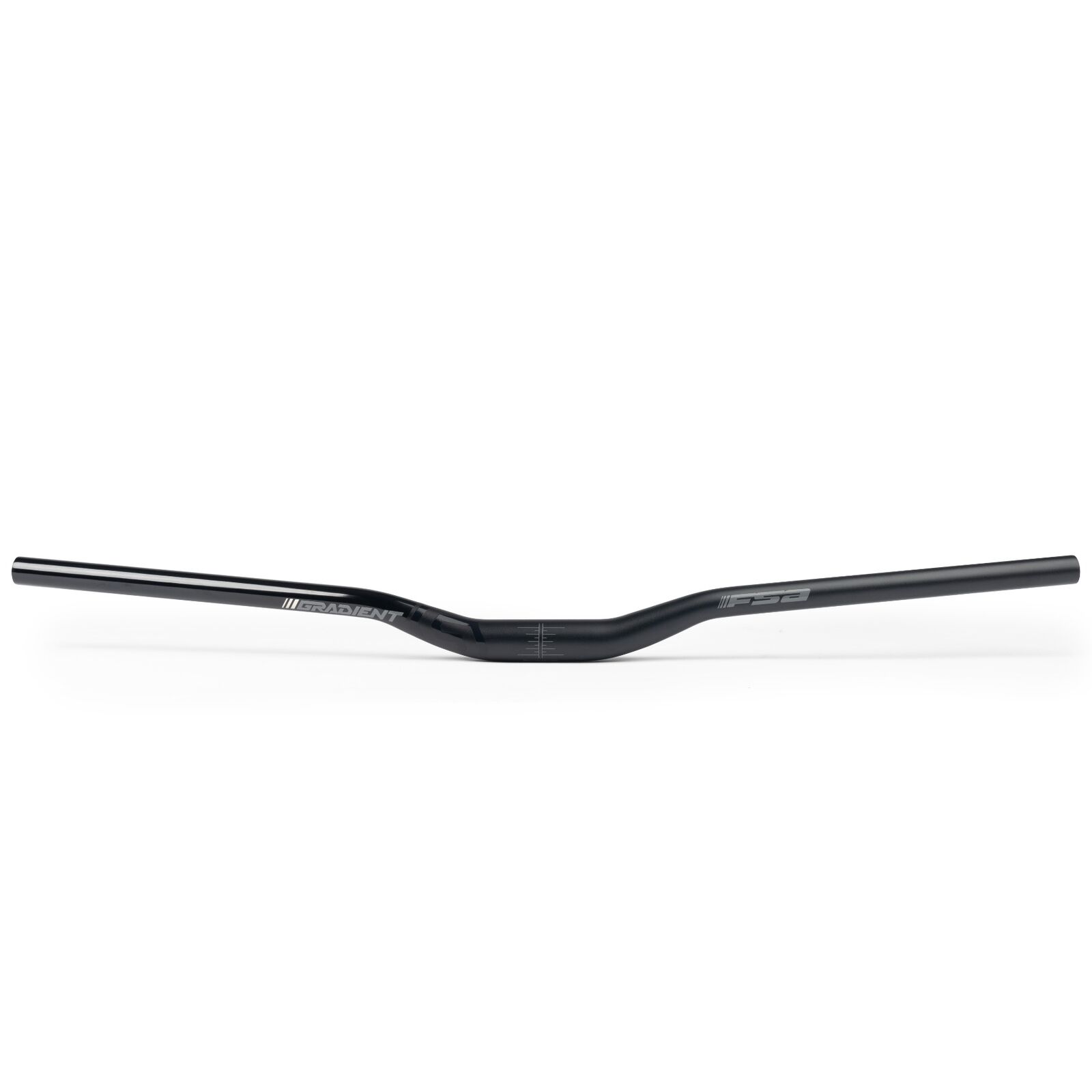

An alloy mountain bike handlebar from FSA's Gradient range, 800mm wide with a 31.8mm stem clamp.

Highlights

  • Width: 800mm
  • Clamp diameter: 31.8mm
  • Rise: 25mm
  • Sweep: 8° back, 5° up

Details

Gradient is FSA's trail, enduro and downhill range. This alloy riser is triple butted and tapered AL7050, shot peened to harden the surface, with an 800mm width you can cut to suit.

Fit and compatibility

It needs a stem with a 31.8mm bar clamp. The 8° back, 5° up sweep sets a natural wrist angle. At 800mm it's a wide trail width; you can cut it down to suit if you want it narrower.

Fitting

Swapping a bar means moving the levers, tape and any computer mount across, so it's a good time to check brake hose and cable lengths too. Our workshop can fit and wrap it for you.

If you're unsure about width, length or clamp size, tell us what's on the bike now and we'll help you pick the right one.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser. Bent bars and damage from bar ends or accessories with metal clamps aren't covered. Carbon parts must be fitted at FSA's stated torque, or the warranty doesn't apply.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Clamp diameter: 31.8mm
  • Width: 800mm
  • Rise: 25mm
  • Sweep: 8° back, 5° up
  • Setback: 15mm
  • Material: Triple butted AL7050/T6
Clamp diameter31.8mm
Width800mm
Rise25mm
Sweep8° back, 5° up
Setback15mm
MaterialTriple butted AL7050/T6
Weight322g
SKU BPW-FSA-0113
Model # FSA-0113
Barcode # 4711233868973
Brand FSA
Shipping Weight 0.3500kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.800m
