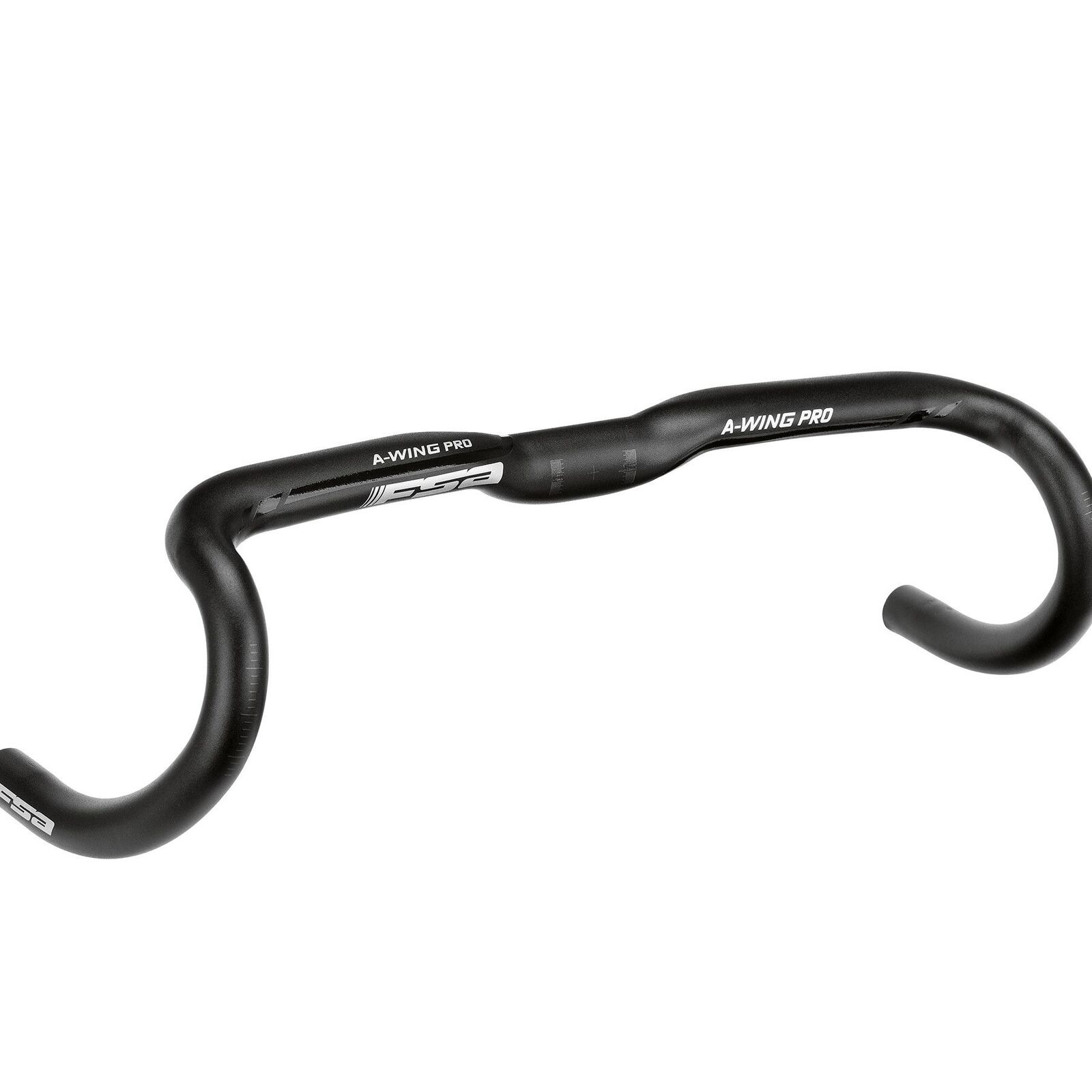

An alloy gravel handlebar from FSA's A-Wing Pro AGX range, 420mm wide with a 31.8mm stem clamp.

Highlights

  • Width: 420mm
  • Clamp diameter: 31.8mm
  • Drop: 121mm
  • Reach: 88mm
  • Rise: 2.5mm
  • Routing: ACR compatible

Details

A-Wing Pro is FSA's alloy bar for adventure, gravel and cyclocross. The drops flare outward for control and clearance on descents, the hoods and drops are sculpted for comfort, and the bar is compatible with FSA's ACR integrated cable routing.

Fit and compatibility

It needs a stem with a 31.8mm bar clamp. With a 121mm drop and 88mm reach, it's a shallow shape that keeps the drops within easy reach. 420mm is the most common road width and suits riders of average build.

Fitting

Swapping a bar means moving the levers, tape and any computer mount across, so it's a good time to check brake hose and cable lengths too. Our workshop can fit and wrap it for you.

If you're unsure about width, length or clamp size, tell us what's on the bike now and we'll help you pick the right one.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser. Bent bars and damage from bar ends or accessories with metal clamps aren't covered. Carbon parts must be fitted at FSA's stated torque, or the warranty doesn't apply.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Clamp diameter: 31.8mm
  • Width: 420mm
  • Drop: 121mm
  • Reach: 88mm
  • Outward bend: 15°
  • Rise: 2.5mm
  • Routing: ACR compatible
Clamp diameter31.8mm
Width420mm
Drop121mm
Reach88mm
Outward bend15°
Rise2.5mm
RoutingACR compatible
Weight296g (420mm)
SKU BPW-FSA-0102
Model # FSA-0102
Barcode # 4710243883617
Brand FSA
