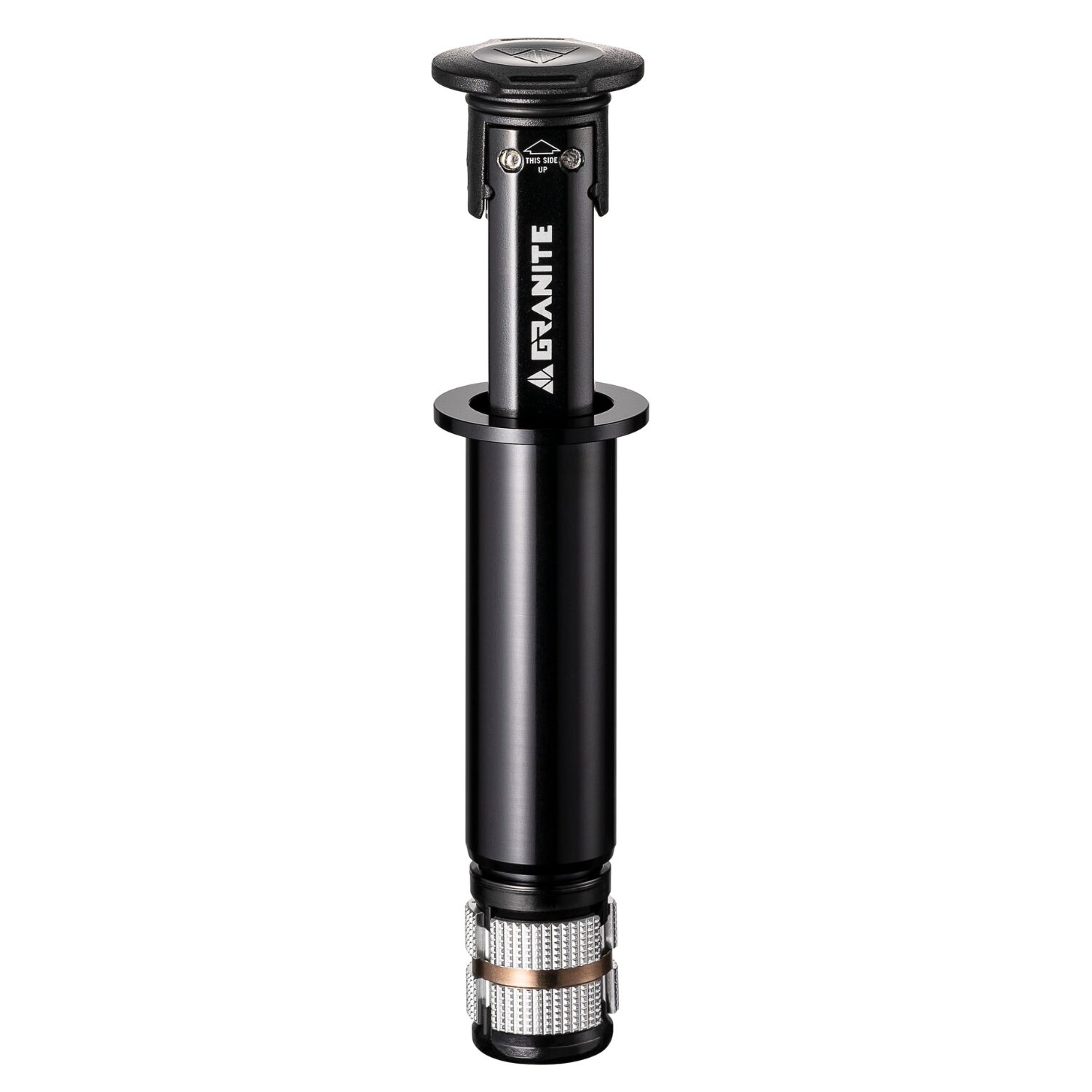

Your multi-tool, hidden in your fork. STASH RCX stores a folding multi-tool and a spoke key inside the steerer tube, so the tools are on the bike every ride and out of sight until you need them.

Highlights

  • 8 functions: 2, 2.5, 3, 4, 5 and 6 mm hex, T25 and a flat-head
  • Spoke key for 0, 1, 2 and 3 nipples that also removes a Presta valve core
  • Compression plug replaces the star nut, with no tapping
  • Fits closed carbon road and gravel forks
  • AL6061 body, CR-V steel bits, 110 g
  • Design & Innovation Award 2021

Installation

Remove the stem and the old star nut or compression plug. The supplied compression plug tightens to 8 Nm with the 6 mm key, then the M6 bolt sets headset preload at 1 to 2 Nm with the 5 mm key; both keys are in the box. Pull the top cap and the tool lifts out, ready to use. Prefer it done for you? Our workshop can fit STASH RCX and set your headset preload.

Compatibility & fit

Fits round, threadless steerers with a 23.5 to 27 mm inner diameter, with or without an open end at the bottom of the steerer, which covers most road and gravel forks and many MTB forks. Not for threaded headsets. Inner-tapered forks such as the RockShox Pike and Lyrik or Fox 36 and 38 can foul the housing; choose STASH RT for those. Measure your steerer before ordering.

Options

ColourBlack, Orange
Covered against manufacturing defects under Granite Design's warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, Granite Design's Australian distributor.
  • 8 functions: 2, 2.5, 3, 4, 5 and 6 mm hex, T25 and a flat-head
  • Spoke key for 0, 1, 2 and 3 nipples that also removes a Presta valve core
  • Compression plug replaces the star nut, with no tapping
  • Fits closed carbon road and gravel forks
  • AL6061 body, CR-V steel bits, 110 g
  • Design & Innovation Award 2021
TypeIn-steerer folding multi-tool kit
Functions8: 2, 2.5, 3, 4, 5, 6 mm hex, T25, flat-head
Spoke keyFits 0, 1, 2, 3 nipples, plus Presta valve core remover
MaterialAL6061 tube and body, CR-V steel bits
Weight110 g
Tool body23.3 mm across, 99.7 mm long
Steerer typeRound, threadless, 23.5 to 27 mm inner diameter
Not compatibleThreaded headsets, inner-tapered forks (use STASH RT)
In the boxMulti-tool, spoke key, housing, top cap, compression plug, M6 bolt, 5 and 6 mm hex keys
SKU KWT-P-GRA-STASH-RCX
Brand Granite Design
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
