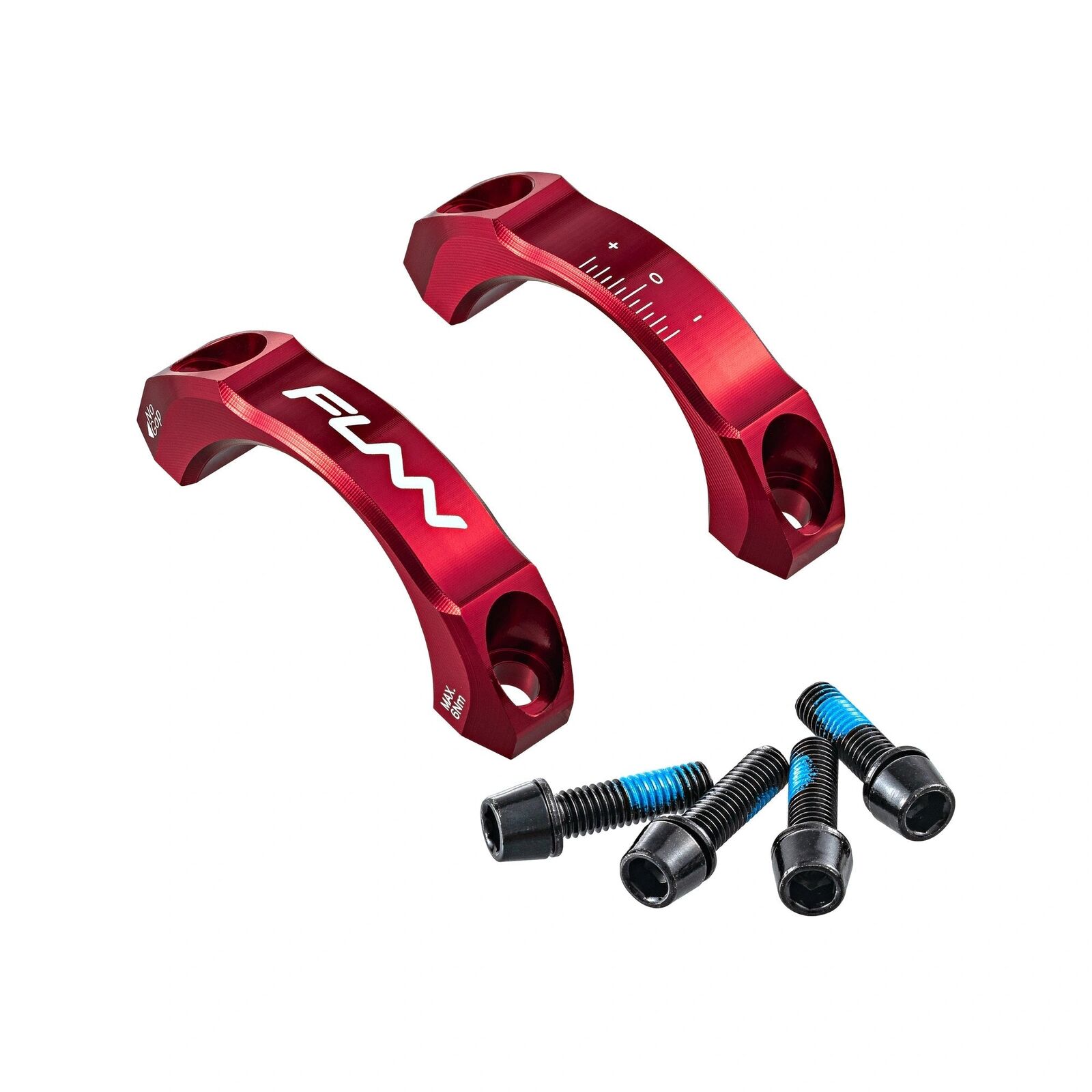

Change the look of your cockpit without changing the stem. This kit swaps the faceplates on a FUNN Equalizer or Equalizer Zero stem for a new colour, or replaces a damaged set.

Highlights

  • The full set for one stem: both face plates and their bolts
  • Machined from 6061 alloy, the same as the stem
  • Fits the Equalizer (10mm rise or drop) and Equalizer Zero in every length
  • 31.8mm or 35mm bar bore
  • Six colours

Which bore do I need?

Check the handlebar or the stem, whichever is easier to read: most bars have the clamp diameter printed near the centre, and the stem carries the same figure. 31.8mm and 35mm are not interchangeable; a 31.8mm plate will not go around a 35mm bar, and a 35mm plate cannot safely clamp a 31.8mm bar.

Fitting

Start all the bolts by hand. Tighten the upper plate first until the gap between it and the stem body is fully closed, then tighten the lower plate. Use a torque wrench and stay within the figure marked on the stem; an overtightened bar clamp is the usual reason a handlebar ends up marked or crushed. Our workshop can fit them as a separate service.

Compatibility & fit

  • FUNN Equalizer stems (10mm rise / drop), all lengths
  • FUNN Equalizer Zero stems, all lengths
  • Choose the bore that matches your stem and bar: 31.8mm or 35mm
  • Not compatible with any other stem

Sizes & options

Bar boreColour
31.8mm StemBlack
31.8mm StemRed
31.8mm StemGrey
31.8mm StemBlue
31.8mm StemOrange
31.8mm StemGreen
35mm StemBlack
35mm StemRed
35mm StemGrey
35mm StemBlue
35mm StemOrange
35mm StemGreen
This FUNN product is covered against defects in materials and workmanship. Normal wear, crash or impact damage, and damage from incorrect fitting or misuse are not manufacturing defects, and your rights under Australian Consumer Law are not affected. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, FUNN's Australian distributor.
  • Replacement faceplates for FUNN Equalizer stems
  • Both plates and bolts for one stem
  • 6061 alloy
  • 31.8mm or 35mm bore
  • Six colours
FitsFUNN Equalizer and Equalizer Zero stems, all lengths
Bar bore31.8mm or 35mm (by option)
ContentsBoth face plates and bolts for one stem
Material6061 alloy
ColoursBlack, Red, Grey, Blue, Orange, Green
SKU KWT-P-FN-EQFACE
Brand FUNN
Shipping Weight 0.2600kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
