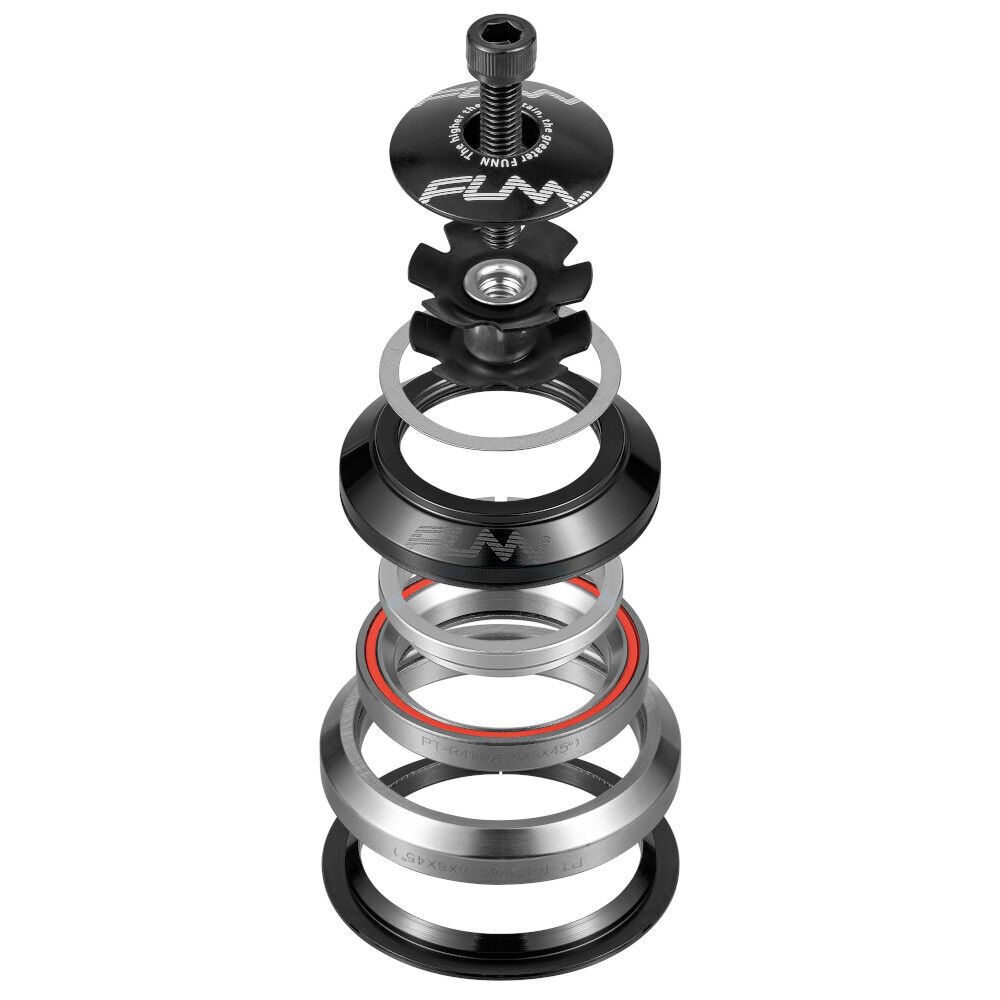

Smooth, precise steering starts at the headset. The Descend Integral replaces a worn integrated headset in one purchase, with both bearings, the crown race and the headset cap in the box.

Highlights

• IS41/28.6 upper and IS52/40 lower
• High-strength steel angular contact cartridge bearings
• Crown race machined from AL6061
• Headset cap included
• 0mm stack height top and bottom
• 60g upper, 36g lower

Integral fit

On an integral (IS) frame the bearings drop straight into a seat machined into the head tube, with no cup pressed in. That is why the stack height is 0mm at both ends: nothing sits proud of the frame.

IS41 or IS42?

A 41mm and a 42mm upper bearing seat look the same by eye, so measure the bore or check your frame maker's specification before ordering. FUNN also makes this headset with an IS42/28.6 upper; the lower is IS52/40 on both.

Fitting

The bearings drop in, so nothing is pressed into the frame. The crown race does need pressing onto the fork steerer; our workshop can fit the headset and set the crown race as a separate job.

Compatibility & fit

For integral (IS) head tubes with a 41mm upper and 52mm lower bearing seat, and a fork steerer that is 28.6mm at the top bearing and 40mm at the crown race. Spacers are not included.
