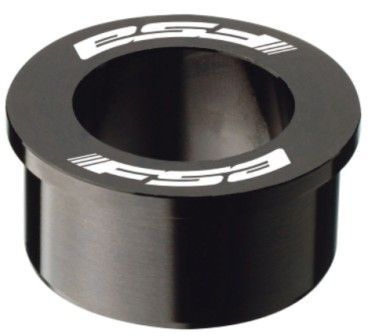

An FSA headtube reducer that lets a 1-1/8in headset fit a 1.5in head tube. It's sold individually, so order two for a complete head tube (one for the top, one for the bottom).

Highlights

  • Converts: 1.5in head tube to take a 1-1/8in headset
  • Inside diameter: 34mm
  • Outside diameter: 49.75mm, 20mm deep
  • Lip: 55mm OD x 4mm deep
  • Quantity: Sold individually
  • Finish: Black

Details

Reducers are a simple way to run a straight 1-1/8in fork and headset in a frame built for 1.5in. Each reducer presses into the head tube like a headset cup and gives a 1-1/8in bearing seat.

Fit and compatibility

It has a 34mm inside diameter and a 49.75mm outside diameter that presses 20mm into the head tube, with a 55mm lip. Check your head tube's inside diameter before ordering.

Fitting

A headset needs clean, correctly sized cups and the right preload once the stem is fitted. Our workshop can press it in and set it up for you.

Headset fit depends on the frame, so send us your frame model or cup measurements and we'll check it before you order.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Converts: 1.5in head tube to take a 1-1/8in headset
  • Inside diameter: 34mm
  • Outside diameter: 49.75mm, 20mm deep
  • Lip: 55mm OD x 4mm deep
  • Quantity: Sold individually
  • Finish: Black
Converts1.5in head tube to take a 1-1/8in headset
Inside diameter34mm
Outside diameter49.75mm, 20mm deep
Lip55mm OD x 4mm deep
QuantitySold individually
FinishBlack
SKU BPW-8118
Model # 8118
Barcode # 9339506042735
Brand FSA
