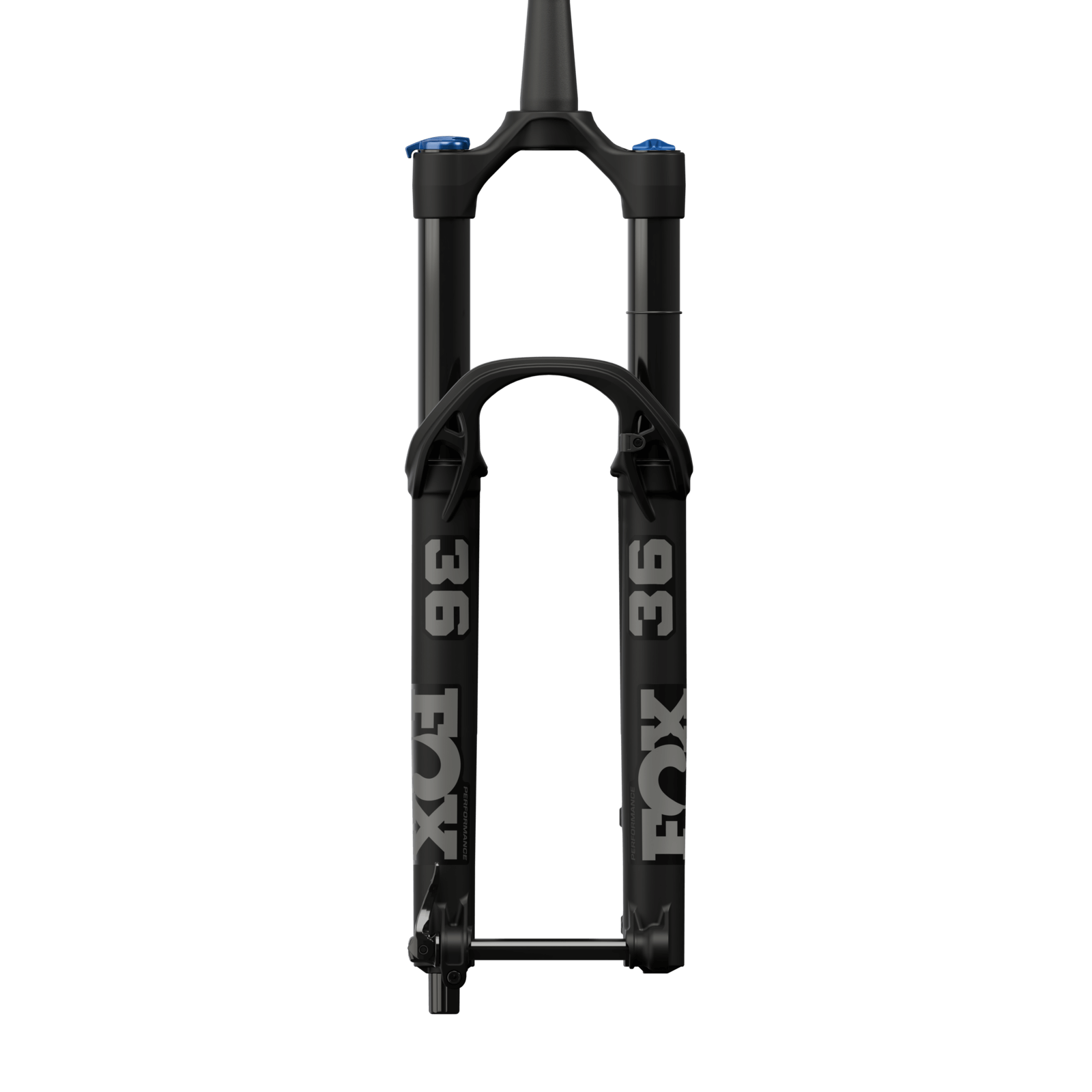

The 36 chassis brings big-fork confidence to all-mountain riding. The Performance version keeps the same engineering as the Elite and Factory forks with the durable, easy-to-set-up GRIP damper.

Highlights

• 160mm of travel on a 29in, 44mm offset chassis
• GRIP damper with pressure balancing, three compression positions and 10 clicks of rebound
• Arch design with 20% more torsional stiffness than the previous 36
• 36mm black anodised upper tubes, matte black lowers
• 15 x 110mm Boost QR axle and 200mm post mount brakes

36 chassis

Greater steering stiffness and smoother travel give the 36 an enduro feel without the weight. The generatively designed arch wraps around the lowers to raise torsional stiffness by 20% over the previous 36, with cut-outs to save weight, and the fork has air channels and bleeders.

GRIP damper

The GRIP damper is updated with pressure balancing and uses a durable, self-healing spring-backed internal floating piston. Three on-the-fly compression positions with micro-adjust between Open, Medium and Firm, plus 10 clicks of rebound, keep set-up quick and simple.

Fitting and Fox service

Fork installation is a separate workshop service and isn't included. As an authorised Fox service centre, our Marrickville workshop can fit the fork to your bike (steerer cut, crown race and star nut), set sag and damping for your weight and riding, and look after its scheduled Fox servicing from there.

Compatibility & fit

For 29in wheels with a 15 x 110mm Boost hub and a 1.5in tapered steerer. Axle-to-crown is 576.0mm. Brakes are 200mm post mount direct, up to 230mm rotors with the right adapter. Maximum tyre size is 29 x 2.6in. Fox rates the 36 for EN 17406 category 4 use with a maximum system weight of 140kg, and lists it as compatible with Class 1 and L1e-A e-bikes. Check your frame's allowable fork travel before you order.
