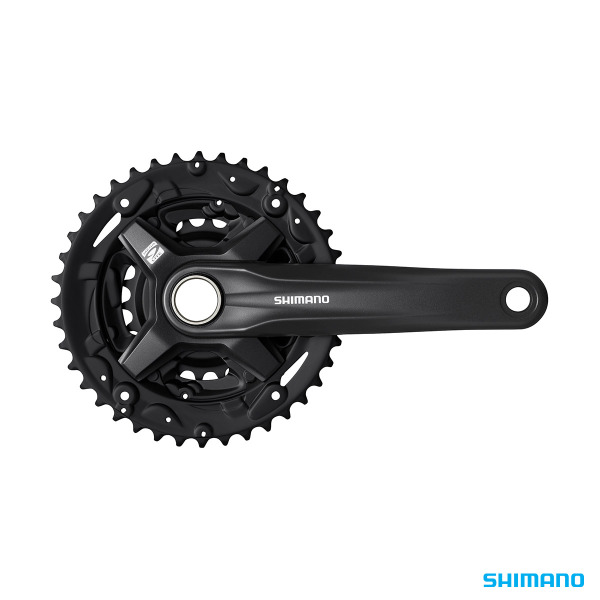

FC-MT210-3

SHIMANO - 2-PIECE CRANKSET - MTB - 3x9-speed

With a 2-piece construction compatible with outboard 24mm bottom brackets, the SHIMANO FC-MT210-3 is designed for 3x9 speed MTB drivetrains. It features SG-X chainrings and precise, reliable shifting.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • Smooth and precise shifting performance for trail focused riders
  • Narrow Q-factor provides comfortable MTB riding
  • HYPERDRIVE
  • Cascading higher series MTB image
  • Anodized crank
  • 2-PIECE CRANKSET
  • MODEL NO: FC-MT210-3
  • ACERA M3000 Series
  • Color: Black
  • Remarks: SHIMANO logo
  • 2-PIECE CRANKSET
  • Chain line: 50(mm)
  • Chainring combination: 44-32-22T 40-30-22T
  • Compatible bottom bracket type Outboard
  • Compatible chain: HG 9-speed
  • Crank fixing bolt included
  • Crank arm length 170(mm)
  • Crank arm length 175(mm)
  • Spider/Gear arms
  • Optional chain guard With chain guard
  • Optional chain guard Without chain/bash guard
  • P.C.D: Riveted
  • Rear speeds: 9
  • Recommended bottom bracket Press-fit: BB-MT500-PA
  • Recommended bottom bracket Threaded (normal): BB-MT500
  • Stainless chain guard fixing bolt
  • Threaded bottom bracket shell width 68(mm)
  • Threaded bottom bracket shell width 73(mm)
  • Q-factor: 176(mm)
  • Chain line: 50(mm)
  • Compatible chain: HG 9-speed
  • O.L.D. QR/Nut: 135(mm)
  • O.L.D. Thru: 142(mm)
SKU SHM-EFCMT2103EX002CL
Barcode # 4524667881964
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
