FC-A070

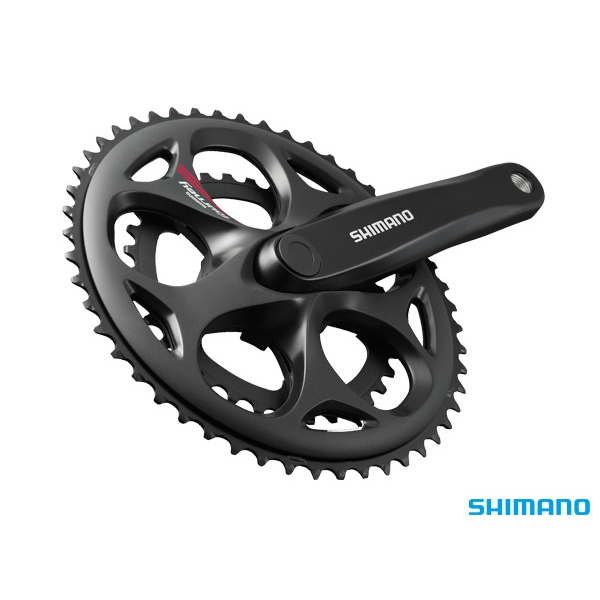

SHIMANO TOURNEY A070- Road Crankset 2x8/7-speed

The SHIMANO TOURNEY A070 crankset is compatible with 2x7 and 2x8 drivetrains and provides compact 50-34T gearing. It uses a square taper bottom bracket interface and is available in 165 and 170mm crankarm lengths.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • 50-34T
  • 8/7-speed compatible
  • MODEL NO: FC-A070
  • TOURNEY A070 Series
  • Series color
  • Threaded Axle length of BB-UN/ES: MM110
  • Square type Compatible bottom bracket
  • HG compatible chain
  • Crank arm length: *165mm *170mm
  • Spider/Gear arms: 5
  • Optional chain/bash guard
  • left/right Riveted P.C.D.
  • Recommended BB-UN300 Threaded bottom bracket
  • Threaded bottom bracket shell width: *70mm *68mm
  • Q-factor: 169mm
  • Chain line: 43.5mm
SKU SHM-EFCA070C04X
Barcode # 4524667304944
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
