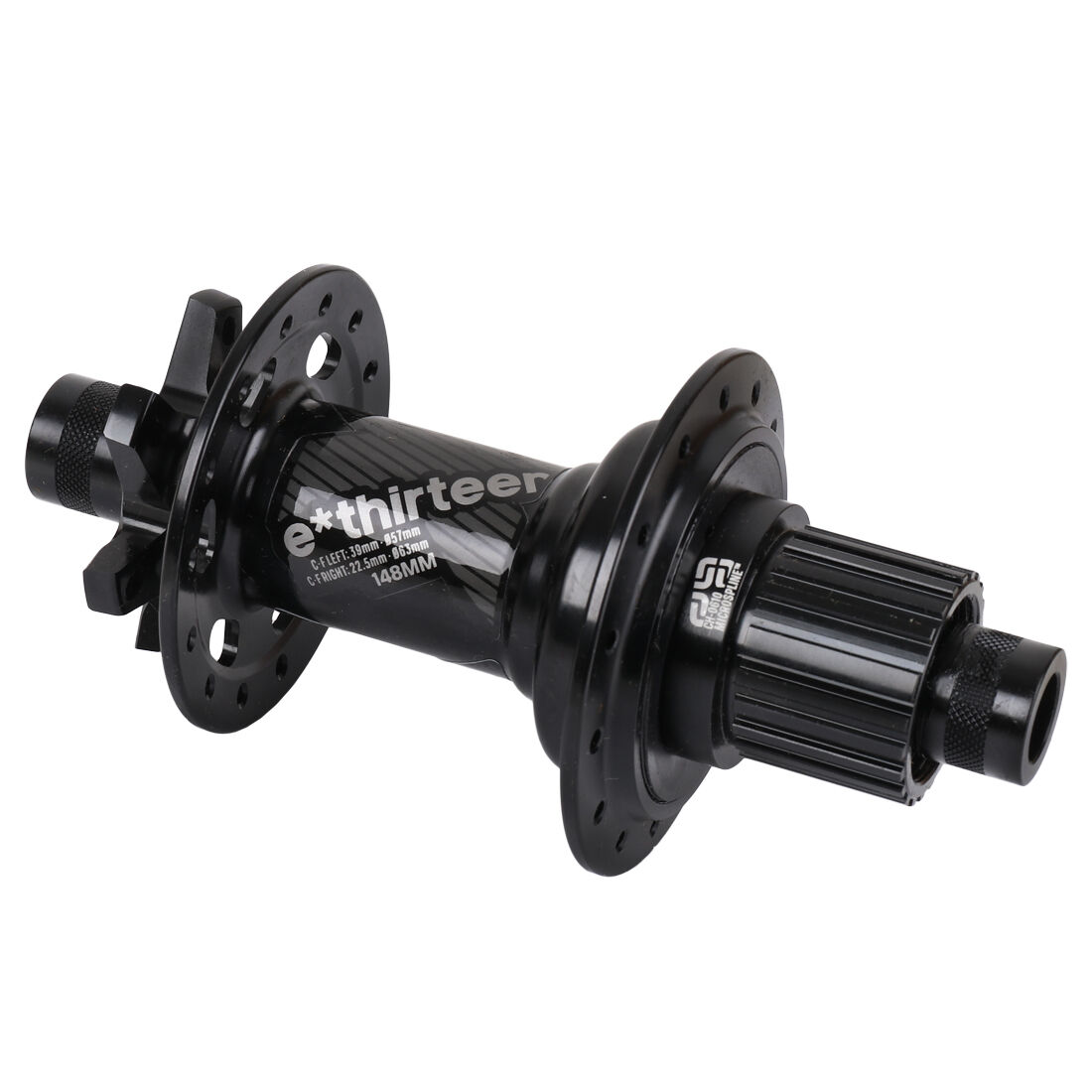

A weight-optimised rear hub for cross-country and marathon racing, with a Microspline freehub and a 28-hole J-bend build.

Highlights

  • CNC-machined aluminium shell, claimed 296g
  • 148×12mm Boost thru-axle spacing
  • Shimano Microspline freehub body
  • 3-pawl, 6° engagement
  • 28-hole, J-bend spoke drilling, 6-bolt disc mount
  • Captive End Cap System for tool-free servicing

Built for racing, not everyday abuse

e*thirteen pared back the shell diameter and CNC-machined the flanges to hit a genuine XC race weight, with the flange angles and chamfered spoke holes calculated to reduce stress on lightweight J-bend spokes.

Compatibility & fit

Rear hub only — pair with the matching Ultralight XCX Race front hub. The Microspline freehub fits Shimano 12-speed MTB cassettes only, not HG, XD or XDR. Fits 148×12mm Boost frames with a 6-bolt rotor.

e*thirteen's Infinite Ride Warranty covers this hub's bearings for life (the Free Speed Hub Bearing warranty) and the rest of the hub for 10 years against manufacturing and material defects. Normal wear, crashes, modifications and commercial use are excluded. For warranty support, return the product to Tune Cycles and we'll manage the claim with e*thirteen's Australian distributor. This is in addition to your rights under the Australian Consumer Law — keep your proof of purchase.
  • 148×12mm Boost thru-axle
  • Microspline freehub, 3-pawl/6° engagement
  • 28-hole, J-bend, 6-bolt disc mount
  • Claimed 296g
  • Tool-free Captive End Cap System
Axle148×12mm Boost
FreehubShimano Microspline
Engagement3-pawl, 6°
Hole count28H
Spoke typeJ-bend
Rotor mount6-bolt
MaterialAluminium
Weight296g (claimed)
ColourBlack
SKU DTW-ETG-HURULISR14828MS
Barcode # 4710751507937
Brand e*Thirteen
Shipping Weight 0.7600kg
