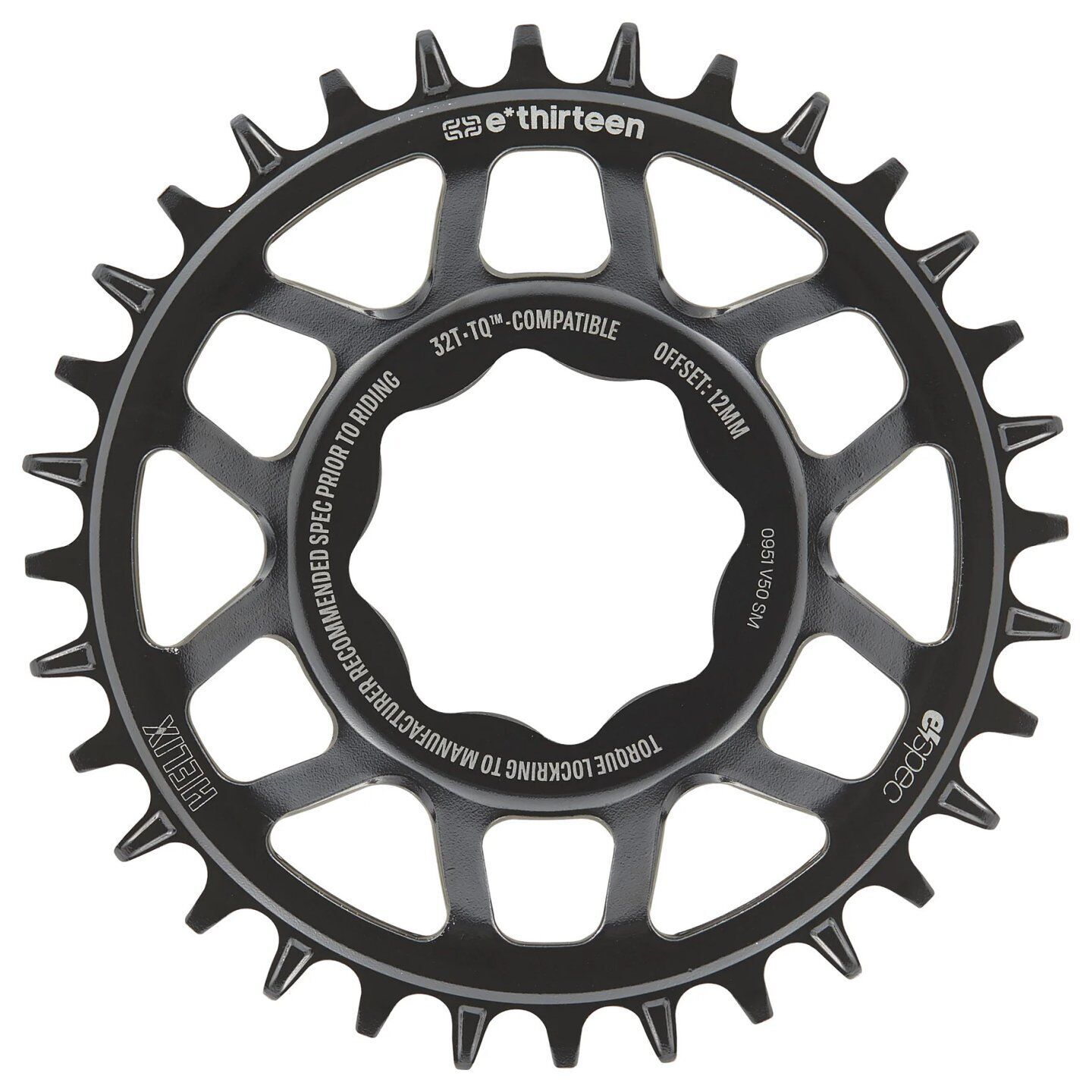

A steel direct mount chainring built for TQ HPR50 e-MTB drive units, sized to handle motor torque without the noise or wear of an alloy ring.

Highlights

  • 32T, for TQ HPR50 drive units
  • 55mm chainline, 12mm offset
  • 4040 steel, cold-formed and heat-treated
  • M4 narrow-wide tooth profile for chain retention
  • Direct mount, black

Compatibility & fit

Fits e*thirteen's e*spec direct mount interface on TQ HPR50 e-MTB cranksets; the 12mm offset and 55mm chainline are specific to the HPR50 version of this ring, so check your motor before ordering. Compatible with Shimano and SRAM 11/12-speed drivetrains. The Tune workshop can fit it as part of an eMTB drivetrain service.

e*thirteen's standard warranty covers this product for 10 years against manufacturing and material defects; normal wear, crash damage and misuse aren't covered, though e*thirteen's Infinite Ride programme offers a discounted replacement after a crash. For warranty support, return the product to Tune Cycles and we'll manage the claim with e*thirteen's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 32T, for TQ HPR50 drive units
  • 4040 steel, heat-treated
  • 55mm chainline, 12mm offset
  • M4 narrow-wide tooth profile
  • Direct mount, black
Brande*thirteen
ModelHelix Core e*spec
Motor fitTQ HPR50
Teeth32T
Material4040 steel
Chainline55mm
Offset12mm
MountDirect mount
ColourBlack
Part numberCR5HSA-100
SKU DTW-ETG-CR5HSA-100
Barcode # 4711280345885
Brand e*Thirteen
