DT Swiss EXC330 Hope Pro 5 hand-built wheelset

A DT Swiss EXC330 rim set laced 32-spoke front and rear to Hope Pro 5 hubs, built by hand in our Marrickville workshop, tensioned, stress-relieved and trued before it leaves the bench. Our Pro wheel build and tubeless tape fitted are included and show as two free lines in your cart.

Before you order — what your bike decides

  • Wheel size — 29", 27.5" or mullet; mullet means 29" front and 27.5" rear. Read it off your tyre sidewall.
  • Rear axle — Boost 12 × 148 or Super Boost 12 × 157. Boost 12 × 148 is most modern MTBs, Super Boost 12 × 157 some Pivot and Knolly frames, 12 × 142 older frames: measure the inside of the dropouts.
  • Front axle — Boost 15 × 110 or Boost 20 × 110. Boost 15 × 110 on most modern forks, 20 × 110 on DH forks, 15 × 100 on older forks: check the fork lowers.
  • Rotor mount — 6-bolt or Centre Lock: look at your rotors (six bolts, or a splined centre with a lockring).
  • Cassette — the freehub body follows it: Shimano 12-speed MTB is Micro Spline, SRAM Eagle is XD, Shimano 11-speed and older (and CUES LG) is HG. Offered here: Shimano HG, Shimano Micro Spline or SRAM XD.

Choose the same rotor mount front and rear unless your rotors differ. Colour: pick front and rear separately.

Who it is for

For enduro and aggressive trail riding — an ASTM 5 enduro rim in PURE Carbon. For downhill and bike-park days see the FR541 kits; on an e-bike the EXC330 350 Hybrid Centre Lock set.

The rider's questions

  • How much can it carry? Max system weight (rider, bike and gear) 130 kg — the DT Swiss EXC330 rating, the lowest-rated part of the build.
  • What tyres fit? 2.1–2.7" tyres are DT's recommended range for a 30 mm inner width; 1.85"–2.05" and 2.8" are possible. Hookless (TSS) rims: fit tubeless or tubeless-ready tyres only, with or without a tube, and never go above the tyre's marked maximum pressure.
  • E-bike? Not this build: for an e-bike take the EXC330 350 Hybrid Centre Lock set, built on DT Swiss's e-bike hubs.
  • How fast does the hub engage? 108 points of engagement — Hope Pro 5 (6 pawls, 3 engaged), 3.33° between clicks.
  • Warranty? DT Swiss parts 24 months from purchase; Hope hubs under Hope's manufacturer warranty through the Australian distributor; our build work is guaranteed. Any claim comes back to Tune Cycles — see the Warranty tab.
  • How long does it take? Built to order from supplier stock — we confirm the build date by email when you order.
  • Colours? Hubs in Black, Silver, Blue, Bronze, Orange, Purple or Red; the rims are black.

Kit includes

Options: rim diameter 29", 27.5" or mullet · rotor mount 6-bolt or Centre Lock · front axle Boost 15 × 110 (Boost 20 × 110) · rear axle Boost 12 × 148 (Super Boost 12 × 157) · freehub Shimano HG, Shimano Micro Spline or SRAM XD · hub colour Black, Silver, Blue, Bronze, Orange, Purple or Red · tubeless valves (50 mm, up to 2).

Everything in the Wheelset box is built in. The rows under Upgrades are optional: tick what you want and the price updates. If you want us to lace a rim or hub you already own, that is a workshop job — contact us for a quote.

Sold separately (shown with this kit): tubeless sealant (Muc-Off No Puncture 140 ml), SM-RT66 203 mm 6-bolt rotor, a cassette for your freehub body, tyres to suit (sizes above). Rotors: one per wheel, to match your rotor mount and your brake caliper's size range.

How we build it

Every wheel is laced by hand in Marrickville, brought up to tension evenly to the lower of the rim and hub limits (1200 N), stress-relieved and trued, then checked again before it is packed. Tubeless tape (32 mm) is fitted to the rim; DT packs its own 32 mm tape and a tubeless valve with each rim, so the valves come with the wheelset — the Pro build and tape are added to your cart automatically; add sealant and it is ready for tyres. The valve row below is only for spares.

Tune Cycles builds and fits these wheels. If you are unsure what your frame, fork or drivetrain takes, ask us before you order.

DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty); riding outside the rim's ASTM category voids it. Crash damage on a carbon rim is not a warranty case, but DT's Fair-Share programme replaces a first owner's crashed carbon rim for a fixed fee instead of the full price for ten years from purchase — ask us for the current Australian fee; the claim goes through Tune Cycles and Apollo. Hope hubs are covered by Hope's manufacturer warranty against manufacturing defects, handled through the Australian distributor. Our build — lacing, tension and truing — carries our workmanship guarantee. Any claim comes back to Tune Cycles: bring the wheel to Marrickville or contact us with your order number and we handle it with the brand. Wear, crash damage, corrosion and incorrect fitting are not covered.

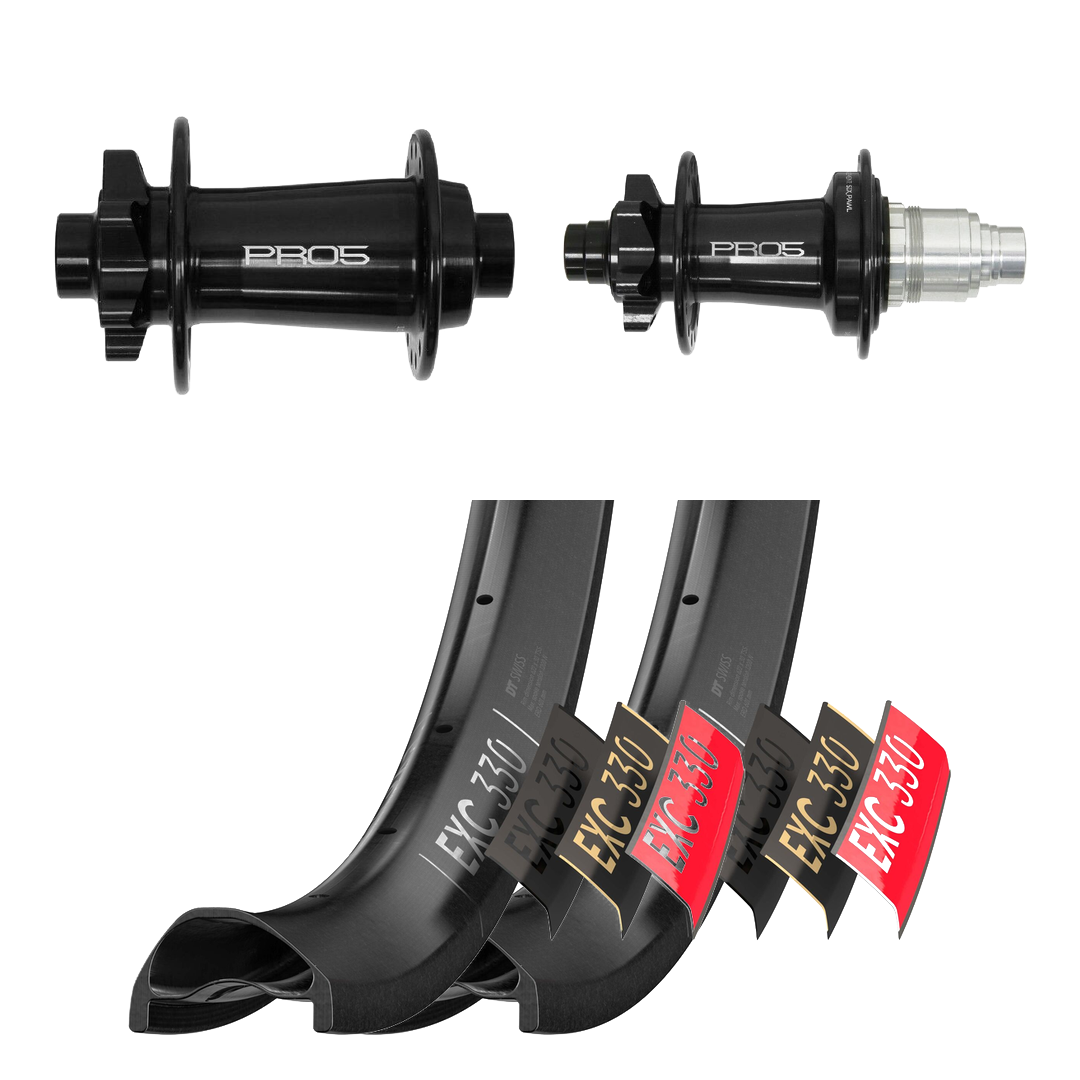

  • DT Swiss EXC330 rims — 30 mm internal, one-piece carbon (PURE Carbon, no joint), ASTM 5; 29", 27.5" or mullet
  • Hope Pro 5 hubs — 108 points of engagement, Hope Pro 5 (6 pawls, 3 engaged); 6-bolt or Centre Lock; Boost 15 × 110, Boost 20 × 110, Boost 12 × 148 or Super Boost 12 × 157; freehub Shimano HG, Shimano Micro Spline or SRAM XD
  • Spokes — 32 × DT Competition front, 32 × DT Competition rear; the DT Pro Lock flat hex alloy nipples supplied with the rims
  • Your bike's fit from the dropdowns: size, mount, axle, freehub, colour — nothing is pre-selected, choose each one
  • Hand-laced, tensioned, stress-relieved and trued in Marrickville — Pro wheel build and tubeless tape included (two free lines in your cart)
  • Editable kit: the Upgrades rows are optional and the price follows what you tick
  Front Rear
Rim DT Swiss EXC330 DT Swiss EXC330
Rim construction one-piece carbon (PURE Carbon, no joint), no eyelets one-piece carbon (PURE Carbon, no joint), no eyelets
Tyre interface hookless tubeless (TSS) — TL / TLR tyres only hookless tubeless (TSS) — TL / TLR tyres only
Diameters offered 29", 27.5" or mullet 29", 27.5" or mullet
Internal width 30 mm 30 mm
Rim depth 22 mm 22 mm
ERD 27.5" 561 mm, 29" 601 mm 27.5" 561 mm, 29" 601 mm
Spoke holes 32H 32H
Hub Hope Pro 5 Hope Pro 5
Axle Boost 15 × 110 or Boost 20 × 110 Boost 12 × 148 or Super Boost 12 × 157
Rotor mount 6-bolt or Centre Lock 6-bolt or Centre Lock
Freehub bodies — Shimano HG, Shimano Micro Spline or SRAM XD
Engagement — 108 POE — Hope Pro 5 (6 pawls, 3 engaged)
Spokes 32 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes 32 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes
Nipples The DT Pro Lock flat hex alloy nipples supplied with the rims The DT Pro Lock flat hex alloy nipples supplied with the rims
Tape fitted 32 mm tubeless tape 32 mm tubeless tape
Valves optional, 50 mm tubeless valves optional, 50 mm tubeless valves
Max spoke tension 1200 N 1200 N
Max system weight 130 kg (rider, bike and gear) 130 kg (rider, bike and gear)
Tyre width 2.1–2.7" recommended (53–69 mm) 2.1–2.7" recommended (53–69 mm)
Intended use Enduro — ASTM 5 Enduro — ASTM 5
Warranty DT Swiss parts 24 months from purchase; Hope hubs under Hope's manufacturer warranty through the Australian distributor DT Swiss parts 24 months from purchase; Hope hubs under Hope's manufacturer warranty through the Australian distributor
Built by Tune Cycles, Marrickville — Pro wheel build and tubeless tape included Tune Cycles, Marrickville — Pro wheel build and tubeless tape included
SKU WHL-BUILD-EXC330-PRO5
Brand DT Swiss
