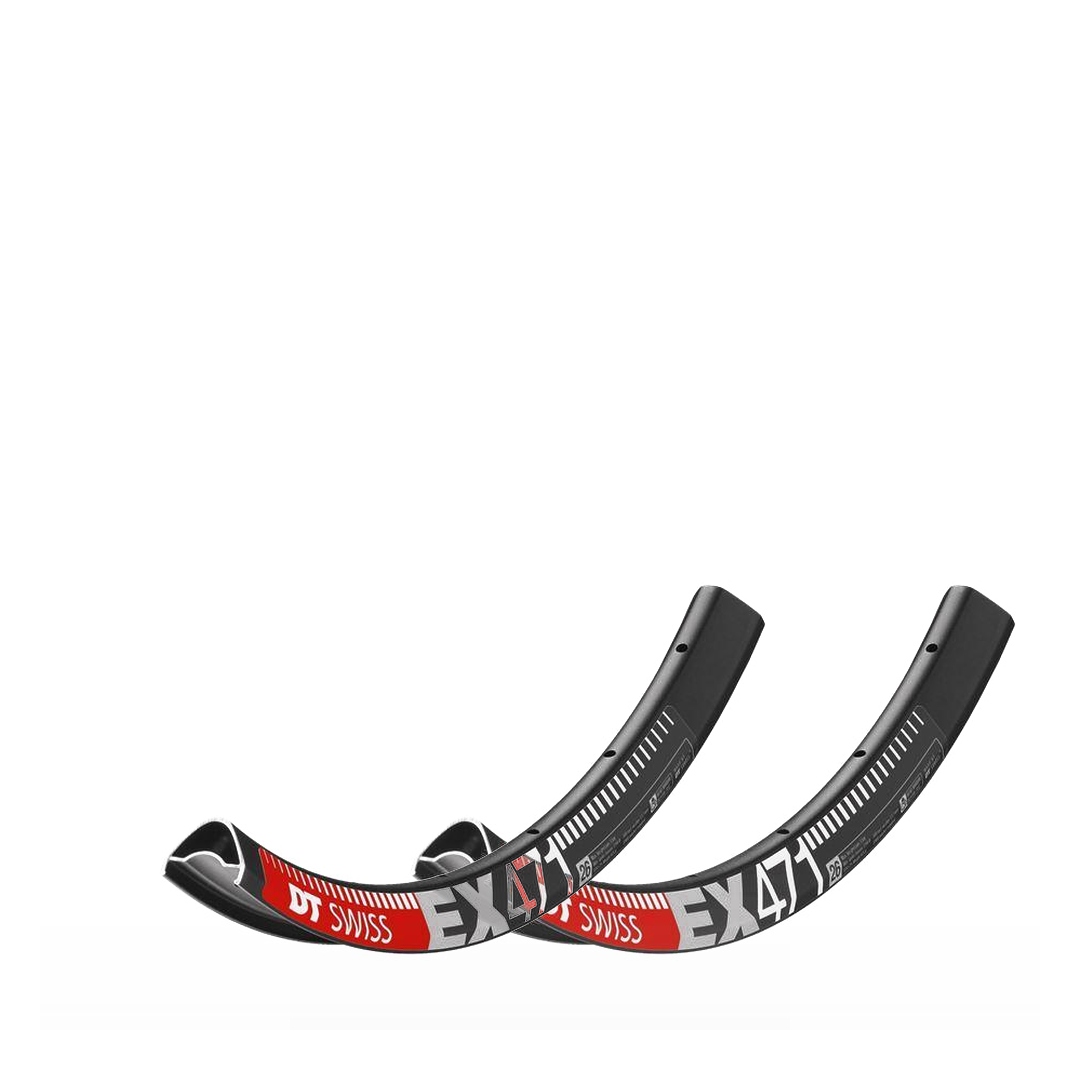

DT Rim EX471 Enduro MTB 28H Rimset 29"
SKU code: APO-DT-EX471-28-29-RIMS
In Stock
DT Swiss EX 471 rim set — 28H, 29", 27.5" or Mullet (29" front / 27.5" rear)
Two DT Swiss EX 471 rims packed as one set: the rim pair inside our hand-built enduro wheel kits, and the same pair on its own for your own build. Both rims drilled 28H.
What is in the box
- Two DT Swiss EX 471 rims in the diameter you choose — 29", 27.5" or Mullet (29" front / 27.5" rear)
- Each rim ships with DT Pro Lock Squorx alu silver + PHR washer — nothing else to buy for lacing
The rim
- 25 mm internal width, 30 mm external, 21 mm deep — sized for 1.25–2.0" tyres (DT's recommended range for a 25 mm rim)
- Welded joint, PHR spoke bed (Pro Head Reinforcement washers spread the nipple load)
- ASTM 4 — Enduro; max system weight (rider, bike and gear) 130 kg
- ERD 562 mm (27.5") / 600 mm (29") · weight 500 g (27.5") / 530 g (29") (DT's figures)
- Tubeless-ready with 27 mm tape; e-bike approved by DT (max 32 km/h / 250 W)
Warranty
DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty). Any claim comes back to Tune Cycles — bring the rim to Marrickville or contact us with your order number.
DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty); riding outside the rim's ASTM category voids it. Any claim comes back to Tune Cycles: bring the rim to Marrickville or contact us with your order number and we handle it with the brand. Wear, crash damage, corrosion and incorrect fitting are not covered.
- DT Swiss EX 471 × 2 — 28H, 29", 27.5" or Mullet (29" front / 27.5" rear)
- 25 mm internal, welded, PHR spoke bed, ASTM 4 (Enduro)
- Nipples and PHR washers in the box
- Tubeless-ready — 27 mm tape, 1.25–2.0" tyres
- Max system weight 130 kg; DT e-bike approved
- The rim pair in our hand-built enduro wheel kits — sold here on its own too
| Specification | Value |
|---|---|
| Rims | 2 × DT Swiss EX 471 |
| Diameter | 29", 27.5" or Mullet (29" front / 27.5" rear) |
| Spoke holes | 28H |
| Internal / external width | 25 mm / 30 mm |
| Rim depth | 21 mm |
| ERD | 562 mm (27.5") / 600 mm (29") |
| Weight | 500 g (27.5") / 530 g (29") |
| Joint / spoke bed | welded / PHR |
| ASTM | 4 — Enduro |
| Max system weight | 130 kg |
| Tyre width | 1.25–2.0" recommended |
| Tape | 27 mm tubeless tape |
| In the box | DT Pro Lock Squorx alu silver + PHR washer |
| Warranty | DT Swiss 24 months, claims via Tune Cycles |
| SKU | APO-DT-EX471-28-RIMSET |
| Brand | DT Swiss |
