Bosch Display Cable (BCH3611) – 2000mm
SKU code: BSP-BOS-EB1212002A
A damaged or kinked display cable can leave your Bosch Smart System dead at the handlebar. This genuine Bosch BCH3611 display cable replaces it like for like, and choosing the original length means no spare loop to hide in the frame or cockpit.
Highlights
- Genuine Bosch eBike Systems part (BCH3611)
- Thirteen lengths, from 100 mm to 2400 mm
- For Bosch Smart System wiring between the handlebar components and the system
What it does
The BCH3611 is the Bosch Smart System cable used to link handlebar components, such as the remote and display, into the eBike system. Bosch lists the existing parts as suitable for the BRC3600 remote, the BHU3600 display holder and the BDS range.
Choosing a length
Measure the cable you are replacing, or read the length off the original part, and order the same length. A cable that is too short strains the plugs; one that is too long has to be coiled away.
Lengths
| Length | Bosch part number | Note |
|---|---|---|

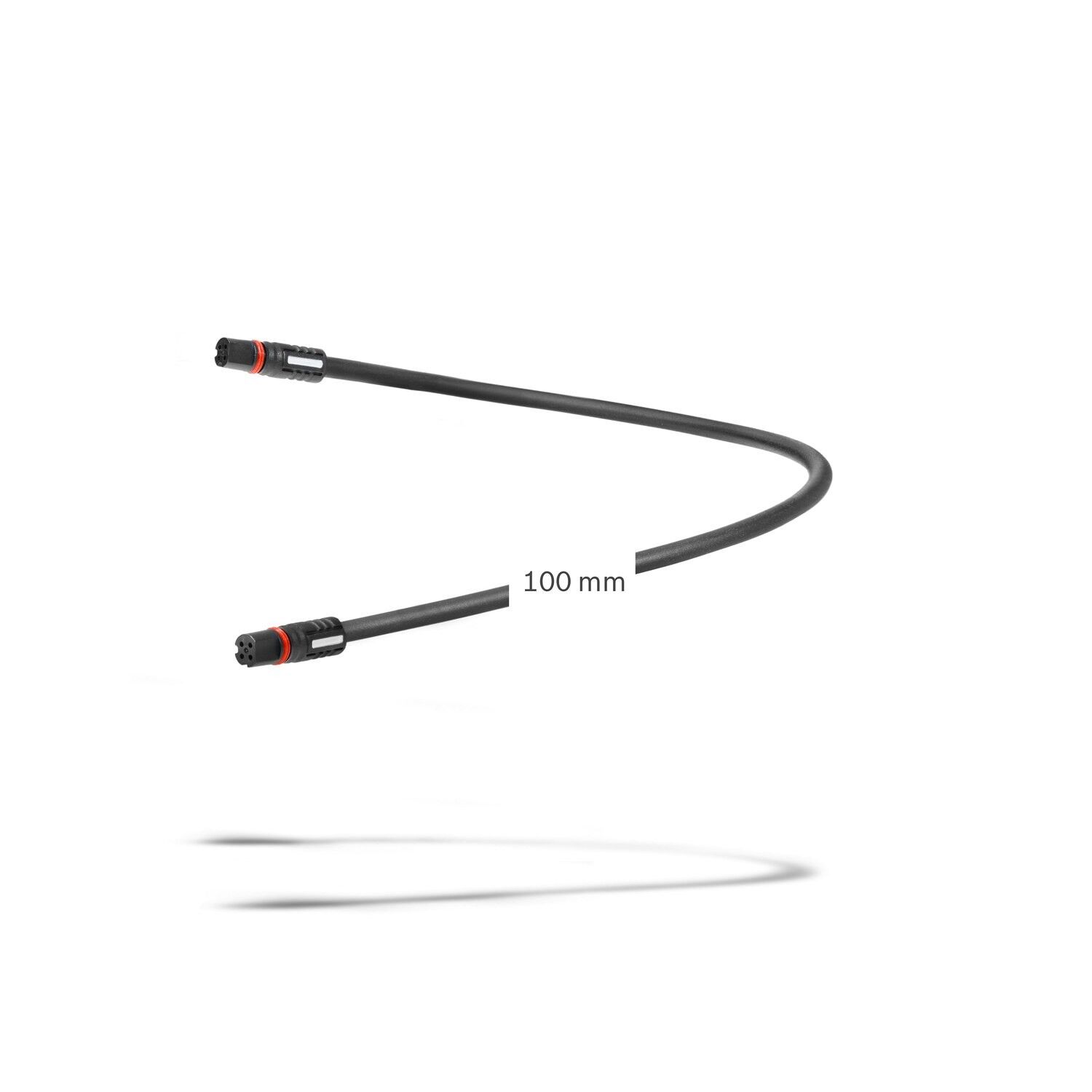

| 100 mm | EB1212003S | |
| 150 mm | EB1212000C | |
| 250 mm | EB1212000B | |
| 300 mm | EB1212000A | |
| 350 mm | EB12120009 | |
| 400 mm | EB12120008 | |
| 650 mm | EB1212002M | |
| 1000 mm | EB12120007 | |
| 1300 mm | EB12120006 | |
| 1500 mm | EB12120005 | |
| 1700 mm | EB1212002L | |
| 2000 mm | EB1212002A | |
| 2400 mm | EB1212004H | Check availability |
Compatibility & fit
For Bosch Smart System eBikes only; it is not for earlier Bosch systems. Match the length to the cable you are replacing. Fitting is a separate workshop service by Tune Cycles and is not included in the price.
This Bosch eBike Systems component is covered by Bosch’s warranty against defects in materials and workmanship; terms are set by Bosch. This is in addition to your rights under the Australian Consumer Law.
If you have a warranty concern, return the item to Tune Cycles with proof of purchase and we’ll manage the claim with Bosch.
- Genuine Bosch BCH3611 display cable
- For the Bosch Smart System
- Lengths from 100 mm to 2400 mm
- Suits the BRC3600 remote, BHU3600 holder and BDS range per Bosch part listing
- Replace like for like by length
| Specification | Details |
|---|---|
| Brand | Bosch eBike Systems |
| Type code | BCH3611 |
| Part type | Display cable |
| System | Bosch Smart System |
| Listed for | BRC3600, BHU3600, BDS |
| Lengths | 100, 150, 250, 300, 350, 400, 650, 1000, 1300, 1500, 1700, 2000, 2400 mm |
| SKU | BSP-BOS-BCH3611 |
| Brand | Bosch |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
