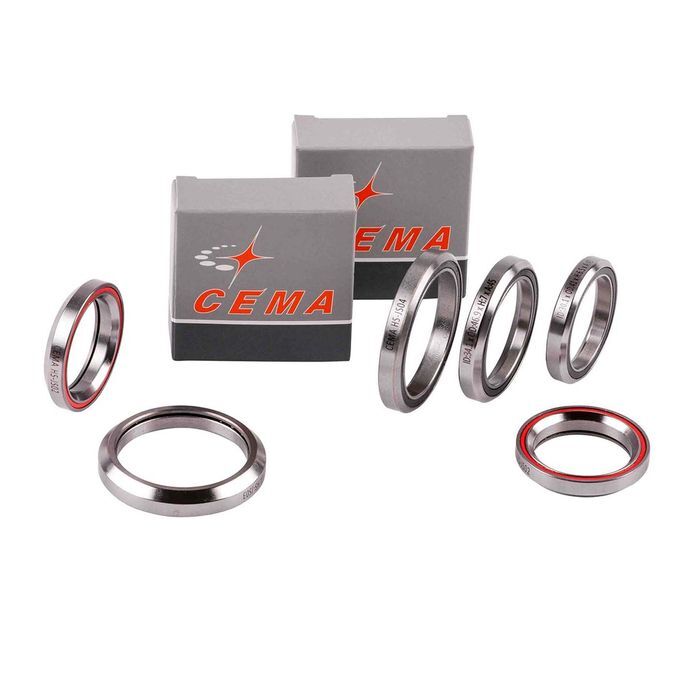

The CEMA SRC-HS-JS17 is a sealed cartridge headset bearing sized 52 x 40 x 7mm with a 36°/45° contact angle, built for 1.5" headset applications. It's a direct cartridge swap for a worn or notchy headset bearing of this exact size — no adjustment, no races to press, just drop it in.
Manufacturing defects are covered under CEMA's warranty terms. Return the bearing to Tune Cycles and we'll manage the claim on your behalf — no need to contact CEMA directly. This is in addition to your rights under the Australian Consumer Law.
  • Dimensions: 52mm OD x 40mm ID x 7mm height
  • Contact angle: 36°/45°
  • CEMA SRC chrome steel construction
  • Double-sealed design keeps lubricant in and dirt/moisture out
  • Direct cartridge replacement — no machining or pressing of races required
  • Model: SRC-HS-JS17
Outer diameter52mm
Inner diameter40mm
Height7mm
Contact angle36°/45°
MaterialChrome steel
SeriesCEMA SRC-HS
ModelSRC-HS-JS17
SKU BPW-0885
Model # 0885
Barcode # 4712910906513
Brand CEMA
Shipping Weight 0.0800kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
