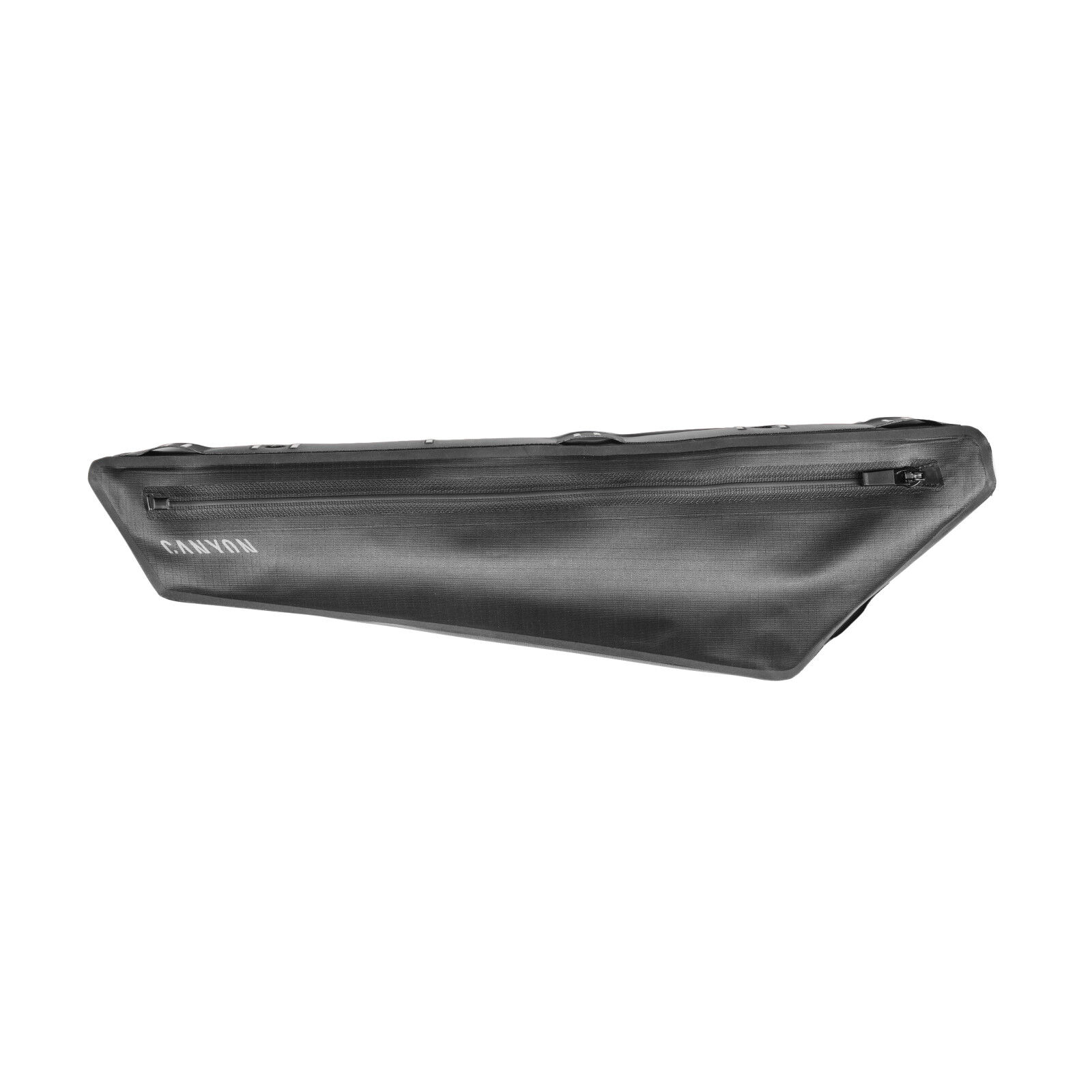

Canyon LOAD Midloader Endurace Frame Bag – 2XS
Pick-up or mobile mechanic only. Buy at canyon.com/en-au
SKU code: CAN-10015739
The lightest midloader Canyon has made, built to sit neatly in the Endurace's front triangle. It screws to the Endurace CF's mounting points, or straps on to a wide range of other road and gravel bikes.
- Light but tough: durable, waterproof construction without unnecessary bulk.
- Screw or strap mounting: three M5 screws for the Endurace CF's mounts, plus four Velcro straps for other frames.
- Seven sizes: 2XS to 2XL, from 1.0 L to 3.5 L, shaped to fit cleanly inside the frame.
- Weatherproof: a welded zip keeps water out.
- Organised: internal mesh compartments and a front cable outlet for electronics.
- Be seen: reflective details for low light.
Protect the paint
3M protection foils and a quick start guide are included, so you can cover the points where the bag meets the frame.
Fit and compatibility
Canyon lists these Endurace frames:
- Endurace: AL and AL Disc (R138-01, 2026 and 2027); CF and CF Disc (R129-01, 2027); CF SLX Disc (R130-01, 2027)
Screw mounting is designed for the Endurace CF; on other frames, use the supplied straps. Pick the size that suits your frame triangle, and ask us if you're between sizes.
We can help you choose the size and fit it for you.
Canyon warranty. Canyon covers its parts and accessories against defects for 2 years from the day you receive them. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
- Canyon's lightest midloader
- Screw mount (Endurace CF) or Velcro straps
- Seven sizes, 1.0-3.5 L
- Waterproof with welded zip
- Internal mesh compartments, front cable outlet
- Reflective details
| Brand | Canyon |
|---|---|
| Size 2XS | 380 x 80 x 47 mm, 1.0 L, 160 g |
| Size XS | 400 x 100 x 47 mm, 1.2 L, 175 g |
| Size S | 450 x 120 x 47 mm, 1.6 L, 185 g |
| Size M | 460 x 120 x 47 mm, 1.8 L, 195 g |
| Size L | 480 x 130 x 47 mm, 2.4 L, 215 g |
| Size XL | 500 x 160 x 47 mm, 2.8 L, 225 g |
| Size 2XL | 540 x 190 x 48 mm, 3.5 L, 265 g |
| Weight | 160 g (2XS) to 265 g (2XL) |
| Mounting | 3 x M5 screws (Endurace CF) or 4 x Velcro straps |
| In the box | 1 x Canyon LOAD Midloader, 3 x M5 x 12 mm screws, 3 x M5 PE washers, 4 x Velcro straps, 3M protection foils, quick start guide |
| Frame codes | R129-01, R130-01, R138-01 |
| SKU | CAN-P-9102454 |
| Brand | Canyon |
| Shipping Weight | 0.2400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.060m |
| Shipping Length | 0.180m |
