Canyon GP7172-01 Headset
Pick-up or mobile mechanic only. Buy at canyon.com/en-au
SKU code: CAN-10007996
Genuine Canyon GP7172-01 Headset. Headset parts let the fork steer smoothly in the frame and hold the cockpit in line. Canyon's integrated cockpits use headset parts made for each frame, so match the part code and frame.

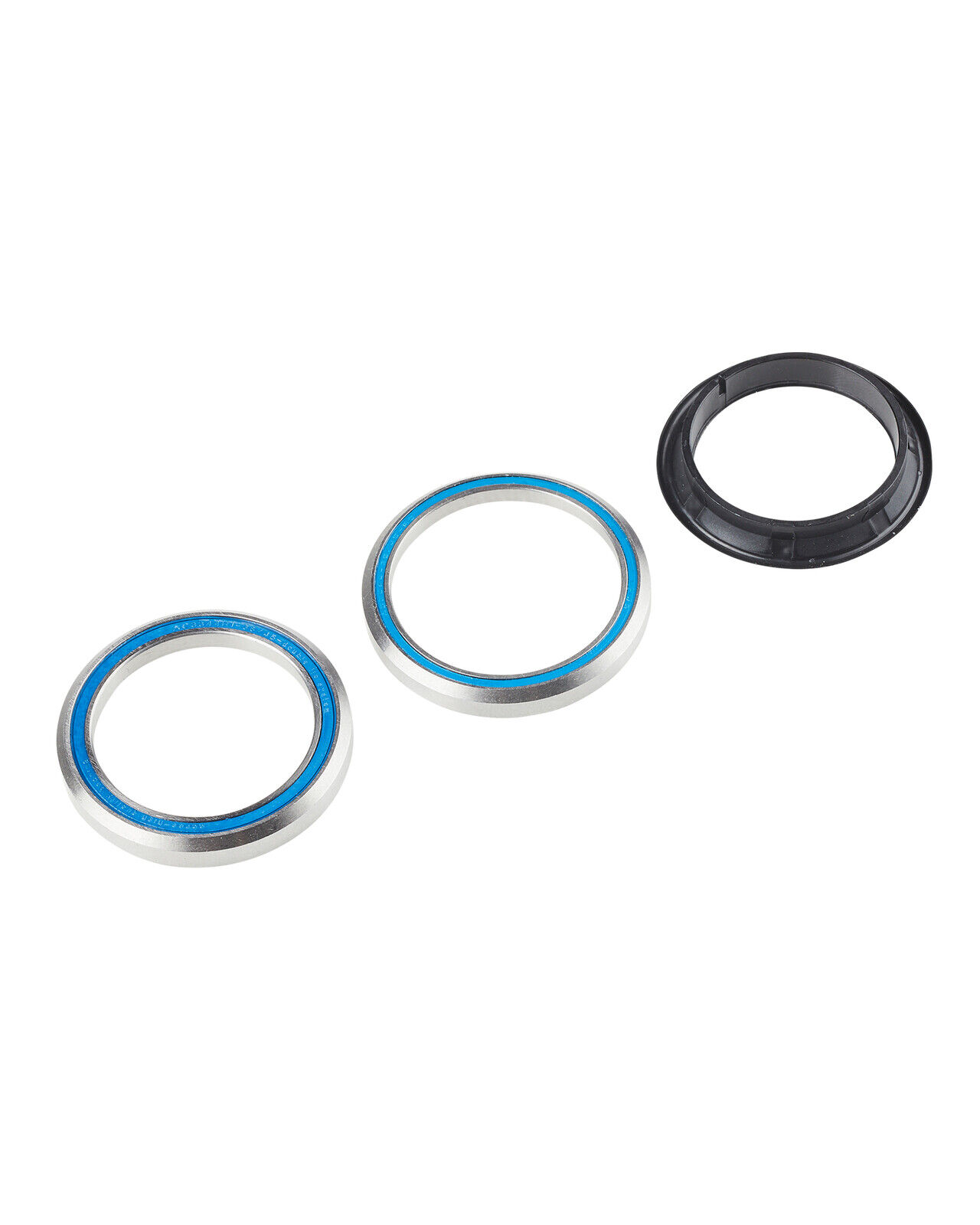

What's in the box
- 1x ACROS upper bearing 1 1/4 (44x35x5,5mm)
- 1x ACROS lower bearing 1 1/4 (44x33x6mm)
- 1x ACROS Compression ring 1 1/4
Fits
Canyon lists this part for these bikes:
| Model | Frame code | Model years | Builds |
|---|---|---|---|
| Aeroad CF SLX | R107-01 | 2026–2027 | Aeroad CF SLX 7 AXS, Aeroad CF SLX 7 Di2, Aeroad CF SLX 8 AXS, Aeroad CF SLX 8 Di2, Aeroad CF SLX 7 AXS SPEED, Aeroad CF SLX 8 AXS SPEED |
| Endurace CF | R076-01 | 2026 | Endurace CF 6 |
| Endurace CF | R129-01 | 2027 | Endurace CF 8 Di2, Endurace CF 7 |
| Endurace CF SLX | R130-01 | 2027 | Endurace CF SLX 7 AXS, Endurace CF SLX 8 Di2, Endurace CF SLX 9 Di2 |
| Grail CF SL | R119-01 | 2026 | Grail CF 7 |
| Ultimate CF SL | R101-01 | 2026 | Ultimate CF 7 Di2, Ultimate CF Young Hero |
| Ultimate CF SLX | R100-01 | 2026–2027 | Ultimate CF SLX 8 Di2 |
| Ultimate CFR | R102-01 | 2026 | Ultimate CFR AXS, Ultimate CFR Di2 |
Before you order
Canyon spares are matched to the frame code and model year, and some come in frame sizes or colours. Check your bike against the table. Not sure? Send us the model, year and frame size, or the frame's serial number, and we'll confirm the part before it's ordered.
Fitting
Tune Cycles is an authorised Canyon service and assembly partner, so we can fit this part for you at the workshop or with our mobile service.
Canyon warranty. Canyon covers its parts and accessories against defects for 2 years from the day you receive them. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
- Genuine Canyon part GP7172-01
- In the box: 1x ACROS upper bearing 1 1/4 (44x35x5,5mm); 1x ACROS lower bearing 1 1/4 (44x33x6mm); 1x ACROS Compression ring 1 1/4
- Weight: 37 g
| Brand | Canyon |
|---|---|
| Canyon part code | GP7172-01 |
| In the box | 1x ACROS upper bearing 1 1/4 (44x35x5,5mm); 1x ACROS lower bearing 1 1/4 (44x33x6mm); 1x ACROS Compression ring 1 1/4 |
| Weight | 37 g |
| Frame codes | R076-01, R100-01, R101-01, R102-01, R107-01, R119-01, R129-01, R130-01 |
| SKU | CAN-10007996 |
| Brand | Canyon |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.120m |
