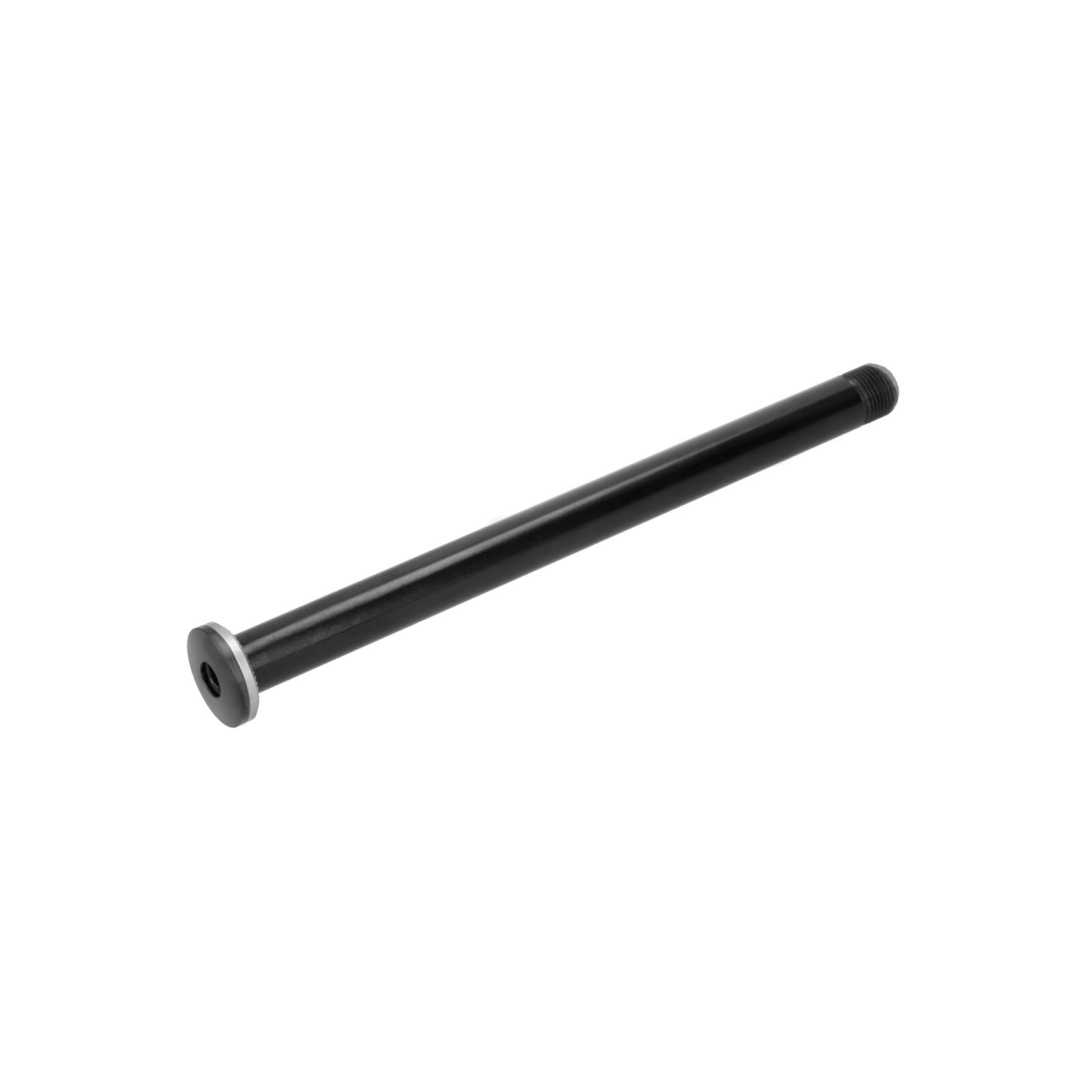

A replacement DT Swiss rear thru axle for Canyon road, aero and triathlon bikes, or a spare for travel.

  • Size: 12 mm diameter, 142 mm hub spacing.
  • Thread: 1.75 mm pitch.
  • Light: 40 g.

Fit and compatibility

Thru axles are frame-specific. Canyon lists this one for:

  • Aeroad: Aeroad CF SLX Disc (R107-01, 2027), Aeroad CF SLX (R107-01, 2026), Aeroad CFR (R108-01, 2026)
  • Endurace: Endurace CF SLX Disc (R077-02, 2026), Endurace CFR (R072-02, 2026)
  • Speedmax: Speedmax CF Disc (R073-01, 2026), Speedmax CF SLX Disc (R091-01, 2026), Speedmax CF SLX (R091-01, 2025), Speedmax CF (R073-01, 2026), Speedmax CFR (R085-01, 2026; R090-01, 2026)
  • Ultimate: Ultimate CF SL Disc (R101-01, 2026 and 2027), Ultimate CF SL (R101-01, 2026), Ultimate CF SLX Disc (R100-01, 2027), Ultimate CF SLX (R100-01, 2026), Ultimate CFR Disc (R102-01, 2026)

Match your frame code and model year before ordering.

Unsure? Send us your frame code and we'll check.

DT Swiss warranty. Covered against manufacturing defects under DT Swiss's warranty terms; ask us for the period that applies. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.

  • DT Swiss thru axle
  • 12 x 142 mm
  • 1.75 mm thread pitch
  • 40 g
BrandDT Swiss
Axle diameter12 mm
Hub width142 mm
Thread pitch1.75 mm
Weight40 g
Frame codesR072-02, R073-01, R077-02, R085-01, R090-01, R091-01, R100-01, R101-01, R102-01, R107-01, R108-01
SKU CAN-10015402
Brand DT Swiss
Shipping Weight 0.1200kg
Shipping Width 0.060m
Shipping Height 0.050m
Shipping Length 0.250m
