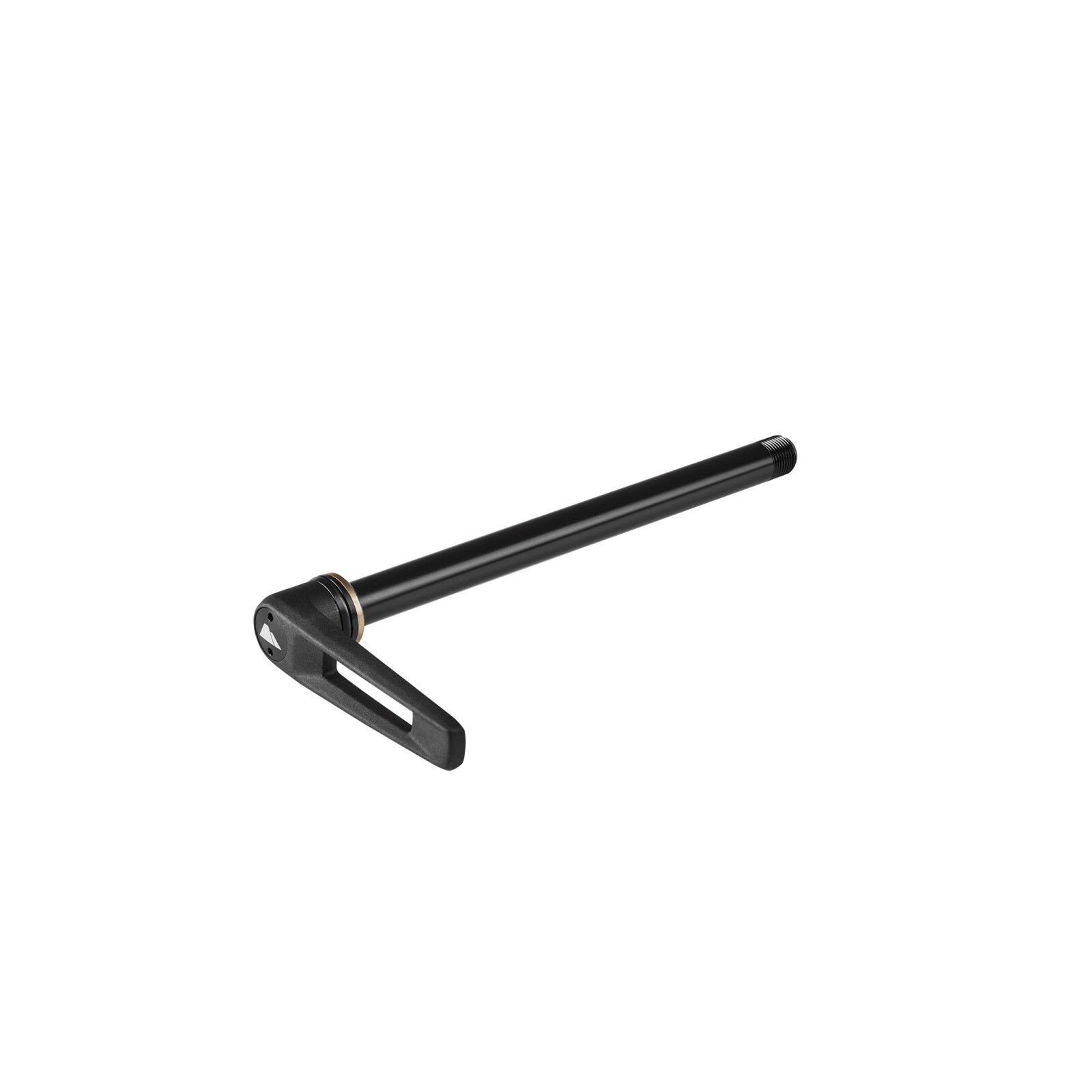

A genuine Canyon DT Swiss thru axle in aluminium, sold individually as a front or rear axle. Choose 12 x 100 mm for the front wheel or 12 x 142 mm for the rear.

  • Lever where you like it: once tightened, the lever can be turned to your preferred position or removed completely.
  • Light aluminium: 55 g front, 63 g rear.
  • Matching thread: 12 mm diameter with a 1.0 mm thread pitch.

Fit and compatibility

Thru axles are frame-specific. Canyon lists this axle for:

  • Endurace: Endurace AL Disc (R138-01, 2027), Endurace AL (R138-01, 2026)
  • Grail: Grail CF SL (R119-01, 2026), Grail CF SLX (R120-01, 2026), Grail CFR (R121-01, 2026)
  • Speedmax Track: Speedmax CFR Track (R115-01, 2024)

Front and rear axles are sold separately, so pick the size you need and match your frame code and model year before ordering.

Unsure? Send us your frame code and we'll confirm.

DT Swiss warranty. Covered against manufacturing defects under DT Swiss's warranty terms; ask us for the period that applies. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.

  • 12 mm diameter, 1.0 mm thread pitch
  • 100 mm front or 142 mm rear
  • Aluminium
  • Lever repositions or removes
BrandDT Swiss
Diameter12 mm
Installation width100 mm (front) or 142 mm (rear)
Thread pitch1.0 mm
MaterialAluminium
Weight55 g (front), 63 g (rear)
In the box1 x Canyon DT Swiss Road Thru-Axle
Frame codesR115-01, R119-01, R120-01, R121-01, R138-01
SKU CAN-P-9100565
Brand DT Swiss
Shipping Weight 0.1200kg
Shipping Width 0.060m
Shipping Height 0.050m
Shipping Length 0.250m
