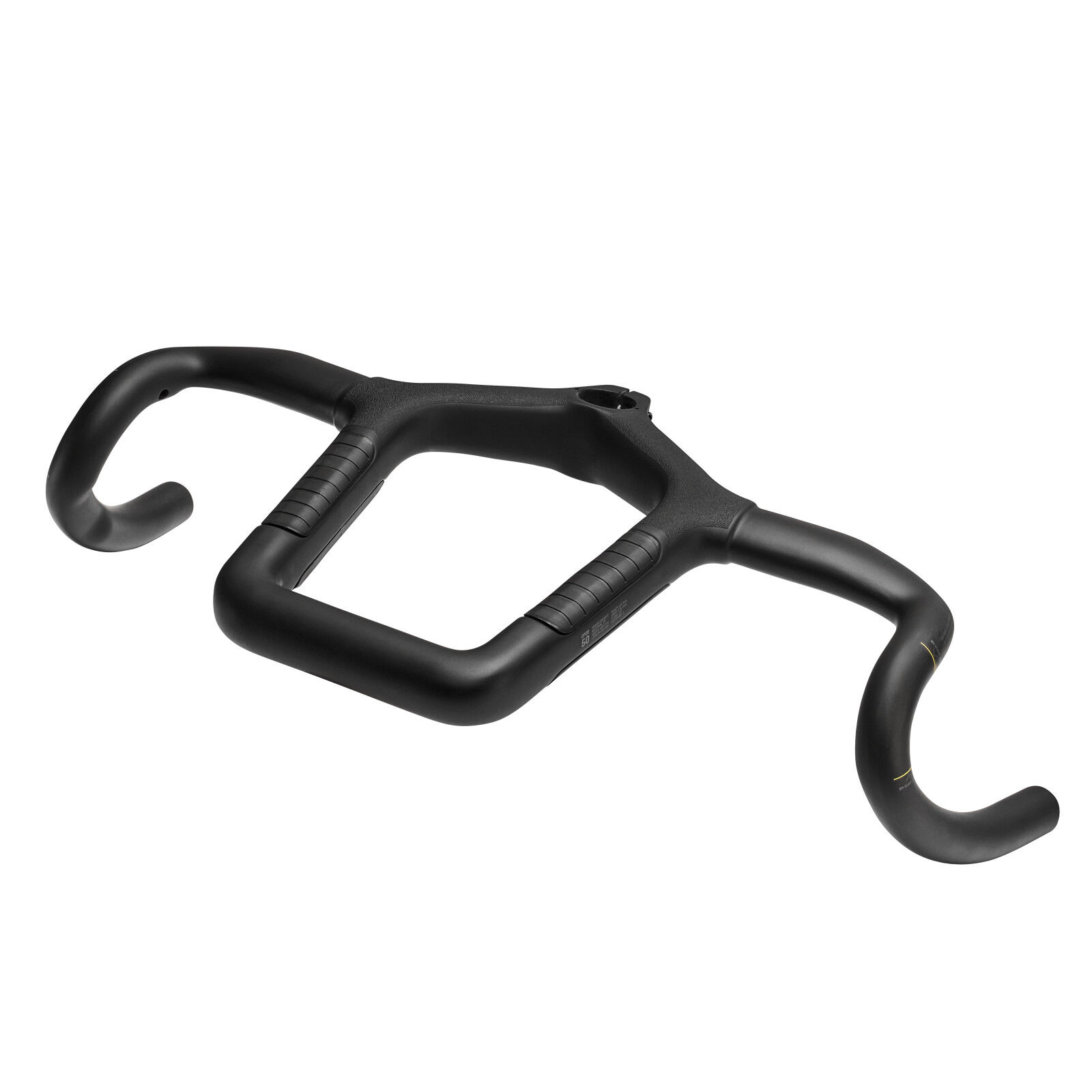

Canyon CP0050 1 1/8" CF Gravel Cockpit (Full Mounty Integrated Bar & Stem) – 50-420
Pick-up or mobile mechanic only. Buy at canyon.com/en-au
SKU code: CAN-10015154
Long mixed-terrain days are easier on your hands when you can change position often. The CP0050 Full Mounty keeps the familiar drop bar shape and adds a modular platform for mounting devices, lights, bags and bottles your way.
- Control when it gets rough: flared drops with 5° of backsweep for confident handling on technical ground.
- Mount almost anything: a standard 31.8 mm round clamping area for accessories.
- Carry more: two 64 mm bottle cage interfaces and a 128 mm cargo cage interface.
- Bag and extension ready: interfaces for the LOAD Full Mounty Cockpit Bag and Long Distance Extensions.
- Standard steerer: clamps a 1 1/8" steerer.
Geometry and sizes
Reach is 69 mm, drop is 115 mm and the cockpit angle is -6°. Choose 420 mm wide with a 50 or 60 mm stem, or 440 mm wide with a 60 or 70 mm stem.
Fit and compatibility
Integrated cockpits are frame-specific. Canyon lists the CP0050 for:
- Grail: Grail CF SL (R119-01, 2026), Grail CF SLX (R120-01, 2026; R139-01, 2027), Grail CFR (R121-01, 2026)
- Grizl: Grizl AL (R124-01, 2027), Grizl CF (R126-01, 2026 and 2027)
Match your frame code and model year before ordering.
Tune Cycles can fit your Full Mounty and set up your bags and mounts as an authorised Canyon service partner.
Canyon warranty. Canyon covers its parts and accessories against defects for 2 years from the day you receive them. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
- Carbon one-piece gravel cockpit
- 69 mm reach, 115 mm drop, 5° backsweep
- 31.8 mm round clamp area for accessories
- 2 x 64 mm bottle cage and 1 x 128 mm cargo cage interfaces
- 4 x hex socket screws included
| Brand | Canyon |
|---|---|
| Canyon part code | CP0050 |
| Material | Carbon |
| Steerer clamp | 1 1/8" |
| Width | 420 or 440 mm |
| Stem length | 50–70 mm |
| Reach | 69 mm |
| Drop | 115 mm |
| Backsweep | 5° |
| Cockpit angle | -6° |
| Accessory clamp area | 31.8 mm round |
| Cage interfaces | 2 x 64 mm bottle, 1 x 128 mm cargo |
| Weight | 416 g (size not specified) |
| In the box | 1 x CP0050 cockpit, 4 x hex socket cylinder head screws |
| Frame codes | R119-01, R120-01, R121-01, R124-01, R126-01, R139-01 |
| SKU | CAN-P-9102423 |
