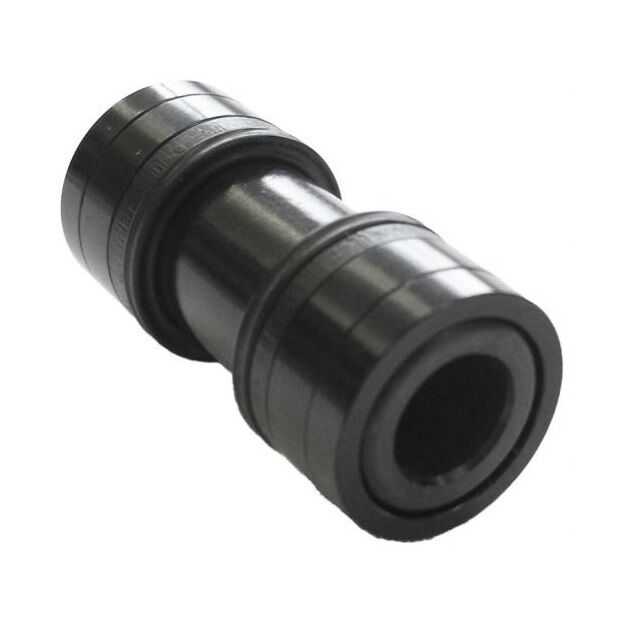

Rear shock pivot hardware wears with use, and fitting the right axle and bushing kit keeps a shock mounted tight and free of play. This Cane Creek hardware kit suits shocks using an 8mm mounting bolt, sized to the exact gap between the shock's eyelet or trunnion and the frame's mounting tabs.

Compatibility & fit

For a shock mounted with an 8mm bolt; the frame mount width must match exactly. Measure the existing hardware or check your shock and frame manual before ordering – the wrong width leaves the shock loose or binding under load. One size (12.7mm) is for horizontal clevis mounting only; the rest suit standard eyelet mounts. The Tune workshop can measure and fit this hardware as part of a shock service.

Options

Frame Mount WidthWhat it fits
12.7mm, 14.9mm, 15mm, 15.8mm, 15.9mm, 16mm, 18mm, 19mm, 20mm, 21mm, 21.8mm, 21.84mm, 21.9mm, 22mm, 22.1mm, 22.2mm, 22.4mm, 23mm, 24mm, 24.89mm, 25mm, 25.4mm, 26mm, 27.9mm, 29mm, 30mm, 31.4mm, 31.8mm, 32mm, 32.4mm, 33mm, 33.65mm, 34mm, 35mm, 35.6mm, 36mm, 38mm, 39.8mm, 40mm, 41mm, 42mm, 42.2mm, 43mm, 43.8mm, 44.85mm, 45mm, 48mm, 49mm, 50mm, 52mm, 54mm, 56mm, 60mm, 64mmMatches an 8mm-bolt shock mount this wide, eyelet to eyelet (or trunnion tab to tab); the 12.7mm size is for horizontal clevis mounting only
Covered against manufacturing defects as a genuine Cane Creek spare part; normal wear from use isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Genuine Cane Creek rear shock mounting hardware, 8mm bolt
  • Available in frame mount widths from 12.7mm to 64mm
  • Restores a tight, slop-free shock pivot
Bolt diameter8mm
Frame mount width options12.7mm to 64mm (see Options)
Weightapprox. 30g per kit
SKU DTW-CSG-SHHW08-PAR
Brand Cane Creek
