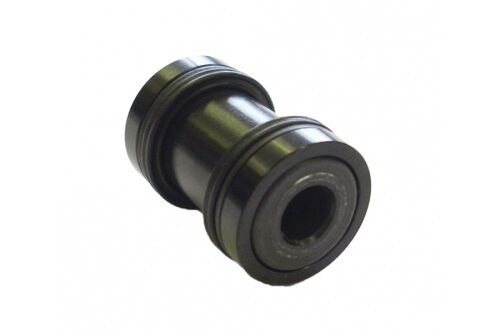

Rear shock pivot hardware wears with use, and fitting the right axle and bushing kit keeps a shock mounted tight and free of play. This Cane Creek hardware kit suits shocks using a 6mm mounting bolt, sized to the exact gap between the shock's eyelet or trunnion and the frame's mounting tabs.

Compatibility & fit

For a shock mounted with a 6mm bolt; the frame mount width must match exactly. Measure the existing hardware or check your shock and frame manual before ordering – the wrong width leaves the shock loose or binding under load. The Tune workshop can measure and fit this hardware as part of a shock service.

Options

Frame Mount WidthWhat it fits
15.8mm, 19mm, 20mm, 21.8mm, 22.1mm, 24mm, 25mm, 25.4mm, 27.9mm, 28.6mm, 30mm, 30.5mm, 34mm, 38mm, 39.8mm, 40mm, 41mm, 45.5mm, 50mm, 54mmMatches a 6mm-bolt shock mount this wide, eyelet to eyelet (or trunnion tab to tab)
Covered against manufacturing defects as a genuine Cane Creek spare part; normal wear from use isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Genuine Cane Creek rear shock mounting hardware, 6mm bolt
  • Available in frame mount widths from 15.8mm to 54mm
  • Restores a tight, slop-free shock pivot
Bolt diameter6mm
Frame mount width options15.8mm to 54mm (see Options)
Weightapprox. 30g per kit
SKU DTW-CSG-SHHW06-PAR
Brand Cane Creek
