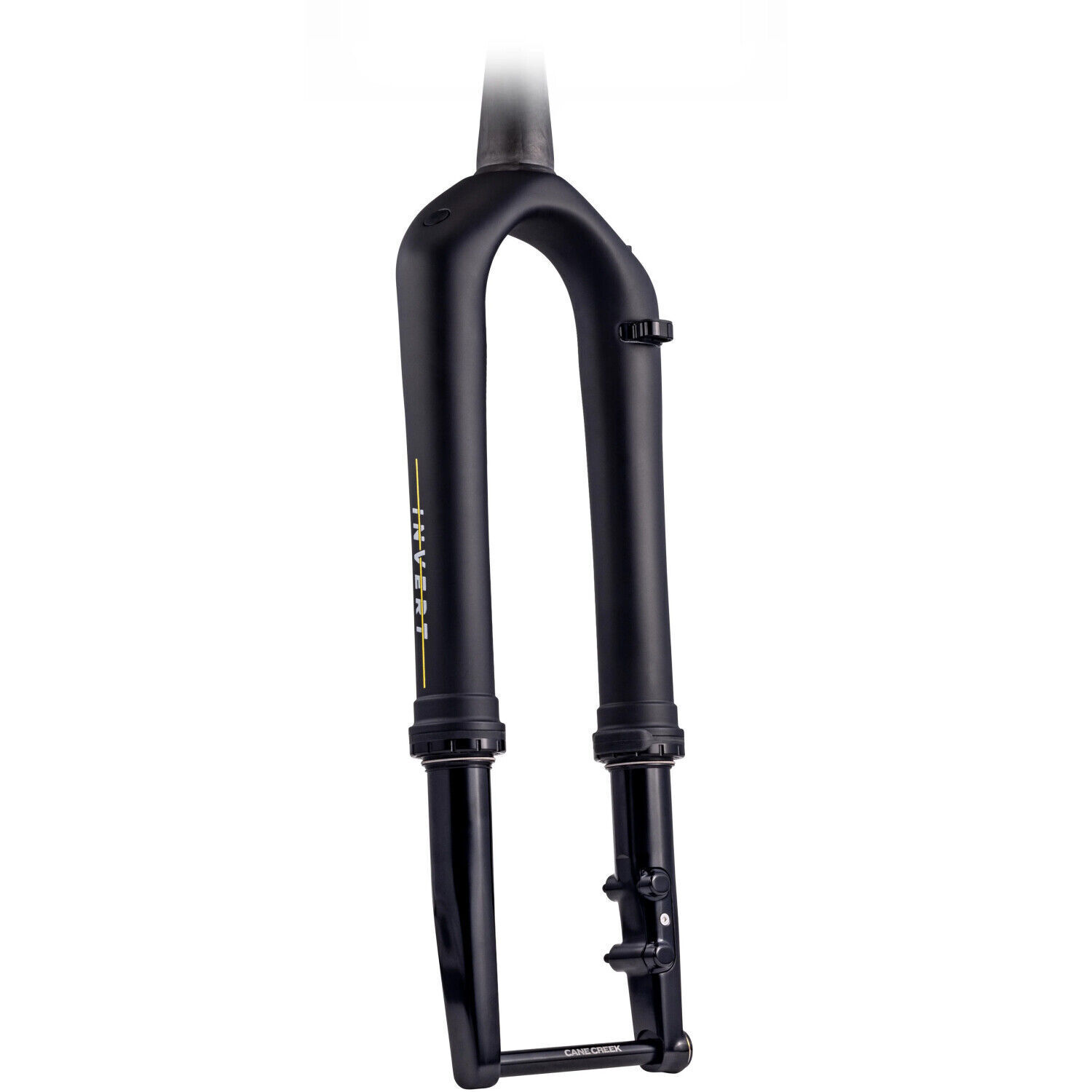

Invert is Cane Creek's gravel suspension fork, and SL is the lighter of its two versions – no Climb Switch lever, just the fork smoothing out rough roads at 990g.

Highlights

  • Inverted-leg design: 30mm machined stanchions in one-piece forged lowers, with hidden brake bolts and a hidden thru-axle
  • Carbon fibre crown and steerer bonded to aluminium upper tubes
  • 30mm or 40mm travel
  • 700 x 50mm max tyre clearance
  • 990g claimed weight, either travel

Fit and mounting

Flat mount brake, drilled for a 160mm rotor (180mm with Cane Creek's BBG0800 adapter). 12x100mm thru-axle, included. Tapered 1-1/8in to 1.5in steerer (28.6mm to 40mm).

Compatibility & fit

Built for gravel and adventure bikes with a flat-mount front brake and a tapered steerer; check head tube and steerer compatibility before ordering. Cane Creek also sells Invert CS, which adds a Climb Switch lever for a firmer pedalling platform, in the same two travel lengths.

Options

TravelWhat differs
30mm425mm axle-to-crown
40mm435mm axle-to-crown
Cane Creek's Invert fork carries a two-year warranty against defects in materials and workmanship. Normal wear and tear, crash damage and lack of routine service aren't included. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
Inverted-leg design, 30mm stanchions, hidden thru-axle, Carbon fibre crown and steerer, aluminium uppers, 30mm or 40mm travel, 700x50mm max tyre clearance, 990g claimed weight, 2-year warranty
BrandCane Creek
ModelInvert SL
Travelsee Options table
Brake mountFlat mount, 160mm (180mm with adapter)
Max tyre size700x50mm
Thru-axle12x100mm, included
Steerer1-1/8in to 1.5in tapered (28.6-40mm)
Weight990g claimed
Warranty2 years
