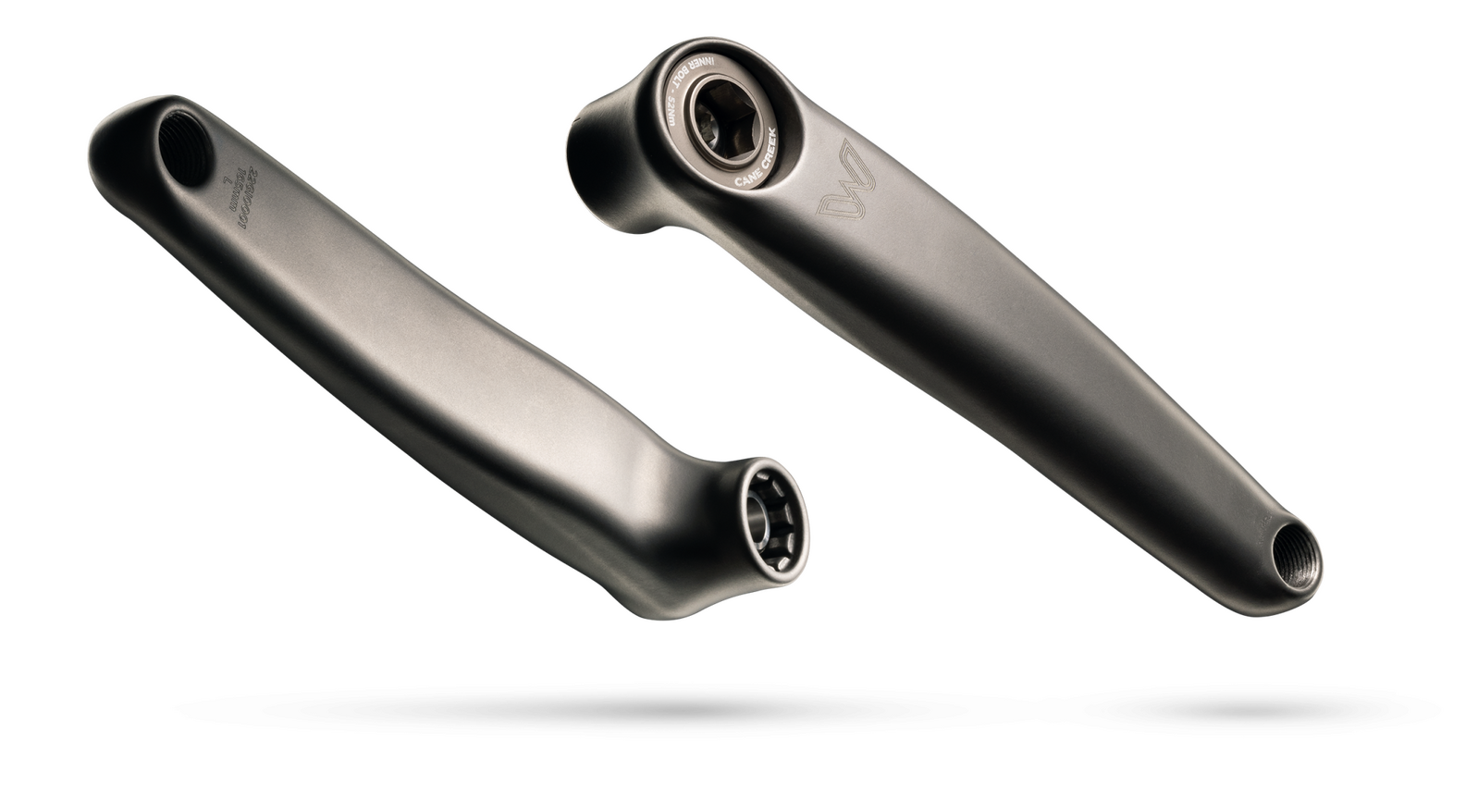

Electric Wings is Cane Creek's titanium crankset purpose-built for eMTB motors, 3D-printed in 6/4 titanium rather than welded like the eeWings road and mountain cranks.

Highlights

  • 6/4 titanium, built by additive manufacturing (3D printing)
  • 383g, on par with top carbon eMTB cranksets but far more impact-resistant
  • Reduced pedal overhang to cut down on pedal strikes
  • ISIS motor spindle interface
  • Boxed as a complete crankset

Compatibility & fit

Fits eBike drive units using an ISIS motor spindle: Bosch, Brose, DJI, Bafang, TQ and Yamaha motors. Not compatible with Specialized SL models (which use a Shimano motor) or the Fazua Ride 60 motor. Only available in 165mm crank length. Always confirm your drive unit's spindle interface before ordering – the Tune workshop can check fit.

Cane Creek's Electric Wings crankset carries a five-year warranty against defects in materials and workmanship. Normal wear and tear, crash damage and incorrect installation aren't included. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 6/4 titanium, 3D-printed (additive manufacturing)
  • 383g
  • Reduced pedal overhang
  • ISIS motor spindle interface
  • Fits Bosch, Brose, DJI, Bafang, TQ and Yamaha eMTB drive units
  • Not compatible with Specialized SL (Shimano motor) or Fazua Ride 60
  • 165mm crank length only
BrandCane Creek
Material6/4 titanium (3D-printed)
Weight383g
Crank length165mm
Spindle interfaceISIS (motor spindle)
FitsBosch, Brose, DJI, Bafang, TQ, Yamaha
Not compatible withSpecialized SL (Shimano motor), Fazua Ride 60
