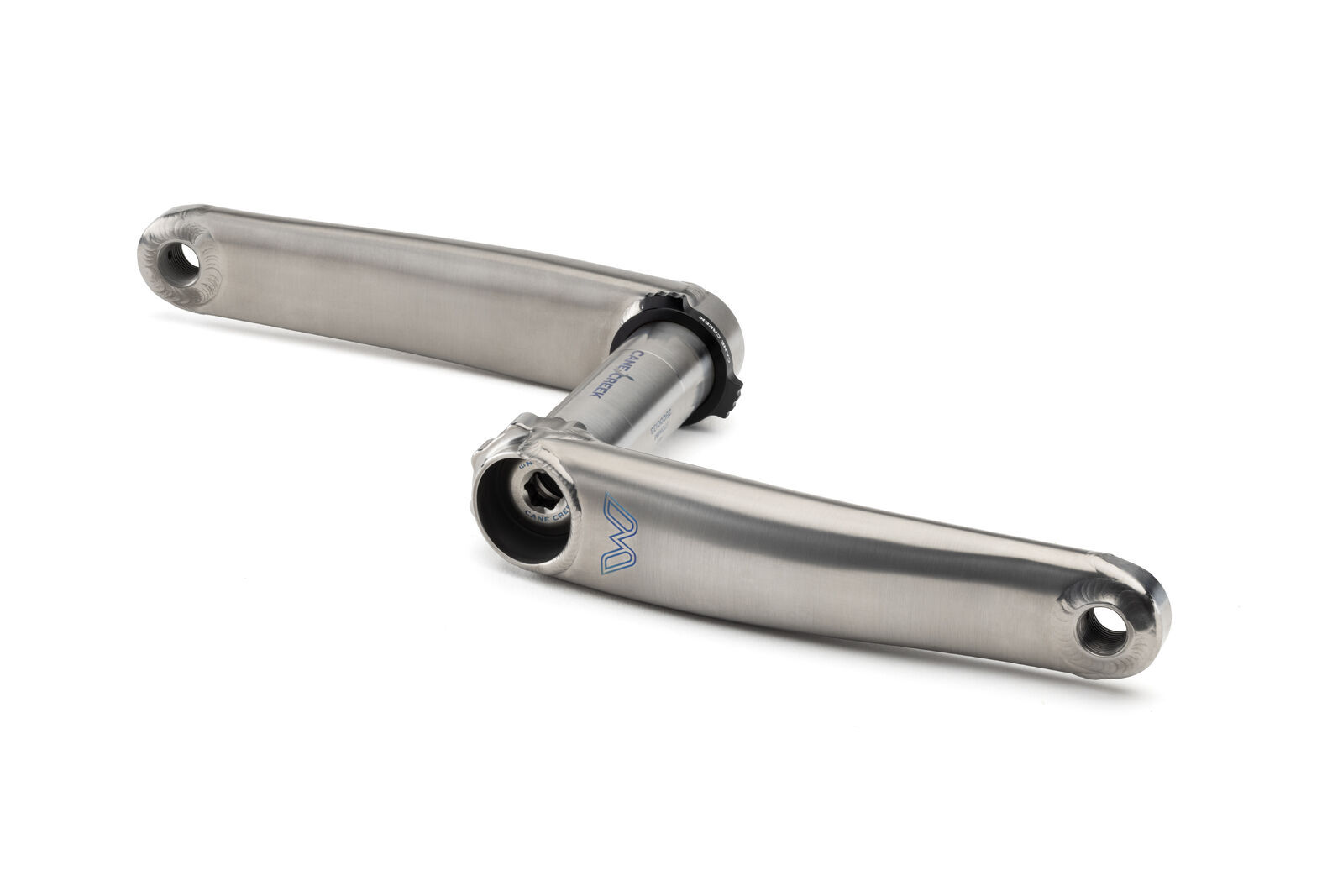

Cane Creek's eeWings All-Road crankset pairs carbon-light titanium arms with an 8-bolt direct-mount interface, built to outlast carbon on gravel and all-road bikes without the weight penalty.
Highlights
- Butted 3/2.5 titanium tubular arms with a CNC 6/4 titanium spindle and Hirth joint
- 8-bolt direct-mount interface – compatible with SRAM Transmission chainrings and SRAM's direct-mount power meters
- 30mm spindle; CNC aluminium preloader sets bottom bracket bearing preload precisely
- Stainless steel 8mm crank fixing bolt
- Lifetime limited warranty against defects in materials and workmanship
Titanium construction
Each arm is butted 3/2.5 titanium, joined to a CNC-machined 6/4 titanium spindle with a Hirth joint for direct power transfer. The brushed titanium finish can be polished out with a basic Scotchbrite pad if it picks up scratches.
Chainring and power meter compatibility
The 8-bolt direct-mount interface takes SRAM Transmission chainrings and SRAM's direct-mount power meters. Cane Creek's own chainring spider adapts eeWings to Shimano GRX, Dura-Ace R9200 and Ultegra R8100 chainrings. Supplied with the crank fixing bolt and chainring bolts; chainring, spider and bottom bracket are sold separately.
Compatibility & fit
30mm spindle, built for All-Road geometry (160mm Q-factor). Fits bottom bracket shells rated for a 30mm spindle – BSA, T47, BB30, PF30 and PF41 – confirm with Tune's workshop which bottom bracket your frame needs.
Options
| Length | What differs |
|---|---|
| 165mm | Shortest All-Road length; weighs 398g |
| 170mm | Mid-length All-Road arm |
| 172.5mm | Longest All-Road arm |
- Butted 3/2.5 titanium arms, CNC 6/4 titanium spindle, Hirth joint
- 8-bolt direct mount – SRAM Transmission chainring and power meter compatible
- 30mm spindle; CNC aluminium preloader
- Stainless steel 8mm crank fixing bolt
- Lifetime limited warranty
| Brand | Cane Creek |
|---|---|
| Range | eeWings All-Road |
| Material | Titanium (3/2.5 arms, 6/4 spindle) |
| Spindle | 30mm |
| Chainring interface | 8-bolt direct mount |
| Q-factor | 160mm |
| Weight | 398g (165mm arm, Cane Creek's own figure) |
| Bottom bracket fit | BSA, T47, BB30, PF30, PF41 (30mm-spindle shells) |
| Warranty | Lifetime limited |
| Length (this option) | 165mm, 170mm or 172.5mm |
| SKU | DTW-CKG-BAI031-PAR |
| Brand | eeCycleworks |
| Shipping Weight | 0.5780kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.100m |
| Shipping Length | 0.400m |
