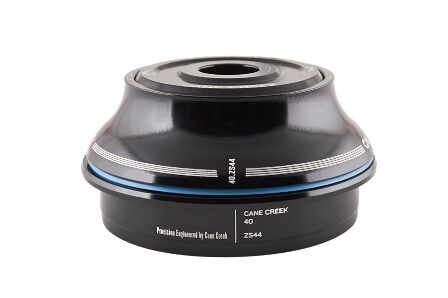

This is the top half only of a Cane Creek 40-Series headset: the ZeroStack cup, bearing and tall top cap, sold separately for building up or servicing a headset rather than as a complete set.

Compatibility & fit

S.H.I.S. (the Standardized Headset Identification System) is the code the whole headset industry uses for cup and crown race sizes, written upper | lower — this top assembly is ZS44/28.6, meaning a ZeroStack (ZS) upper that presses fully into a 44.00mm head tube bore with no external shoulder, with a 28.6mm (1-1/8in) stem clamp, in the tall (15mm stack) cover height. ZeroStack sits lower-profile than an External Cup (EC) top on the same size frame. If you're not sure which headset standard your frame uses, the Tune workshop can check and fit it.

Cane Creek's 40-Series (Forty) headsets carry a 1-year warranty to the original owner against defects in materials and workmanship. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • S.H.I.S. ZS44/28.6 top assembly, tall cover: ZeroStack cup, sealed cartridge bearing and top cap
  • Black-oxide sealed bearing for corrosion resistance
  • 15mm stack height (tall cover)
  • 6061 aluminium cup
S.H.I.S. (upper)ZS44/28.6
Top typeZeroStack (ZS), tall cover
Head tube inside diameter44.00mm
Stem clamp diameter28.6mm
Stack height15mm
Bearing typeBlack-oxide, sealed cartridge
Material6061 aluminium
SKU DTW-CKG-HST40ZST8K
Barcode # 840226094946
Brand Cane Creek
Shipping Weight 0.1000kg
