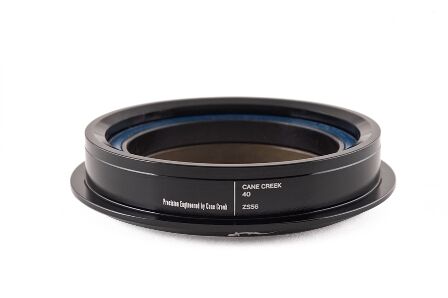

This is the bottom half only of a Cane Creek 40-Series headset: the lower cup, bearing and crown race, sold separately for building up or servicing a headset rather than as a complete set. S.H.I.S. (the Standardized Headset Identification System) is the code the whole headset industry uses for cup and crown race sizes, written upper | lower — this bottom assembly is ZS56/40, meaning a ZeroStack (press-in, no visible cup) lower with a 56mm head tube bore and a 40mm crown race for a 1.5in tapered steerer. Match it to your frame and fork by that code, not by looks.

Compatibility & fit

S.H.I.S. ZS56/40: 55.95mm head tube inside diameter, 39.79mm steel face-sealed crown race seat. Fits 1.5in lower head tubes with a tapered (1.5in-to-1-1/8in) fork steerer. Internal parts are cross-compatible with Cane Creek's 10, 40 and 110-Series headsets, but the cup and crown race must still match this S.H.I.S. code. If you're not sure which headset standard your frame uses, the Tune workshop can check and fit it.

Cane Creek's 40-Series (Forty) headsets carry a 1-year warranty to the original owner against defects in materials and workmanship. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • S.H.I.S. ZS56/40 lower assembly: cup, sealed cartridge bearing and crown race
  • Black-oxide sealed bearing for corrosion resistance
  • Steel, face-sealed crown race
  • 6061 aluminium cup, 65g
S.H.I.S. (lower)ZS56/40
Bottom typeZeroStack (ZS)
Head tube inside diameter55.95mm
Crown race seat diameter39.79mm
Crown race typeSteel, face-sealed
Stack height4mm
Bearing typeBlack-oxide, sealed cartridge
Material6061 aluminium
Weight65g
SKU DTW-CKG-HSB40ZS5
Barcode # 840226095011
Brand Cane Creek
Shipping Weight 0.1650kg
