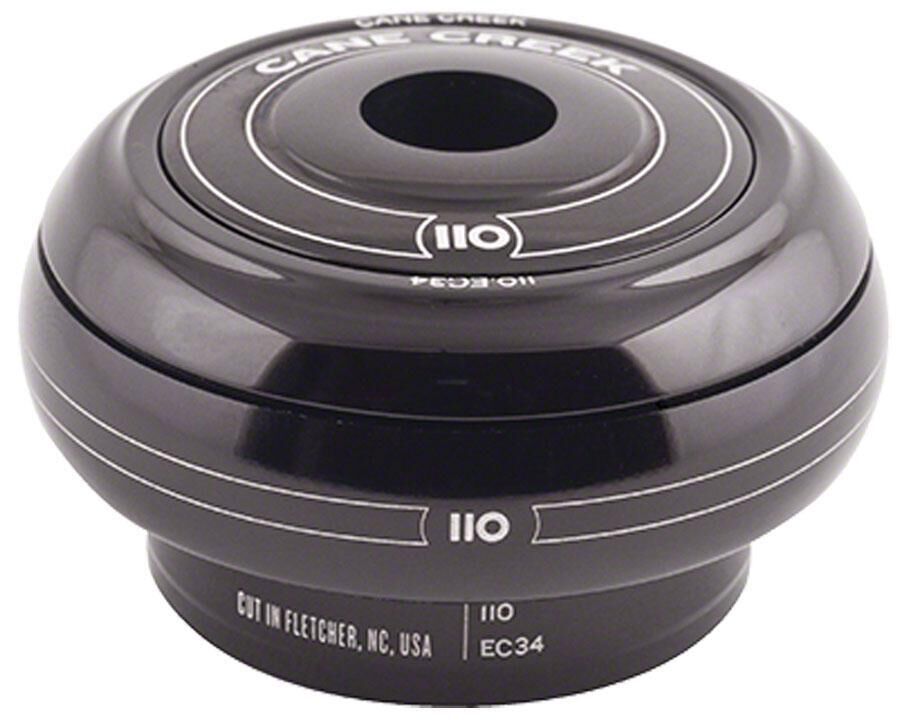

The top half of a Cane Creek 110-Series headset: an external-cup assembly for a 1-1/8in steerer, built around a Hellbender stainless steel bearing.

Highlights

  • Hellbender stainless steel sealed bearing
  • 7075 aluminium cup and cover
  • S.H.I.S. EC34/28.6

What S.H.I.S. means

S.H.I.S. (Standardized Headset Identification System) is the code bike brands use to state a headset's cup type and bearing bore, then the steerer diameter it takes — here, an external cup (EC) with a 34mm bearing bore, for a 28.6mm (1-1/8in) steerer. Fitting the wrong standard won't seat properly, so match this code to your frame's head tube before ordering.

Compatibility & fit

Top assembly only, S.H.I.S. EC34/28.6, for a 1-1/8in (28.6mm) steerer and a head tube bored for a 34mm external cup. Needs a matching 110-Series bottom assembly to complete the headset.

Cane Creek backs the 110 headset range — including this top assembly's Hellbender stainless bearing — with a 100% Lifetime Guarantee for the original owner, on products purchased after 28 August 2019. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law — keep your proof of purchase.
  • S.H.I.S. EC34/28.6
  • Hellbender stainless steel bearing
  • 7075 aluminium construction
  • Top assembly only — needs a matching bottom assembly
S.H.I.S.EC34/28.6
Steerer1-1/8in (28.6mm)
BearingHellbender stainless steel
Material7075 aluminium
ColourBlack
PositionTop assembly only
SKU DTW-CKG-HST110EC34K
Barcode # 840226097862
Brand Cane Creek
Shipping Weight 0.1000kg
