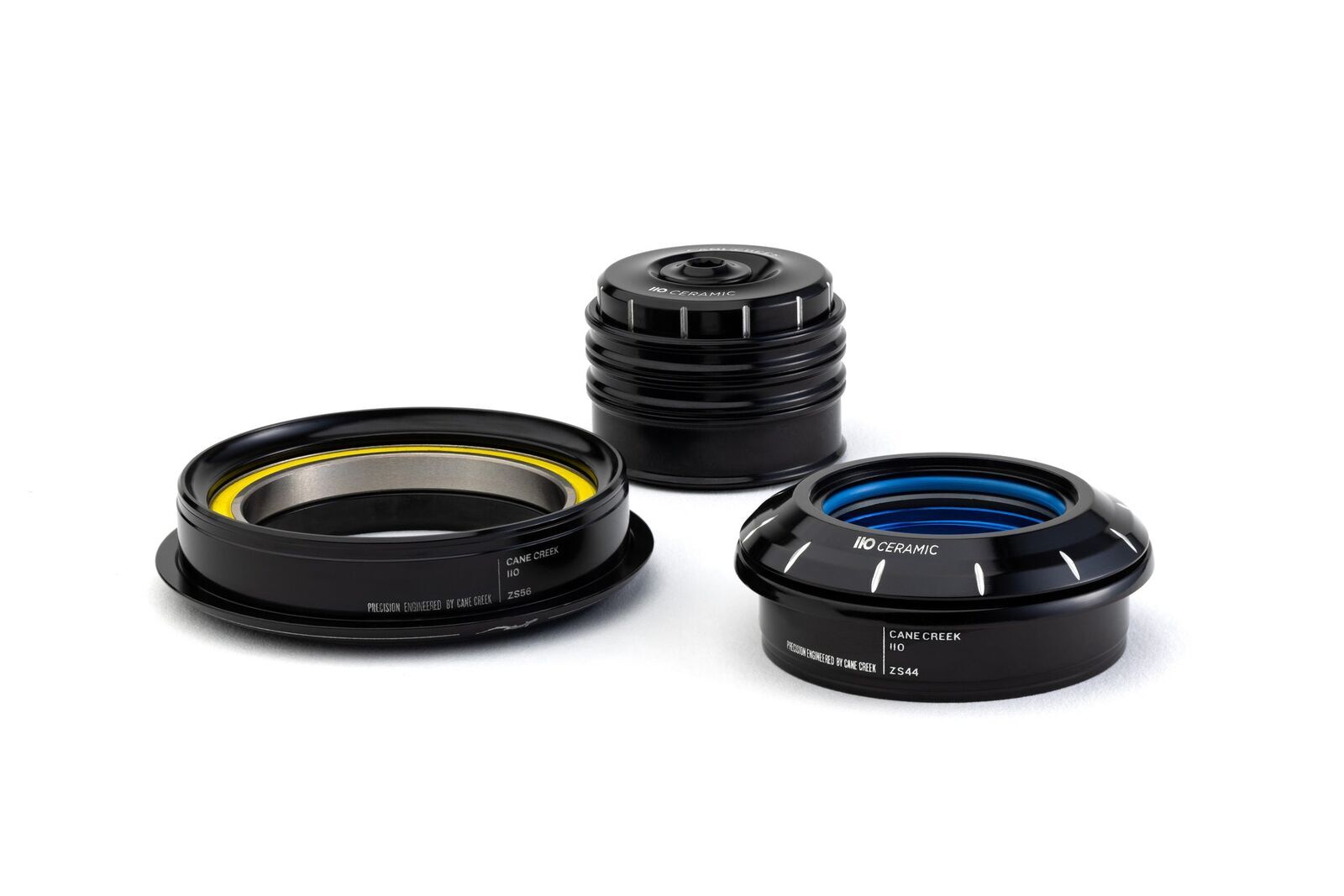

Cane Creek's most premium headset, built around its Hellbender Ceramic bearing for the smoothest steering feel in the range and backed by the 100% Lifetime Guarantee – if a rider is ever dissatisfied with how it performs, Cane Creek replaces it, no questions asked, for as long as they own it.

Highlights

  • Hellbender Ceramic bearings, upper and lower
  • ZS44/28.6 upper | ZS56/40 lower – confirm this matches your frame and fork exactly
  • 7075-T6 aluminium cups and top cover, dual-stage anodised finish
  • Dual-stage rubber lip seal co-moulded onto the crown race, plus a two-layer top cover seal
  • Interlok spacer compatible
  • Covered by Cane Creek's 100% Lifetime Guarantee

What the fit codes mean

ZS44/28.6 is the upper headset code and ZS56/40 the lower – together they set the head tube diameters and steerer size this headset is built for. ZS = Zero Stack (bearing sits inside the head tube), EC = External Cup (cup sits on top of the head tube), IS = Integrated (bearing seats directly in a machined frame or fork recess).

Compatibility & fit

This headset is built to the ZS44/28.6 upper and ZS56/40 lower S.H.I.S. (Standardised Headset Identification System) codes – the code that states a headset's exact fit: bearing seat type and diameter, then the steerer/stem clamp diameter. A headset built for the wrong code will not fit, even if it looks similar, so confirm your frame and fork's head tube and steerer sizes against Cane Creek's own fit guide before ordering. The Tune workshop can check headset fit and press-fit a new headset as part of a service.

Cane Creek backs every 110-Series and 110 Ceramic headset with its 100% Lifetime Guarantee, which covers the bearings as well as the cups – if either ever needs replacing, Cane Creek replaces it outright, no proof of purchase required. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Hellbender Ceramic bearings, upper and lower
  • ZS44/28.6 upper | ZS56/40 lower
  • 7075-T6 aluminium cups and top cover
  • Dual-stage crown race seal and two-layer top cover seal
  • Interlok spacer compatible
  • 100% Lifetime Guarantee, including the bearings
BrandCane Creek
Range110 Ceramic
BearingHellbender Ceramic
S.H.I.S. upperZS44/28.6
S.H.I.S. lowerZS56/40
FinishBlack/Silver
Cup/cover material7075-T6 aluminium
Weightapprox 0.13kg
SKU DTW-CKG-BAA2372
Barcode # 840226025636
Brand Cane Creek
