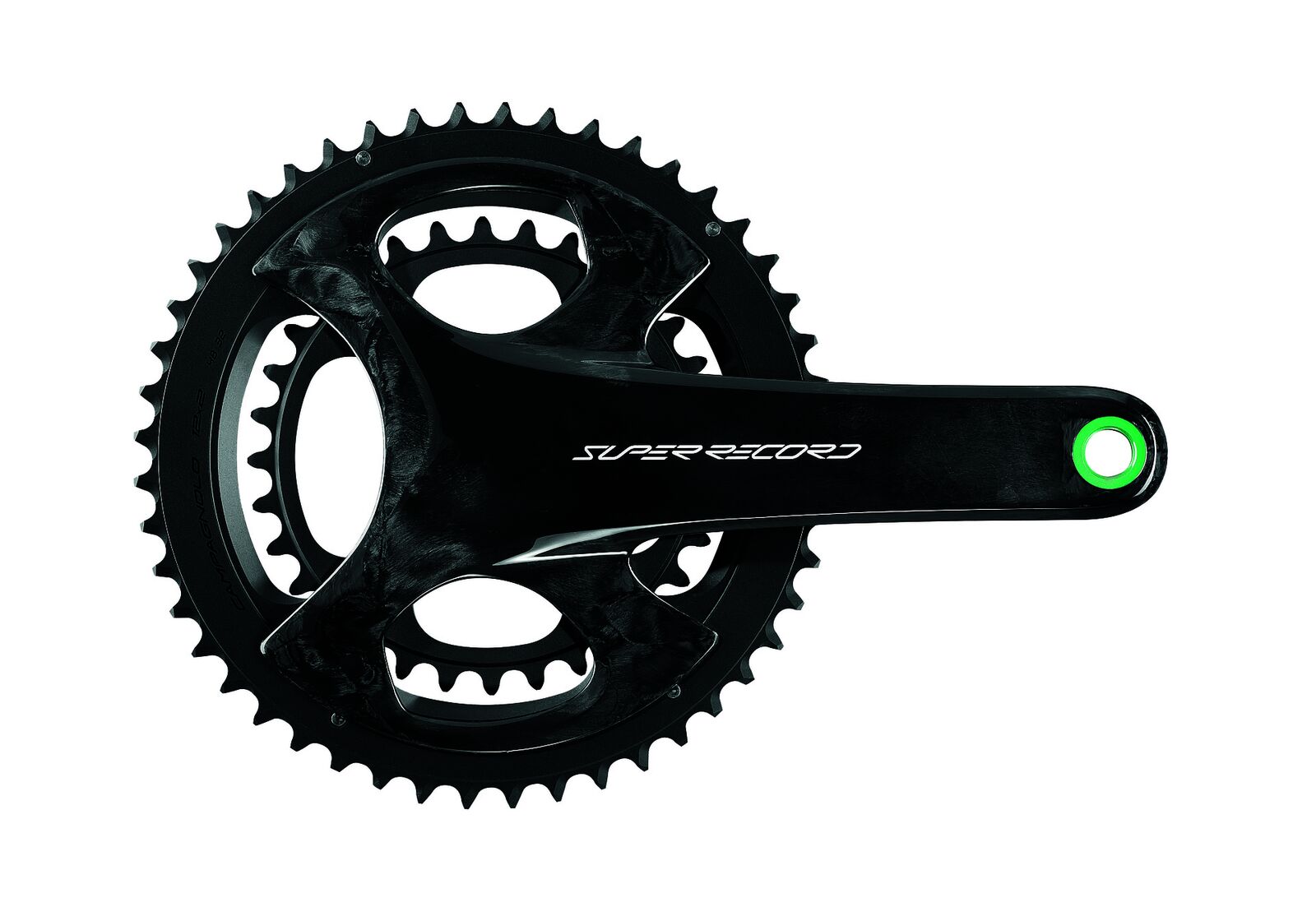

The Super Record Wireless crankset is the lightest, stiffest expression of Campagnolo's 12-speed wireless platform: hollow carbon cranks, a titanium Ultra-Torque axle and ceramic USB bearings, with new sub-compact gearing designed around the Wireless cassettes.

Highlights

  • Hollow unidirectional carbon fibre cranks
  • Titanium Ultra-Torque axle
  • Ceramic USB bearings
  • 45/29, 48/32 and 50/34 combinations
  • Symmetrical inner-ring teeth for stable cross-chain shifting
  • Crank lengths 165 to 175mm

Light and direct

A lighter hollow structure, the Ultra-Torque locking system and a titanium axle transfer all the force you apply to the pedals straight to the drivetrain, while ceramic USB bearings keep the axle turning with trademark Campagnolo smoothness.

New gearing scheme

The 45/29, 48/32 and 50/34 combinations work with the Super Record Wireless cassettes to deliver a very wide spread of gear ratios. Claimed weight is 585g (172.5mm, 45x29, bearings assembled).

Options

ChainringsCrank lengths available
45/29165mm, 170mm, 172.5mm, 175mm
48/32165mm, 170mm, 172.5mm, 175mm
50/34165mm, 170mm, 172.5mm, 175mm

Compatibility & fit

For Campagnolo Super Record Wireless 12-speed groupsets. Campagnolo's compatibility table specifies Pro-Tech bottom bracket cups (threaded OC21-PR or press-fit IC21-PR), sold separately. Fitting is available from the Tune Cycles workshop as a separate service; it isn't included in the price. Our workshop can also set up and pair the full Super Record Wireless groupset.

Campagnolo's Limited Conventional Warranty covers this product against defects in materials or workmanship for 3 years from the date of retail sale, for the first retail purchaser with proof of purchase. It does not cover normal wear and tear, crash damage, improper assembly or maintenance, or use with components Campagnolo does not specify as compatible. For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
  • Hollow unidirectional carbon cranks
  • Titanium Ultra-Torque axle
  • Ceramic USB bearings
  • Aluminium chainrings
  • Symmetrical inner chainring teeth
  • Lengths 165 to 175mm
GroupsetCampagnolo Super Record Wireless 12-speed
Speeds2x12
Crank materialUnidirectional carbon fibre, hollow
AxleTitanium, Ultra-Torque
BearingsCeramic USB
ChainringsAluminium
Crank lengths165, 170, 172.5, 175mm
Combinations45/29, 48/32, 50/34
Bottom bracketCampagnolo Pro-Tech cups (sold separately)
Claimed weight585g (172.5mm, 45x29, bearings assembled)
SKU FES-P-24496
Brand Campagnolo
