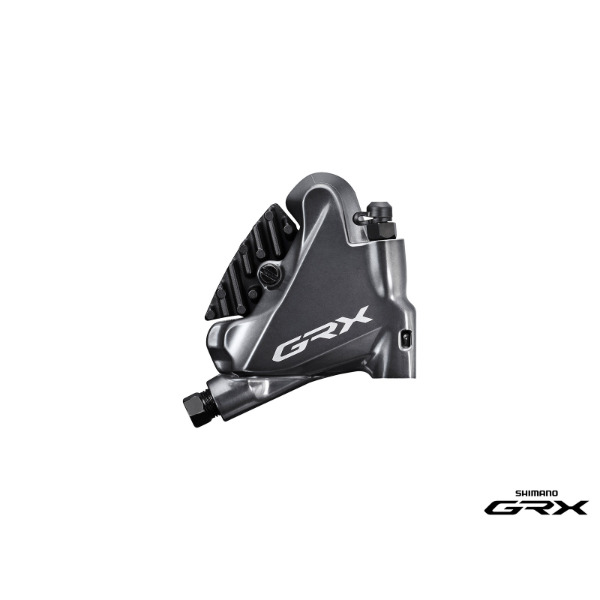

BR-RX810-R

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • Never hesitate to tackle rough surfaces
  • Excellent heat dissipation
  • ICE TECHNOLOGIES
  • Flat mount
  • Simple set up and maintenance
  • Convenient tool access
  • Easy hose joint system (J-kit)
  • Simple wheel replacement
  • Easy and clean bleeding system
  • ONE WAY BLEEDING
  • MODEL NO: BR-RX810-R
  • SERIES: GRX 10-speed
  • Series color
  • Average weight: 138
  • Remarks: Front spec with adaptor
  • ICE TECHNOLOGIES pad compatible caliper
  • Brake hose color (kit): Black
  • Brake hose (Kit): SM-BH90-JK-SSR SM-BH90-J-SSR
  • Brake type: Hydraulic disc brake
  • Caliper fixing bolt Anti loosen method: Bolt fix pin, snap ring
  • Caliper fixing bolt Tool size: 4mm
  • Fixing bolt Spec for rear mount 10 mm mount
  • Fixing bolt Spec for rear mount 15 mm mount
  • Fixing bolt Spec for rear mount 20 mm mount
  • Fixing bolt Spec for rear mount 25 mm mount
  • Fixing bolt Spec for rear mount 30 mm mount
  • Fixing bolt Spec for rear mount 35 mm mount
  • Hose joint: Straight
  • Mount type: Flat mount
  • Oil: SHIMANO Mineral
  • ONE WAY BLEEDING
  • Pad Option: K04S Metal | L04C-Metal
  • Pad Standard: K03S Resin | L03A-Resin
  • Pad mount: Pad axle
  • Piston: 2
  • Recommended brake lever: ST-RX810 BL-RX810 ST-RX815
  • Recommended disc brake rotor: SM-RT800 RT-MT800
  • J-Kit spec (for OEM)
  • Oil: SHIMANO Mineral
SKU SHM-IBRRX810RDRF
Barcode # 4550170448738
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
