If someone moves your eBike, you'll know about it. The Bosch ConnectModule adds theft protection to Bosch Smart System eBikes: it senses suspicious movement, sounds an alarm on the bike and uses satellite positioning to show where your eBike is in the eBike Flow app.

Highlights

  • GPS (GNSS) location tracking of your eBike, shown in the eBike Flow app
  • Movement sensing with an audible alarm on the bike
  • Built-in 650 mAh backup battery keeps tracking and alarm running when the eBike battery is removed or flat
  • Mobile network connection (LTE Cat-M1) sends location and alerts to your phone
  • IP54 protection against dust and splashing water

How it works

The ConnectModule is hidden on the eBike and wired into the Smart System. It works together with the eBike Alarm and eBike Lock features in the eBike Flow app, and can only be used with those app features. Bosch notes that charges apply for some services; current details are shown in the eBike Flow app.

Compatibility & fit

For eBikes with the Bosch Smart System only; it does not suit Bosch eBike System 2 bikes with Intuvia, Kiox or Nyon (2021) displays. It is supplied without a mounting plate, which is bike-specific. Bosch requires the ConnectModule to be installed by a certified Bosch dealer: fitting is a separate Tune Cycles workshop service, so book a workshop service and we'll confirm the right mounting parts for your frame.

This genuine Bosch eBike Systems part is covered by the manufacturer's warranty against defects in materials and workmanship. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • Genuine Bosch eBike Systems part for the Bosch Smart System
  • GNSS location tracking via the eBike Flow app
  • Movement detection with on-bike alarm
  • Internal 650 mAh backup battery
  • LTE Cat-M1 mobile connectivity
  • Supplied without mounting plate; dealer installation required
SpecificationDetails
BrandBosch eBike Systems

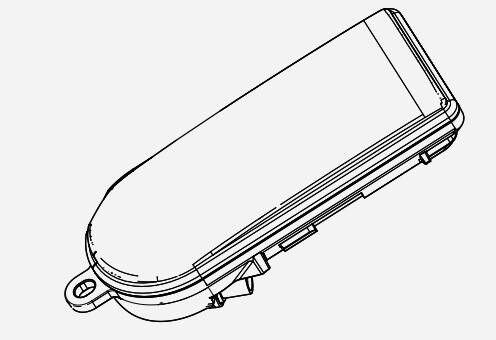

ModelConnectModule (BCM3100)
Bosch part numberEB1310000B
SystemBosch Smart System
AppBosch eBike Flow
Internal battery4.35 V, 650 mAh
Mobile networkLTE Cat-M1
Operating temperature-5 to 40 °C
Protection ratingIP54
In the boxConnectModule, operating and installation instructions (mounting plate not included)
SKU BSP-BOS-EB1310000B
Brand Bosch
